Summary of Contents for RF-Tuote CC-32

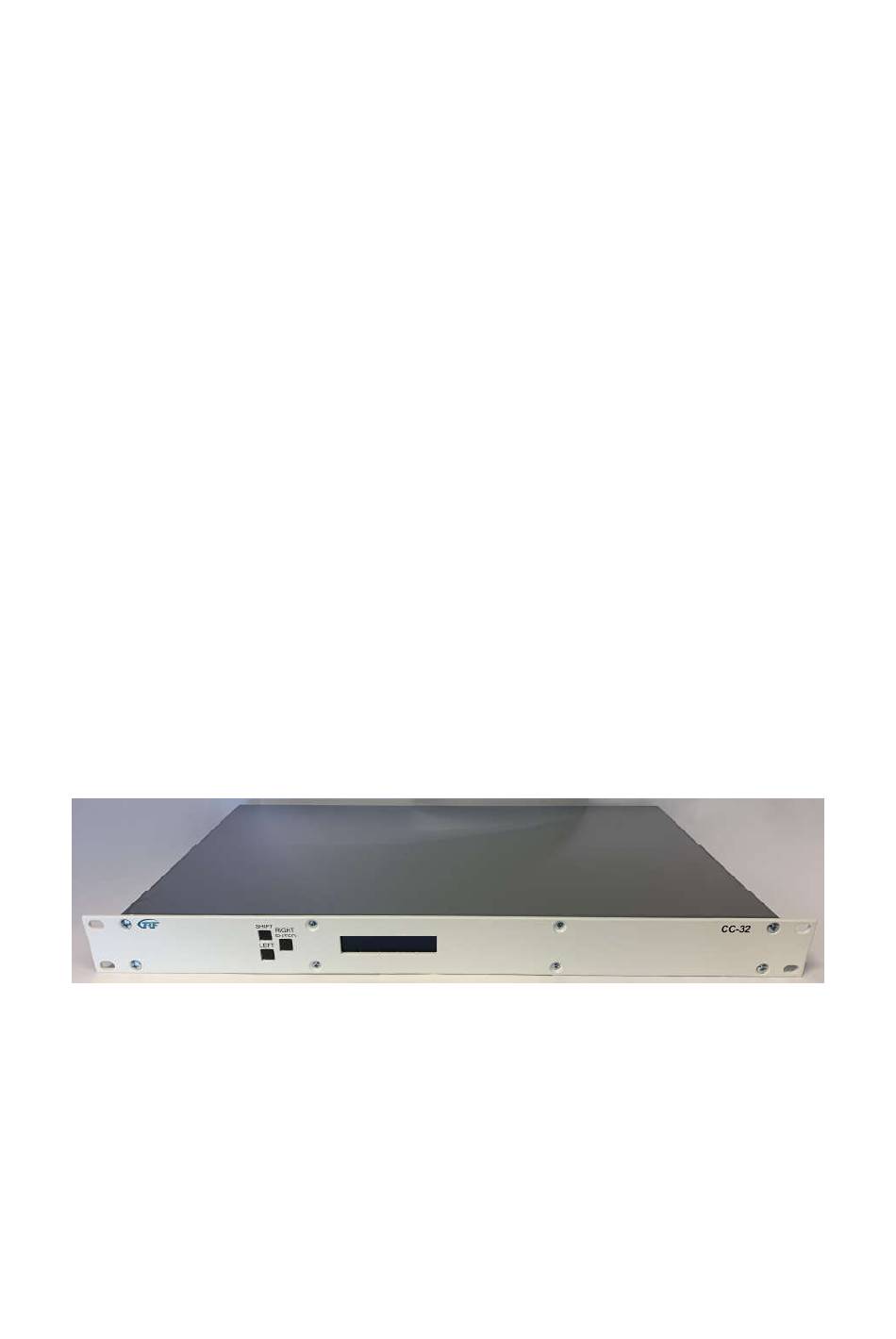

- Page 1 USER MANUAL CC-32 PROGRAMMABLE DVB-T2 DIGITAL CHANNEL CONVERTER/AMPLIFIER in 19” 1RU...
-
Page 2: Main Features
Description: DIGITAL CHANNELCONVERTER / AMPLIFIER: RF presents the new programmable channel converter & amplifier developed with state-of-the-art digital filtering technology. CC-32 model incorporates 32 ultra-selective digital filters which enable the selection, filtering and amplification of each digital multiplex, guaranteeing the optimal output level for each type of installation - whether individual or collective - and a very high quality output. -
Page 3: Connections And Interfaces
CONNECTIONS AND INTERFACES: 1.-VHF-UHF 1 Input 2.-VHF-UHF 2 Input 3.-DAB or VHF- UHF3, inputs, selectable 4.- FM input 5.-Test output - 30dB 6.-RF output 7.-VAC 230V input 9 11 8.-Earthing connection points 9.- SHIFT button 10.- LEFT button 11.- RIGHT/ENTER button 12.-2x16 character display... - Page 4 NOTE: RF-Tuote Oy is recommending to used manual FILTER ADDing method with manual IN and OUT channel setting when CC-32 is used as DVB-T2 channel converter only. Please see page 7. The keyboard of this equipment consists of three buttons: SHIFT, LEFT and RIGHT/ENTER.
-
Page 5: Equipment Configuration
Equipment Configuration: SMARTHANDY 4> SW version of the system. Press SHIFT. [V3.7] <FILTERS MENU> Filter configuration. Press SHIFT to enter, ◀▶ to move between options and SHIFT to enter the option. LTE FILTER> <FILTER AUTO ADD> <FILTER ADD > < FILTER EDIT>< FILTER DELETE >... -
Page 6: Filter Menu
1.-Filter Menu: <FILTER MENU> LTE FILTERS> Allows you to modify the LTE, LTE2 filter or not have either asset. Press SHIFT, and hold down; select [OFF]> <[LTE]> <[LTE2]> with ◀▶. Releasing SHIFT will automatically select the selected option. FILTER AUTO ADD> Automatic MUX search and automatic filter configuration. - Page 7 <FILTER MENU> <FILTER ADD> Allows the manual addition of filters and/or output channel change (Channel Conversion). Press SHIFT, and press and hold down; select [YES]> <NO] using ◀▶. When SHIFT is released, the selected option is automatically selected. [SI] accesses the menu, [NO] remains in <ADD FILTERS> FILTER ADD INPUT selection.
- Page 8 <FILTER MENU> <FILTER EDIT> Allows for a manual filter edit Press SHIFT, and press and hold down; select [BACK]> <[1:5>5]>… using ◀▶. When SHIFT is released, the selected option is automatically selected. [BACK]> remains in <EDIT FILTER> if not, select the filter to be changed. FILTER EDIT Modify Input.
- Page 9 <FILTER MENU> <.FILTER DELETE> Allows deleting a specific filter Press SHIFT, and press and hold down; select [BACK]> <[1:5>5]>… using ◀▶. When SHIFT is released, the selected option is automatically selected. [BACK]> remains in <CANCEL FILTER> if not, select the filter to be deleted. <FILTER MENU>...
-
Page 10: Power Supply Menu
2.-Power Supply Menu: <POWER SUPPLY MENU> <IN 1 POWER> Enable/disable input 1 power supply Press SHIFT, and press and hold down; select [OFF]> <[ON] using ◀▶ When SHIFT is released, the selected option is automatically selected. < IN 2 POWER > Enable/disable input 2 power supply Press SHIFT, and press and hold down;... -
Page 11: Miscellaneous Menu
3.-Miscellaneous Menu: <MISCELLANEOUS MENU> LANGUAGE> Change language Press SHIFT, and press and hold down; select [ENGLISH]> <[FRENCH]> <SPANISH> <ITALIAN> using ◀▶. When SHIFT is released, the selected option will be automatically selected. <DEFAULT VALUE.> Default values reset Press SHIFT, and press and hold down; select [CANCEL]> <[EUROPE]> <BRAZIL>... -
Page 12: Factory Reset
(*) An already existing output channel cannot be selected. (***) The same input channel can be selected ONLY if it is from a different input. (**) The equipment calculates the maximum output level available according to the number of channels. The introduced level can only be decreased. FACTORY RESET In case the control unit has a PIN and the user does not know the PIN , it is possible to reconfigure the control unit if we perform a factory reset.
