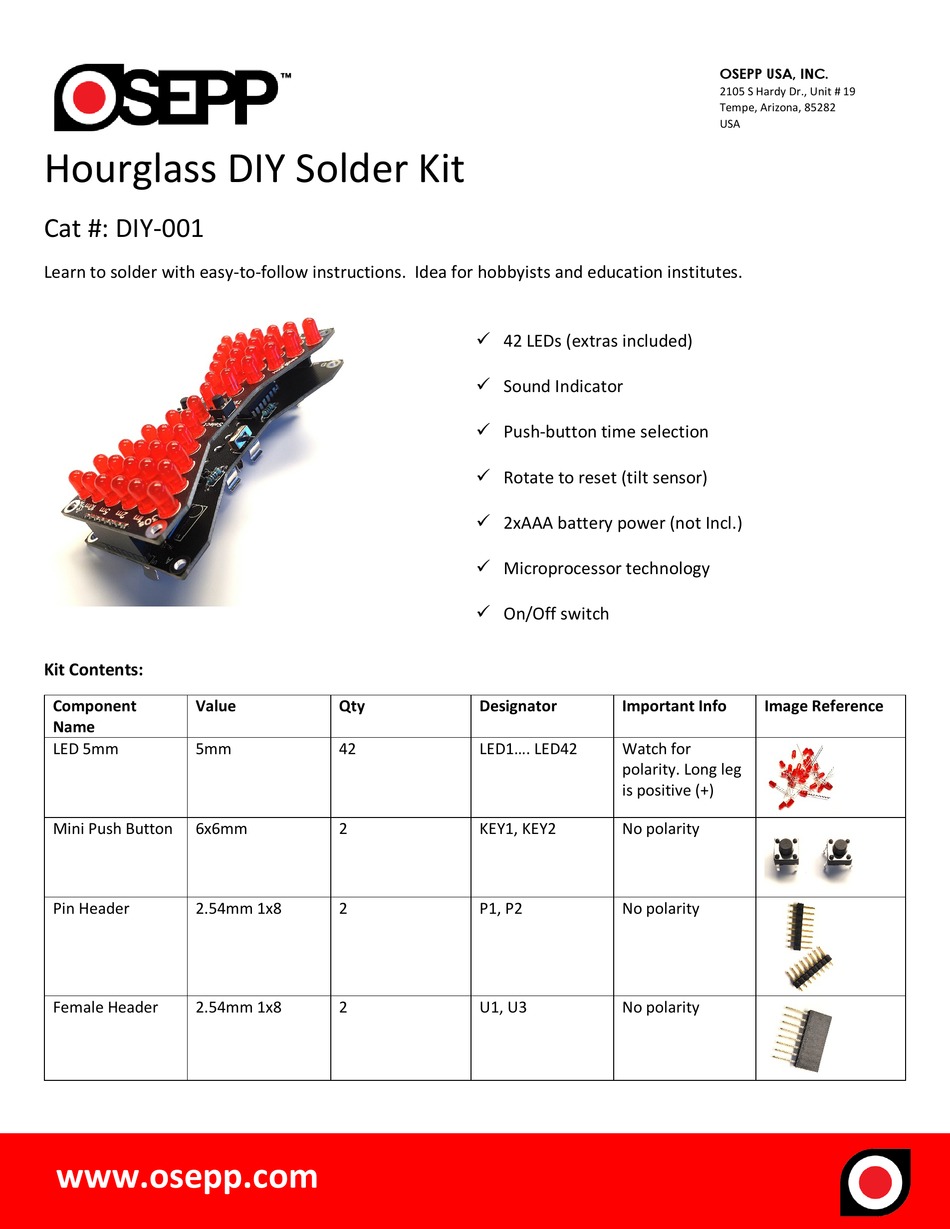

Hourglass DIY Solder Kit
Cat #: DIY-001
Learn to solder with easy-to-follow instructions. Idea for hobbyists and education institutes.
Kit Contents:
Component
Value
Name
LED 5mm
5mm
Mini Push Button
6x6mm
Pin Header
2.54mm 1x8
Female Header
2.54mm 1x8
www.osepp.com
42 LEDs (extras included)
Sound Indicator
Push-button time selection
Rotate to reset (tilt sensor)
2xAAA battery power (not Incl.)
Microprocessor technology
On/Off switch
Qty
Designator
42
LED1.... LED42
2
KEY1, KEY2
2
P1, P2
2
U1, U3
OSEPP USA, INC.
2105 S Hardy Dr., Unit # 19
Tempe, Arizona, 85282
USA
Important Info
Image Reference
Watch for
polarity. Long leg
is positive (+)
No polarity
No polarity
No polarity
