ETFE Solar Module - User Manual

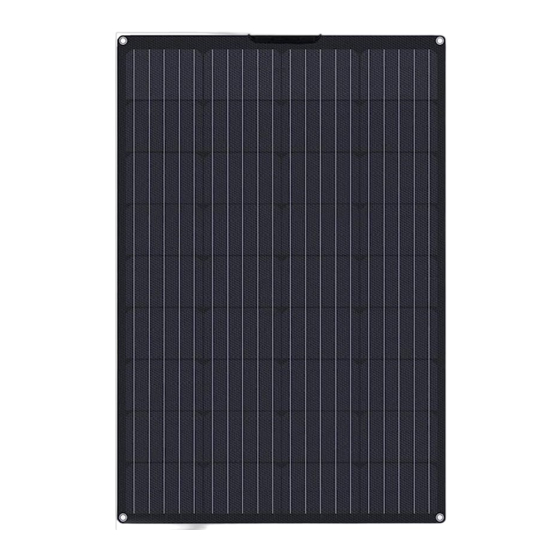

1. INFORMATION

These Flexible panels are designed to withstand the harshest environments from -30 to +50 degrees.
The top surface is made from ETFE, which is particularly resistant to damage, scratching and
delamination. The surface has a special self healing property if light scratching occurs. The cell circuit
is fully encapsulated in a watertight envelope and mounted on a powder coated aluminium sheet
providing strength and heat dissipation without magnetic interference.
This Flexible Solar Panel is NOT highly flexible. They are designed to fit flush to a surface with a
curve of no greater than 3 degrees or 3cm per 1m panel length.
Flexing and bending greater than this WILL cause micro cracks in the cell circuit resulting in premature
failure. In these circumstances the warranty provided with this product will be void.

2. INSTALLATION SAFETY

Before installing, wiring, operating, or Maintaining PV modules, you should read the manual and
understand all safety precautions. Direct current (DC) is generated when the surface of the module is
exposed to direct sunlight or other lights sources, and direct contact with the live parts of the module,
such as terminals, may result in an electric shock whether connected to the module or not. We
recommend that PV module installation is conducted by personnel with experience in PV system
installation.
• Do not install a solar panel with damaged surface or damaged backsheet.
• Do not fit to a ribbed surface unless mounting on a board first.
• Always handle the solar panel with care, and preferably with two people .
• Do not artificially focus light on the solar panel.
• Wear soft soled shoes if walking on the solar panel, but avoid where ever possible.
• Do not drop solar panel or allow objects to fall down on the solar panel .
• Do not damage or scratch the front or backside surfaces of the solar panel .
• Do not scratch the cabling or bend with force .
• Do not install or handle solar panel when they are wet or during periods of high wind . When
installing, take care to keep modules and in particular their electrical contacts, clean and dry before
installation.
• Do not touch the terminal box or the ends of the output cables (connectors) with bare hands when in
sunlight, regardless of whether the PV module is connected to or disconnected from the system .
• Do not attempt to increase solar panel output by concentrating light on its surface with mirrors.
• Do not expose the solar panel to corrosive liquid or gas.
• When mounting solar panel at a height adhere to all relevant safety regulations.
• Be sure to use components (cables, fuses, etc) with ratings greater than 25% of solar panel/s
maximum current ratings.
