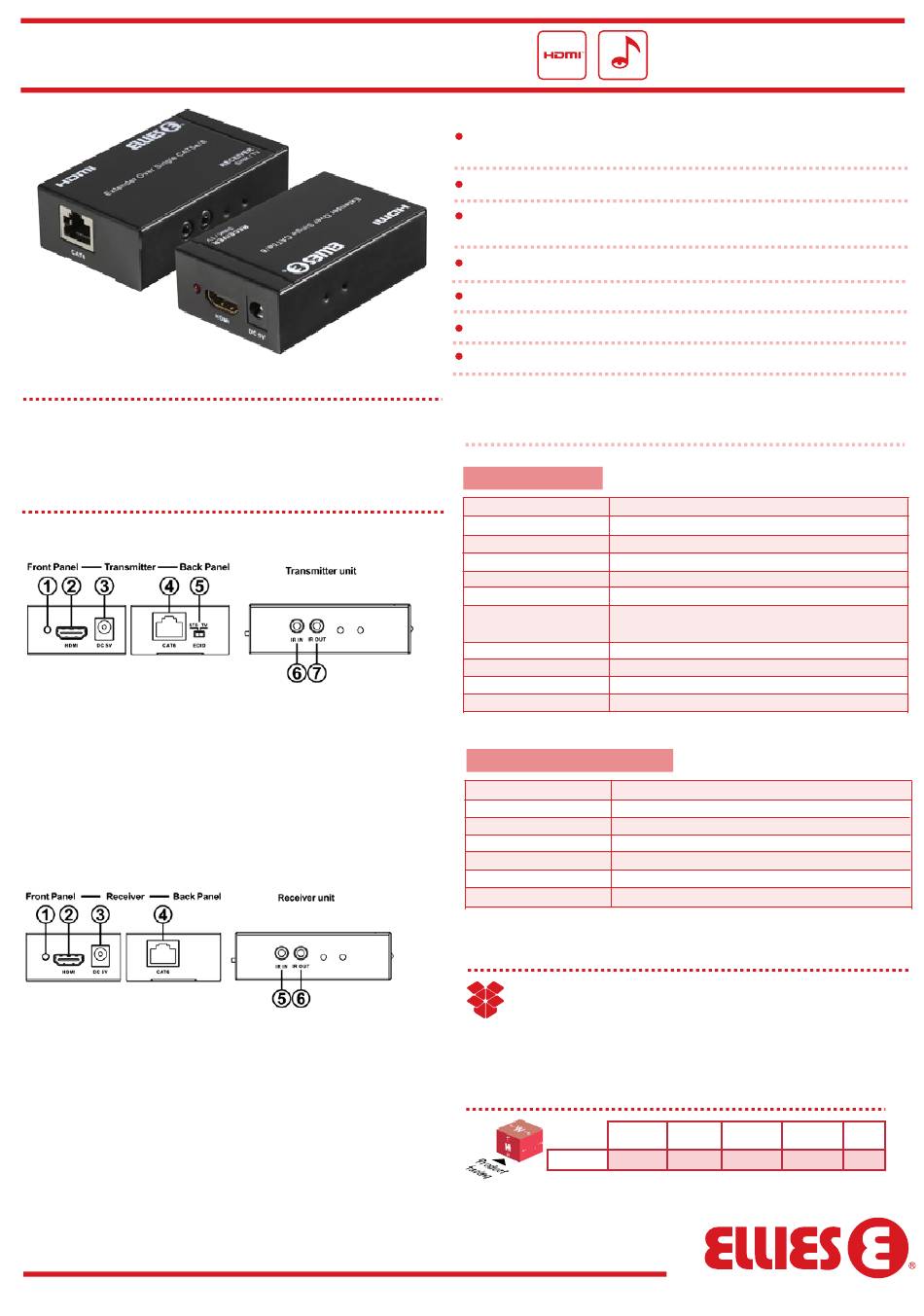

Ellies BPHDMICK2 Manual

HDMI Extender - Single CAT5e/6
Cable with Dual IR Control
H D
M I
HDMI Extender - Single CAT5e/6
The HDMI Extender allows HDMI Audio/Video and IR signals to
be transmitted over a single Cat5e/6 shielded cable.
Diagram
Panel Descriptions Transmitting Unit
POWER
1. Power LED: This LED will illuminate when the device is connected with power supply.
2. HDMI IN: This slot is where you connect the HDMI output port of your source equipment
such as DVD/Blu-ray players or Set-Top-Box with an HDMI cable.
3. DC 5V: Connect from 5V DC power supply into the unit and connect the adaptor to an
AC outlet.
4. CAT5e/6: Connect the CAT5e/6 output of the transmitter with the CAT5e/6 input of the
receiver with Cat5e/6 cable.
5. EDID: The Extender can switch STD EDID mode(1080p60,2CH audio) or copy TV EDID
information to HDMI source.
6. IR IN: Connect to the IR Receiver for IR signal reception.
Ensure that remote being used is within the direct line-of-sight of the IR receiver
7. IR OUT: Connect the IR Transmitter cable included in the package for IR signal transmission.
Pace the IR Transmitter in direct line-of-sight of the equipment to be controlled
Panel Descriptions Receiver Unit
HDMI
1. HDMI LED: This LED will illuminate when the HDMI signal from the transmitter is stable.
2. HDMI OUT: This slot is to connect the HDMI input port of your display such as an HDTV.
3. DC 5V: Connect from 5V DC power supply into the unit and connect the adaptor
to an AC outlet.
4. CAT5e/6: Connect the CAT5e/6 input of the receiver with the CAT5e/6 output of the
transmitter with Cat5e/6 shielded cable.
5. IR IN: Connect to the IR Receiver for IR signal reception. Ensure that remote being used
is within the direct line-of-sight of the IR receiver.
6. IR OUT: Connect the IR Transmitter cable included in the package for IR signal
transmission. Place the IR Transmitter in direct line-of-sight of the equipment
to be controlled.
Turn over for the connection diagram
AV SOLUTIONS
Bi-directional IR system allowing for control of source or
display (IR accessories included).
Smart EDID management.
Transmission Range: Extends 1080p resolution up to 50m over
a single Cat5e/6 cable.
Works with HDMI and HDCP compliant devices.
Supports up to 1080p High Definition resolution.
Compact design for an easy and flexible installation.
IR BI directional and loop through.
TECHNICAL INFORMATION
Specifications:
Video Bandwidth: Single-link 165Mhz [ 4.95Gbps]
480i/480p/720p/1080i/1080p @60Hz
Video Support:
Audio Support: Surround Sound (up to 7.1ch) or stereo digital audio
Transmission Range: HD [1080p 24-bit color] – up to 50m Cat5e/6 cable
3.3 volts
Input TMDS Signal:
Input DDC Signal: 5.0 volts/P-P
Human Body model: +/- 8 kV (air-gap discharge) +/- 4 kV
ESD Protection:
(contact discharge)
PCB stack-up: 4 layouts
Type A 19 pin female
HDMI connector:
RJ-45 connector: WE/SS 8P8C
3.5mm connector: (TX and RX) IR Receiver/IR Blaster
Mechanical Specifications:
Housing: Metal enclosure
Power Supply: 5V DC
2 pin Euro plug
AC Power Adaptor
Power consumption: 2.5 watts (TX); 1.2 watts (RX)
Operation temperature: 0°C to 40 °C
-20°C to 60 °C
Storage temperature:
Relative humidity: 20~90 % RH (no condensation)
THE PACKAGE CONTAINS
1 x Transmitter
1 x Receiver
1 x Wide band IR TX cable
1 x Wide band IR RX cable
PACKAGE DIMENSIONS
Height
(mm)
D
Package 59
www.ellies.co.za
Product Code: BPHDMICK2
Barcode: 600284406 4853
1 x Power Supply
1 x User Manual
Depth Width Weight
(mm) (mm) (kg)
150 215 0.46
QTY
1
