OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST
Advertisement
Summary of Contents for XtremepowerUS 75129

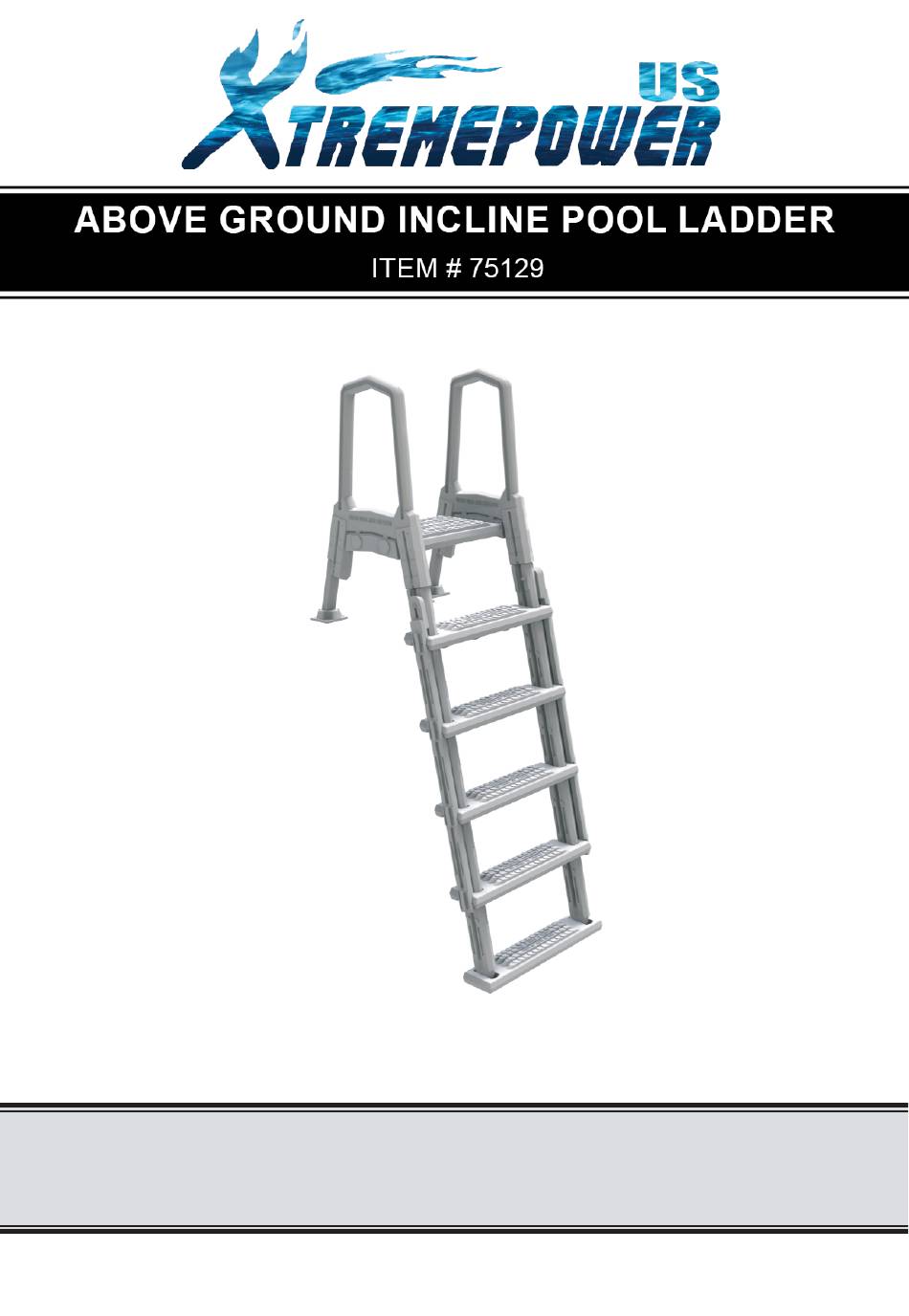

- Page 1 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER). FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST...

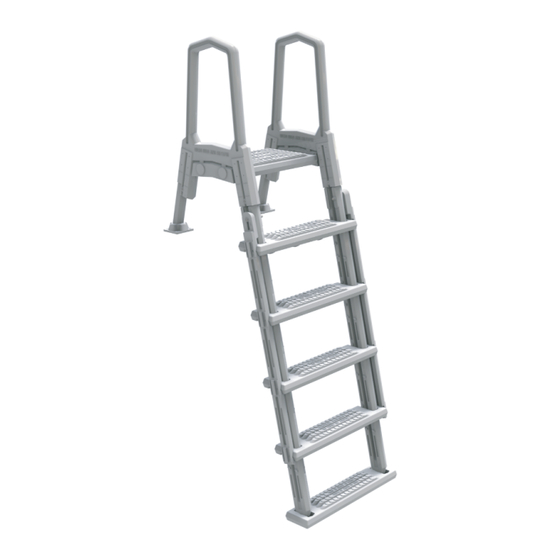

- Page 3 54". When the swimming pool is not in use, the external ladder can be swung up and fixed to prevent children from accidentally entering. 75136 Internal Ladder 75129 External Ladder (sold seperately) Warning and Cautions Locate ladder on a solid base.
- Page 4 Remove the A-Frame ladder and its accessories from the box and check whether all the accessories are complete. First place the bottom tread on a flat surface with the grooved side facing up; then snap the two holders into the groove. Note: The two holders need to be snapped into the groove in the same direction. Holder 3.
- Page 5 5. Use # 10x1-1 / 4 screws to fix other three treads. Then put aside for later. Fix the treads to the left and right fixing strips with screws. Tighten with two screws for both sides 6. Assemble handrails to the platform, center cover cap opening on side of handrail where platform was just attached.
- Page 6 9. Slip mounting block all the way down over the nubs on the tube. Mounting Block Adjustable Tube 10. Fix the adjustable tube sets to the deck platform handrail with 10x1-1/4# Screw 11. Put the connector to the handrails of the 75136 internal ladder Connector 75136 Internal Ladder 12.
- Page 7 #10x1-1/4 screw as well. Fix the assembly to the top tread Screw 13. Fix the mounting block to the top tread by #10x1-1/4 screws Routine Maintenance When the swimming pool is not in use, it is recommended to flip the outer ladder upwards, then push it down and fix it.
-
Page 8: Specification
Winterization 1. In winter, the ladder must be removed. 2. When removing the ladder, it is recommended to wash the ladder with fresh water to remove the chemicals on the surface. 3. Store the ladder in a warm and dry place for reuse in the next year. 4. - Page 9 Product Explosion Diagram and Accessaries Part Number Description 71550 1 Handrail 47155012 Connector 48850112 Cover Cap 48850202 Tube 48850201 Mounting Block 47155011 Deck Platform 47155007 Right Fixing Strip 47155005 Holder 47155008 Bottom Tread 47155002 Tread 47155006 Left Fixing Strip...
