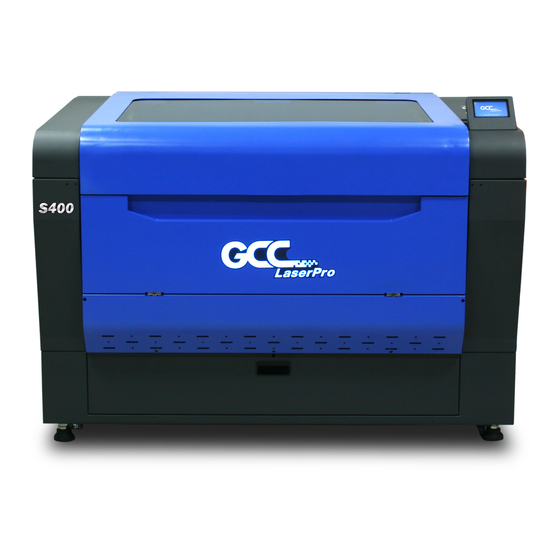

- Page 1 12V_24V External I/O board Installation Guide S400 Distributed by: Jorlink USA, Inc. | Tel.: (336) 288-1613 | support@jorlink.com | www.JORLINK.com...
- Page 2 June 28-2019, Version: 1.0 The parts for 12v_24v external I/O board have items below: Notice: LGCC-290115510G S400 12v_24v External I/O board upgrade kit part number is Distributed by: Jorlink USA, Inc. | Tel.: (336) 288-1613 | support@jorlink.com | www.JORLINK.com...
-
Page 3: Installation
AC cable (item #6) to the right side of power supply (AC side, see the green circles below). Open S400 main board side cover and mount the 24v power supply and bracket on the position below. The 2 red circles below are to show the mounting position(two pictures below show the same position, the left picture is from a longer distance and right picture is from a closer distance). - Page 4 Version: 1.0 Mount the wiring pcb (item #3) on top of bracket (item #2) by using 4 screws (item #4, see 4 red circles below for the screw positions). Connect the JP33 signal cable (item #9, see the yellow circle below) The other side of JP33 signal cable (item #9) connect to main board(see the yellow circle below) Distributed by: Jorlink USA, Inc.
- Page 5 Version: 1.0 The 24v power cable (item #7) connects to the position below. The two yellow circles are the both side of 24v power cable (item #7). If user need to use 12v power, then change from 24v power cable (item #7) to be 12v power cable (item #8) and connect to the positions below (the 2 yellow circles point the both sides of 12v power cable) Distributed by: Jorlink USA, Inc.
- Page 6 Version: 1.0 The one side of AC power cable (item #6) connects to 24v power supply (the red circle below). The other side of AC power cable (item #6) parallel connects to laser power supply AC (The two red circles below are the same position. One picture is from a longer distance, one picture is a closer distance).
- Page 7 Version: 1.0 Remote Interlock Control Connection for 5272 mainboard Connect the cable from JP24 to the JP33 on the mainboard Connect the cable from JP43 JP34 on the mainboard We can connect the 12V power to the power supply on the laser engraver as show Distributed by: Jorlink USA, Inc.
- Page 8 Version: 1.0 The External Control Interface Board can be set to work with 5V or 12V signals Set the jumpers to 5V or 12V accordingly in order to switch between 5V and 12V signals. External Control Interface definitions: Output 1: Normal low, On=High (In the duration of a job the signal is high) Output 2: Normal High, On=Low (When Stop button is pressed, signal = low, when processing job is finish, signal = high) Adjust the jumper on To set the Output voltage...
- Page 9 Version: 1.0 External Control Interface definitions: Input 1: Laser On/Off (Disables/enables laser signal) Laser turns off if a hi signal is provided Input 2: Start/Stop (Triggers the Start/Stop function) Start Control Modes Switch mode To use under Switch mode, we need to set the jumpers as follow: Set the jumper of JP8&JP9 to the 1-2 position Set the jumper of JP4&JP5 to the 1-2 position Distributed by: Jorlink USA, Inc.
- Page 10 Version: 1.0 External Control Interface definitions: Under Switch mode: Input I/O & GND Input 1: Normal Open = Laser ON; Close = Laser OFF Input 2: Close = Start/Stop (Triggers the Start/Stop function) Start Control Modes Electronic Control mode To use under Electronic Control mode, we need to set the jumpers as follow: Set the jumper of JP8 &...
- Page 11 Version: 1.0 External Control Interface definitions: Under Electronic Control mode: Input I/O & GND (5V/12V) Input 1: High = Laser Off Low = Laser On Input 2: Activates Start/Stop Distributed by: Jorlink USA, Inc. | Tel.: (336) 288-1613 | support@jorlink.com | www.JORLINK.com...
