  • Page 1 MVC-BYOD-Extender English | 简体中文 | Deutsch | Français | Español Quick Start Guide (V1.0)
  • Page 3 Table of Contents English..............1 简体中文 ..............3 Deutsch.............5 Français............7 Español............9...
  • Page 5: Package Contents

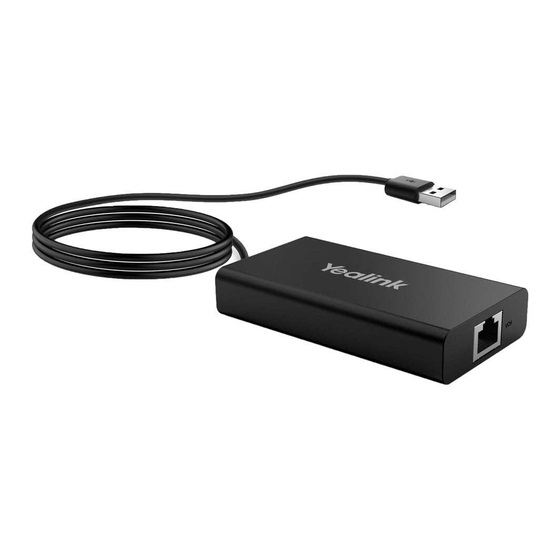

    Package Contents MVC-BYOD-Extender 7.5m Ethernet Cable 3M Velcro×2 Quick Start (with 1.5m USB Cable) Guide Installation 1. Stick the velcros on the back of MVC-BYOD-Extender. 2. Put the MVC-BYOD-Extender on the surface such as table, wall and so on.
  • Page 6 Connection Step1: Connect to the UVC camera • Connect directly to the UVC • Connect to the UVC camera via PoE switch (UVC84) camera (UVC40) VC Hub/Phone IEEE 802.3af compliant port on UVC PoE Switch Camera VC Hub/Phone port on UVC Camera Step2: Connect to the PC 1.5m USB Cable...
  • Page 7 简 包装清单 体 中 文 MVC-BYOD-Extender 3M 魔术贴 ×2 快速入门指南 7.5 米网线 ( 带 1.5 米 USB 线 ) 安装部署 1. 将魔术贴贴在 MVC-BYOD-Extender 的背面。 2. 将 MVC-BYOD-Extender 放置在平面上。...
  • Page 8 简 连接方式 体 步骤 1:连接至 UVC 摄像机 中 • 直接连接至 UVC 设备 (UVC40) • 通过交换机连接至 UVC 设备 (UVC84) 文 IEEE 802.3af 标准 PoE VC Hub/ 交换机 Phone 口 VC Hub/ Phone 口 步骤 2:连接 PC 1.5 米 USB 线...
  • Page 9: Montage

    Verpackungsinhalt MVC-BYOD-Extender 7,5m Ethernet-Kabel Kurzanleitung (mit 1,5 m USB-Kabel) Klettverschluss×2 Montage 1. Befestigen Sie das Klettband an der Rückseite des MVC- BYOD-Extenders. 2. Platzieren Sie den MVC-BYOD-Extender auf einer Oberfläche, wie einem Tisch, einer Wand, etc.
  • Page 10 Verbindung Schritt 1: Stellen Sie einen Anschluss zur UVC-Kamera her • Über PoE-Switch mit der UVC-Kamera verbinden • Stellen Sie einen direkten Anschluss zur (UVC84) UVC-Kamera her (UVC40) VC Hub/ IEEE 802.3af-konform Telefon-Port an PoE Hub/Switch UVC-Kamera VC Hub/Telefon-Port an UVC-Kamera Schritt 2: Verbinden mit PC 1,5 m USB-Kabel...
  • Page 11: Contenu De La Boîte

    Contenu de la boîte Ç MVC-BYOD-Extender Guide de Câble Ethernet 7,5m Velcro 3M ×2 (avec câble USB de 1,5 m) démarrage rapide Installation 1. Collez les fixations Velcro à l'arrière de l'extenseur BYOD MVC. 2. Placez l'extenseur BYOD MVC sur la surface (table, mur,...
  • Page 12 Connexion Étape 1 : Connecter à la caméra UVC Ç • Connecter directement à la • Connecter à la caméra UVC via un commutateur PoE (UVC84) caméra UVC (UVC40) Hub/Interrupteur PoE Port hub VC/ conforme à la norme IEEE téléphone sur 802.3af caméra UVC Port hub VC/...
  • Page 13: Contenido De La Caja

    Cable Ethernet de Velcro 3M ×2 Guía de inicio (Con cable USB de 1,5 m) 7.5m rápido Instalación 1. Pegue los velcros en la parte posterior del MVC-BYOD- Extender. 2. Coloque el MVC-BYOD-Extender en una superficie como mesa, pared, etc.
  • Page 14 Conexión Paso 1: Conectar a la cámara UVC Ñ • Conectar directamente a la • Conectar a la cámara UVC a través del interruptor PoE (UVC84) cámara UVC(UVC40) Puerto VC Hub Switch PoE conforme a / Phone en la IEEE 802.3af cámara UVC Puerto VC Hub / Phone en la cámara...
  • Page 15: Declaration Of Conformity

    YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD Address: 309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R.C Manufacturer: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD Address: 309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R.C DATE: 10...
  • Page 16 As one of the best providers in more than 140 countries and regions, Yealink ranks No.1 in the global market share of SIP phone shipments (Global IP Desktop Phone Growth Excellence Leadership Award Report, Frost &...
