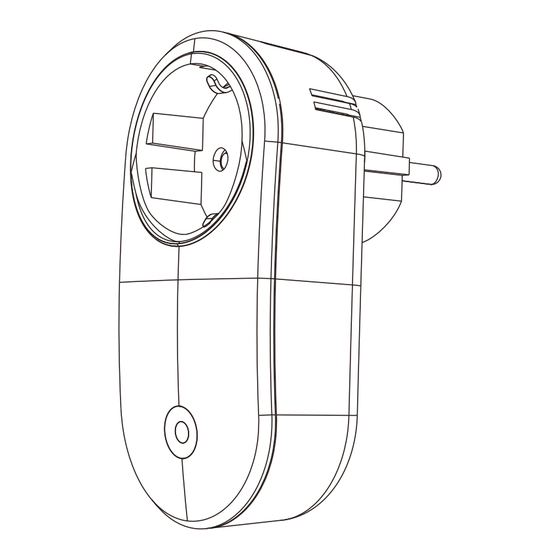

Smart plug

Advertisement

Quick Links

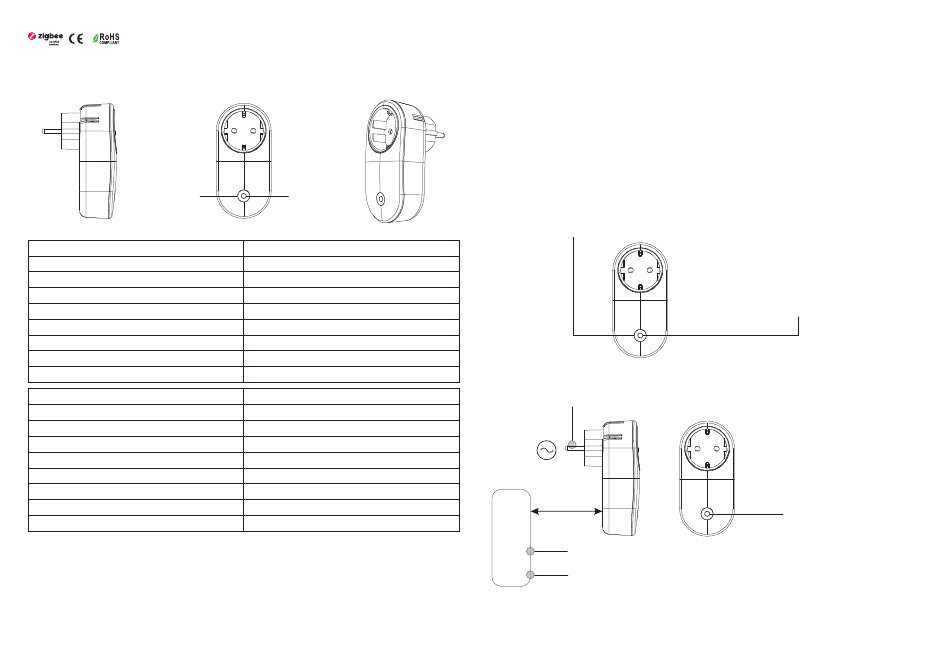

Zigbee Smart Plug
Important: Read All Instructions Prior to Installation
Function introduction
Program button,
short press to
switch on/off load
Product Data
Zigbee profile
Device ID
Radio Frequency
Input Voltage
Max. Load
Over Current Protection
Operating temperature
Relative humidity
Dimensions
LED Indicator State
Flashes red slowly
Stays solid orange
Stays solid yellow
Stays solid green
Stays solid cyan
Stays solid blue
Flashes purple slowly
Stays solid white at a low brightness
• ZigBee smart plug based on latest ZigBee 3.0 protocol
• Enables to control ON/OFF of the load, supports max. 16 scenes
• ZigBee end device that supports Touchlink commissioning
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power switches
• Supports temperature measurement
• Supports over current protection and power metering, enables to report power consumption to gateway
• Waterproof grade: IP20
70110005
LED indicator
0x0104(ZHA)
0x000A(Plug-in Unit)
2.4GHz
AC200-240V, 50/60Hz
16A
16.1A
0 to 40°C
8% to 80%
114.8×54.8×74.7(mm)
Definition (16.1A Over Current)
Over current
Load power > 2200W
Load power 2001-2200W
Load power 1501-2000W
Load power 1001-1500W
Load power <= 1000W
Firmware updating via OTA
Load switched off
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Operation
1.Plug the smart plug into AC power source.
2.This ZigBee device is a wireless receiver that communicates with a variety of ZigBee compatible
systems. This receiver receives and is controlled by wireless radio signals from the compatible ZigBee
system.
3. Zigbee Network Pairing through Coordinator or Hub (Added to a Zigbee Network)
Step 1: Remove the device from previous zigbee network if it has already been added to, otherwise pairing will
fail. Please refer to the part "Factory Reset Manually".
Step 2: From your ZigBee Controller or hub interface, choose to add lighting device and enter Pairing mode as
instructed by the controller.
Step 3: Short press "Program" button 5 times continuously to set the device to network pairing mode, LED
indicator will flash white fast.
4. TouchLink to a Zigbee Remote
Step 1: Short press "Prog" button 4 times (Or re-power on the device 4 times) to start Touchlink commissioning,
180S timeout. Once timeout, repeat the operation.
AC Power
50/60Hz
< 10cm
Zigbee
Remote
Step 2: Bring the remote or touch panel within 10cm of the lighting device.
Step 3: Set the remote or touch panel into Touchlink commissioning,
please refer to corresponding remote or touch panel manual to learn how .
Note: 1) Directly TouchLink (both not added to a ZigBee network), each device can link with 1 remote.
2) TouchLink after both added to a ZigBee network, each device can link with max. 30 remotes.
3) To control by both gateway and remote, add remote and device to network first then TouchLink.
4) After TouchLink, the device can be controlled by the linked remotes.
Step 4: LED indicator will flash white 6 times to
indicate successful pairing. LED indicator will
maintain the status before entering into network
pairing mode if pairing fails.
Step 4: There shall be indication
on the remote for successful link
and LED indicator of the plug will
flash white twice.
