Aluratek AHDDU100F Product Reference Card

AHDDU100F_ Product Reference Card

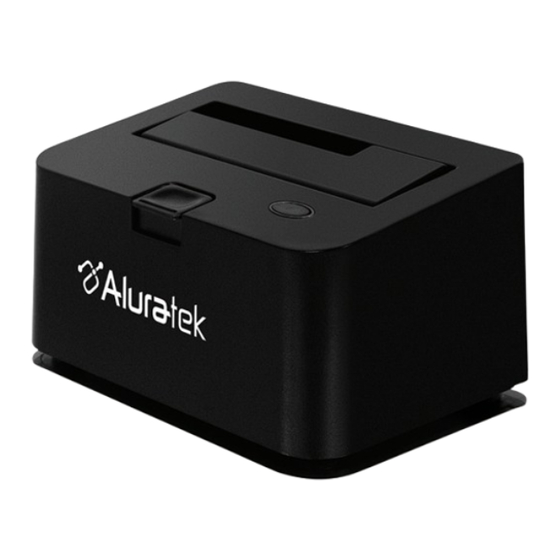

USB 2.0 2.5" / 3.5" SATA Hard Drive
Docking Enclosure
Easily Transfer data between your SATA hard drive and your computer
Features
• Turn your bare SATA drive into an external hard drive
effortlessly
• No screws or ribbons / cables to connect
• The docking enclosure keeps your drive ultra cool for
increased life expectancy
• High-Speed USB 2.0 w/ data transfer rate up to 480 Mbps
• Transfer data between your SATA hard drive and
your computer
• Backward compatible with USB 1.1 specification
• Compact design is perfect for mobile/IT professional
• Compatible with all 2.5" and 3.5" SATA I/II Hard Drives
• Plug-n-Play, Hot swappable, and Hot pluggable
• Limited 1 Year Warranty
4 5 6
B
SATA connector / dock slot
1
HDD release button
2
LED
3
Power switch
4
Power adapter port
5
USB port
6
A Insert either a 2.5" or 3.5" hard drive B Connect the USB cable to your
into the dock slot computer to transfer data
Specifications
Cable (1) x 6' USB Type A - B Cable (1.8m)
Capacity all 2.5" & 3.5" SATA I / II hard drives
Connector (1) x USB Type-B
Housing Plastic
LED's (1) x Blue
Operating Humidity 10% to 85%, non-condensing
Operating Temperature 0°C~40°C (32°F~104°F)
Power Adapter 12V 2A
Storage Humidity 5% to 90%, non-condensing
Storage Temperature -20°C~60°C (-4°F~140°F)
Transfer Rate 480 Mbps
Unit Dimensions (L x W x H) 5.25 in. (13.3 cm), 3.5 in. (8.9 cm),
2.75 in. (7 cm)
Unit Weight 9.6 oz. (0.27 kg)
USB Specification USB 1.1 and 2.0 compliant
aluratek.com
A
1
2
3
C
C Push the button to release the
HDD from the dock
Requirements
• Windows 2000, XP & Vista
• Mac OS 10.3 or later
• Available USB port
Package Contents
• HDD Docking Enclosure
• USB 2.0 Cable (Type A to B)
• Power Adapter
• Quick Start Guide
• Warranty / Registration Card
