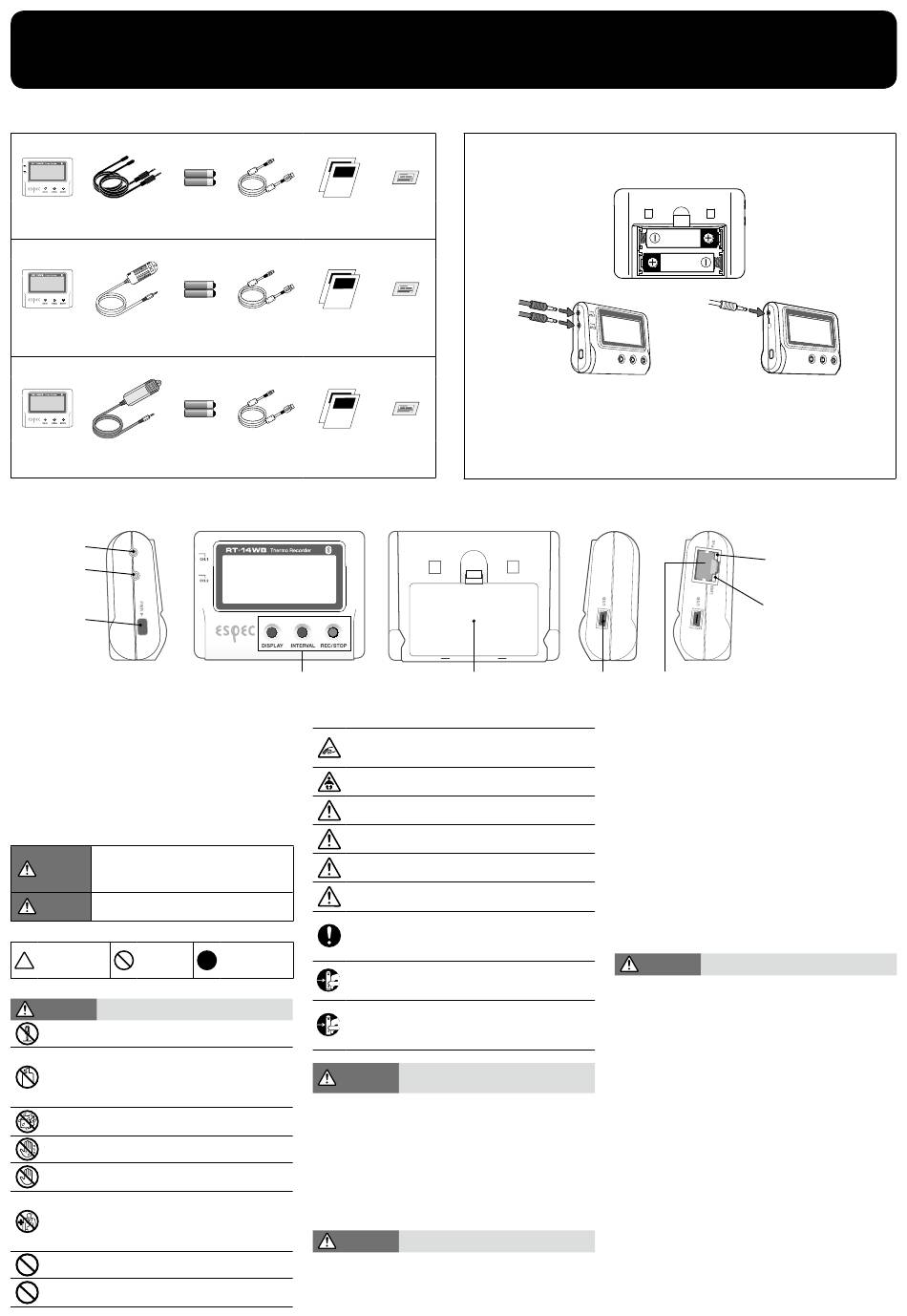

ESPEC RT-14WB Quick Start Manual

Package Contents

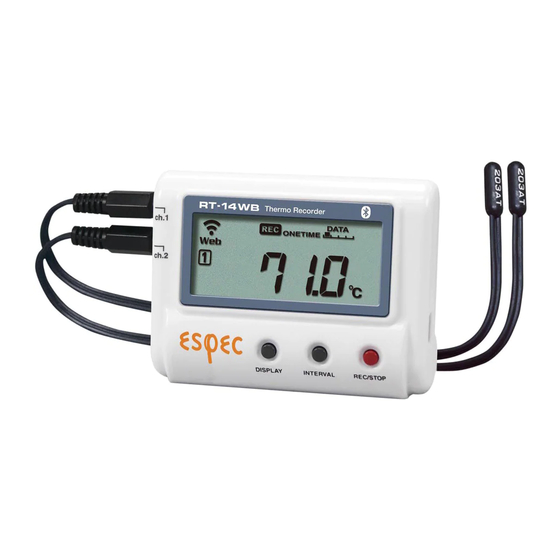

RT-14WB/14N Temperature 2ch
thermo recorder Temperature Sensor AA Alkaline
RTH-1010 x 2
RS-14WB/14N Temperature 1ch, Humidity 1ch
thermo recorder Temperature-Humidity AA Alkaline
Sensor RSH-4010
RS-14WBH/14NH Temperature 1ch, Humidity 1ch (High-Precision Type)
thermo recorder High Precision AA Alkaline
Temperature-Humidity
Sensor RSH-3020
Part Names
Sensor Jack
Channel 1
Sensor Jack
Channel 2
(RT-14WB/14N only)
Power Button
• The Introductory Manual also explains operations using the operation buttons.
Safety Precautions and Instructions
The following items should be strictly obeyed for the safe
usage of this product, and for protecting yourself and other
people from bodily harm and/or damage to property.
Explanation of Symbols
<Warning Symbols>
These entries are actions that absolutely under no
circumstance should be taken. The taking of such an
DANGER
action may cause serious personal physical damage
or death.
These entries are actions that if taken may lead to
CAUTION
physical injury or damage to persons or things.
<Picture Symbols>
Denotes an Denotes a
important warning forbidden
or caution. action.
DANGER To Prevent Serious Accidents
Do not disassemble, repair or modify the unit and/or accessories.
Do not use the unit in any environment that is exposed to
chemicals and harmful gases. Doing so may cause corrosion
and/or other danger to the unit. Also, coming in contact with
hazardous substances may cause bodily harm to the user or
people nearby.
This product is not water resistant. If water or a foreign object
enters the case, immediately remove batteries and stop using it.
Do not handle the unit, remove batteries or cables with wet hands.
Do not touch the unit or AC adaptor during thunder and lightning,
as this may cause electrocution.
This product has been designed for private and/or industrial
use only. It should not be used in situations where strict safety
precautions are necessary such as with medical equipment, or in
systems directly or indirectly connected with human life or well-
being.
Do not drop or expose the unit to a strong impact.
Do not cut or process the cords for the communication cables.
Also, do not twist, pull on or swing any of the cords.
Please Read First
USB Mini-B Cable Manual Set
Battery (RTH-9010) (Warranty Included)
(LR6) x 2
USB Mini-B Cable Manual Set
Battery (RTH-9010) (Warranty Included)
(LR6) x 2
USB Mini-B Cable Manual Set
Battery (RTH-9010) (Warranty Included)
(LR6) x 2
Operation Buttons
To prevent damage to the unit from static electricity, remove static
electricity from your body by touching metal around you (such as
a door knob and window frame) before touching the unit.
Place and store the unit and accessories out of the reach of
children.
We are not responsible for any damage, malfunction or trouble,
whether direct or indirect, caused by the use of our product.
Do not use any battery, sensor, or cable other than those specified
by ESPEC MIC Corporation.
Do not put anything on top of the cable or the unit. This may
cause overheating.
Do not disconnect the USB cable during USB communication.
Doing so may cause adverse effects to the unit and/or PC.
Make sure that sensor and cable plugs are all inserted fully, so as
not to cause an improper connection. Also, when unplugging the
cable from the unit, do not pull the cord, but hold the connector to
Denotes an action
disconnect.
that should not be
If the unit produces heat, emits smoke or a strange smell, or
carried out.
makes unusual noise, immediately remove the batteries and stop
using it. Also, unplug the unit from the PC.
If the unit is not to be used for a long period of time, remove
batteries. Leaving batteries inside the unit may cause battery
leakage and malfunction. Install new batteries when starting or re-
starting to use a unit.
CAUTION
• Areas exposed to direct sunlight
• Areas subject to direct flames or heaters, as well as areas in which hot air
accumulates and creates extremely high temperatures
• Areas exposed to static electricity
• Areas exposed to strong magnetic fields
• Areas exposed to water leakage
• Areas subject to condensation or wet areas
• Areas exposed to excessive vibration
• Areas exposed to excessive smoke, dust or dirt.
CAUTION
• Use the unit in the specified operating environment. Do not use it for any
purpose other than for which it was designed.
• Condensation may occur inside the case when a unit is moved from one
environment to another where there is a great difference in temperature.
Getting Thermo Recorder Ready for Installation
Battery Installation
Make sure to use new batteries (including for replacement) and insert in the correct
direction.
Registration
Code Label
Sensor Connection
Registration
Code Label
About RT-14WB/14N Internal Sensor
Channel 1 has a default connection to an internal temperature sensor. When an
external sensor is not connected, the internal sensor will be used.
Registration
Code Label
Battery Cover
Do not place or store in the following
areas:
Other Precautions
RT-14WB/14N
RT/RS-14WB RT/RS-14N
(Wireless LAN) (Wired LAN)
USB Port Ethernet Port (LAN)
• Do not use the unit in wet areas or places exposed to water such as bathroom.
• When connecting the unit to your PC, make sure to follow all warnings and
directions from your computer manufacturer.
• We shall not guarantee the unit's operation if it has been connected to a
PC using a USB hub or a USB extension cable.
• Do not insert any foreign objects into any of the units' jacks.
• If the unit gets dirty, wipe it with a clean cloth.
• Make sure to remove dust and dirt from plugs of any cables.
• Battery terminals may provide insufficient contact due to age or vibration.
This may lead to data loss.
• Please note that this document has been written based on the
presupposition that details about contracts with an Internet provider,
specific network environments and the set-up of any other necessary
equipment to enable network connection has already been taken care
of by the User and that connection has been confirmed as workable.
ESPEC MIC Corporation shall not be responsible for any damages which a
contractor, a user or a third party may suffer, whether direct or indirect, due
to the inability to communicate or use communication devices.
CAUTION Notices about Sensors
• Do not connect any sensor to the unit other than those specified by ESPEC
MIC Corporation.
• Make sure to use sensors within the measurement range indicated in the
specifications for that sensor.
• Do not connect the sensor to any thermo recorder other than those
specified by ESPEC MIC Corporation.
• Do not expose the sensor to a strong impact. This may adversely affect
measurement accuracy and cause damage or malfunction.
• When the sensor is not to be used for a long period of time, please store it
at normal temperature and humidity.
• The included sensor is not water resistant. If the sensor gets wet,
immediately remove the sensor from the unit and wipe it with a clean
cloth as soon as possible. Then allow the sensor to dry in normal room
temperature before using it again.
• Do not use the sensor on the human body.
Temperature-Humidity Sensor
• If extremely severe temperature changes occur, it may result in large errors
in humidity measurement. Once the sensor's temperature becomes stable,
the measurements will return to normal.
• The temperature-humidity sensors will with normal use experience losses
in precision and sensitivity over time due to degradation. If the sensor is
being used in an unsuitable environment (smoky or dusty places) it may be
necessary to change the sensor sooner.
• When using the sensor in an environment where the humidity is under 30
%RH, the measurements may sometimes fluctuate. This is not abnormal.
• Do not expose to condensation, dampness, corrosive gases, or organic
solvents.
RT-14WB/14N
RS-14WB/14N
RS-14WBH/14NH
RS-14WB/14N
RS-14WBH/14NH
PoE LED
turns ON when running on
external power.
LINK LED
flashes during network
communication.
