Simply Automated SimplyBrilliant US22-40 Quick Start Manual

UPB Dual Output, Universal Dimming Transceiver Base
Model US22-40
Provides two ON/OFF, dimming and Timed OFF outputs for:
•
Incandescent lighting
•
Magnetic low-voltage lighting
•
Halogen lighting
IMPORTANT!
Read This Before Installing!
•
This incandescent dimmer
FLUORESCENT, ELECTRONIC LOW-VOLTAGE or METAL HALIDE
lighting, unless specifically allowed by the lighting manufacturer.
Please see instructions to configure this product for ON/OFF
operation (dimming disabled) with these types of lighting.
•
DO NOT WIRE HOT! Permanent damage may result. Improper
installation voids the warranty.

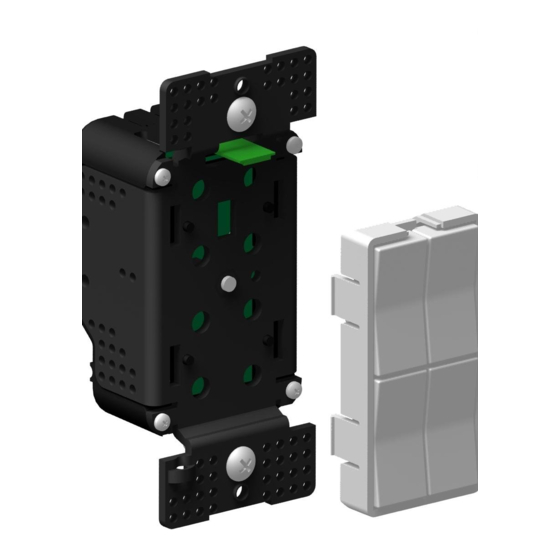

Model US22-40 shown with
actuator faceplate (sold
separately)
FUNCTION
The SimplyBrilliant™ UPB Dual
Output, Universal Dimming
Transceiver Base, model US22-40,
provides two direct load controls and
remote control of permanently-
installed new or existing lighting fixtures, lamps and other electrical devices
connected to UPB devices. Incandescent lamps can be turned ON or OFF,
and can also be dimmed and brightened. The US22 can be configured to
turn other types of non-dimmable loads ON and OFF. The timer function
can be preset and automatically turn OFF loads, like bathroom lights, fans
or heat lamps. Actuator faceplates, model ZSXX series, available in rocker
and pushbutton styles, are interchangeable on the US22 base. The US22
can be configured to control two loads of up to 600W each (see table 1) and
provide scene control. Load control can be configured to any rocker or
button on the various actuator faceplates. All switch actuators may act as
transmitters of UPB lighting scene-links, communicating with other UPB
devices - individually or collectively.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical products, basic safety precautions should always be
followed, including the following:
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
2. Installation should be performed by a qualified electrician.
3. Keep away from water. If product comes into contact with water or
other liquid, disconnect immediately.
4. Never use products that have been dropped or damaged.
5. Do not use this product outdoors.
6. Do not use this product for other than its intended use.
7. Do not connect multiple lamps that, when combined, exceed the
maximum load rating of the product, de-rated for multi-gang boxes.
8. Do not install in areas that can exceed 120°F (e.g., in an attic).
9. To avoid the risk of overheating and possible damage to other
equipment, do not use this product to control a receptacle.
10. Do not cover the product with any material when in use.
11. SAVE THESE INSTRUCTIONS.
cannot be used to dim
INSTALLATION
The SimplyBrilliant™ UPB Dual Output, Universal Dimming Transceiver
Base (US22-40) is designed to be installed in a junction box that is wired to
a readily accessible over-current protection device in the building wiring per
NEC and CEC electrical codes.
CAUTION: The default switch configuration operates as a dimmer for
incandescent lamps. It will also dim magnetic low-voltage and halogen
lamps. To control fluorescent, electronic low-voltage or metal halide
lamps, or motor-operated appliances, transformer-supplied appliances
or fans, the switch must be reconfigured for ON/OFF operation
(dimming disabled) prior to use. Refer to the section on Configuration.
CAUTION: DO NOT WIRE THIS DEVICE WITH POWER
CONNECTED. Injury or permanent damage to the device may
result. Improper installation voids the product warranty.
1. Locate the existing wall switch for the lighting to be controlled.
Note that the lamp rating (or the combined rating of all
connected lamps) must not exceed what is shown in the de-
rating table below.
Table 1: *Ganging
Derating
1
Number
of J-box
2
Gangs
3+
*Total watts – both channels; not to exceed 600W per channel.
2. Disconnect power at the circuit breaker.
3. Remove the existing wall switch hardware. Disconnect the
wires to the switch.
4. Using a wire nut, connect all white (Neutral) wires together
including white wire of US22.
5. Using wire nuts, connect the US22's BROWN channel 1
(output load) wire to the black wire of the first device load and
RED channel 2 (load output) wire to the black wire of second
device load to be controlled. DO NOT CONNECT BOTH
BROWN AND RED LOAD WIRES TOGETHER; ONE
CHANNEL MAY OVERLOAD.
6. IF THIS IS TO BE A 3- OR MORE-WAY INSTALLATION, use
a wire nut to connect the brown/white "REMOTE 1" wire or
red/white "REMOTE 2" wire if there is a second 3-way switch
traveler. Refer to the wiring diagrams on pages 3 and 4.
7. Using a wire nut, connect the black (Line) wire of the US22-40
switch to the black (Line) power wire.
8. Mount the switch inside the J-box using captive screws. DO
NOT OVER TIGHTEN THE SCREWS.
9. Reconnect power at the circuit breaker.
CONFIGURATION
Configuration requires UPB setup/configuration software and a model UMC
Computer Interface Module. Before using UPStart configuration software,
be sure to download the latest version from the Simply Automated website.
First time users should also download and follow the Quick Start Guide and
use the Installation Wizard available in UPStart to save time.
The US22-40 default settings are preconfigured for a ZS24 (quad rocker)
faceplate. The default settings ensure that both loads will operate locally
with most faceplate. To utilize essential functions, the UPB settings should
be configured by the installer for the specific faceplate. Any rocker or button
can be configured to control the local load (Link #241 channel 1, Link #242
channel 2). When using UPStart, this is done by selecting the faceplate
"device type" when adding the device to the network.
6108 Avenida Encinas, Suite B, Carlsbad, CA 92011 USA
Technical Support: www.simply-automated.com or 800-630-9234
452-0022-0101 Rev. A
Number of Dimmers in J-box
1 2
800W -- --
1000W 700W --
1200W 900W 700W
Simply Automated, Incorporated
Revised: November 22, 2008
3+
