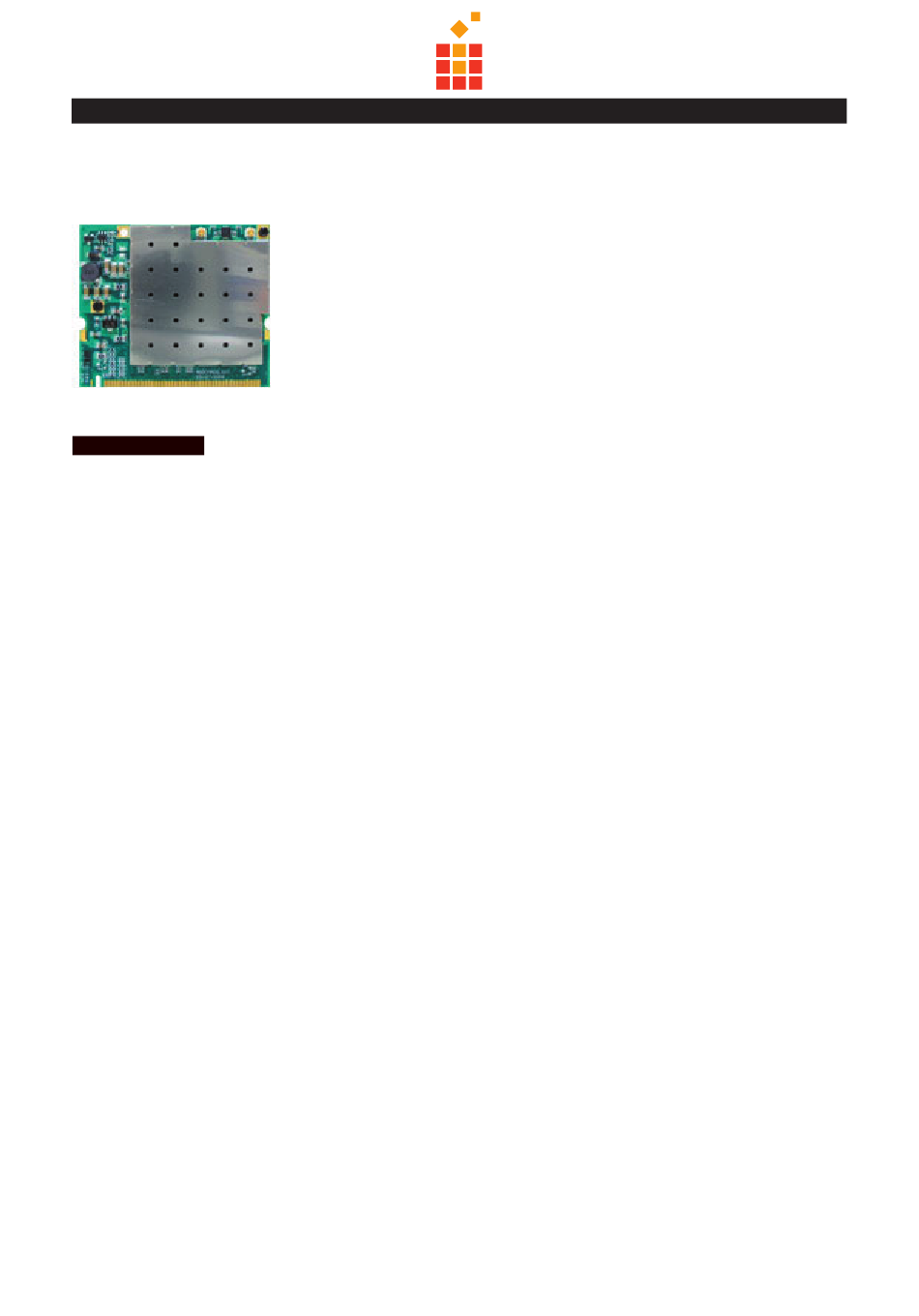

Industrial grade, high power 802.11 a/b/g wifi mini-PCI module, AR5414A-B2B
Key Features:
Industrial grade AR5414-B2B chipset ensures reliability and durability in –40°C ~ +80°C range for rugged
outdoor or embedded devices.
Average power up to 200mW (23dBm) and peak power up to 600mW (28dBm) on both 802.11a and 802.11b/g
modes provide superior wifi coverage.
Two U.FL antenna design can be configured through software to use one high gain 2.4GHz at antenna port 1 and
another 5GHz high gain antenna at antenna port 2, the perfect alternative solution to replace high cost dual band
high gain antenna.
Two U.FL antenna connectors enable robust assembly and support antenna diversity.
PA fine-tuning gains balance of linearity and power consumption with enough margins while maintaining
adequate Tx power to ensure no major performance degradation over time.
Mini-PCI Type IIIA form factor with screw hole is ideal for solid mounting onto motherboard.
Supported by MadWifi and ath5k providing Linux kernel drivers for industrial, academic, or personal projects at
highest flexibility and lowest cost.
Atheros Linux driver source code sub-license available by project.
Windows 2000/XP/NT4.0/Vista/7 drivers and site survey function provide immediate 11a/b/g wifi and
management capability.
Optional WinCE4.2/5.0 drivers assure trouble-free WiFi integration.
Supports universal 802.11a/11g/11b auto fallback data rate and seamless roaming among 802.11a, 802.11b,
and 802.11g multiple AP wifi networks.
Super AG® supports data rate up to 108Mbps in 802.11a and 802.11g super mode.
Future support of 802.11d (Regulatory Domain), 802.11e (Quality of Service, WMM), and 802.11h (TPC/DFS/
DFS2) by software upgrade.
Supports 64/128/152-bit WEP encryption, IEEE 802.1x authentication, AES & TKIP, and CCX3.0 encryption.
Heat sink design provides reliable high power RF performance.
RoHS compliance meets environment-friendly requirement.
Model: CM10-HI (U.FL)
CM10-HI (U.FL) is an industrial grade high power 600mW(28dBm) IEEE802.11a/b/g
108Mbps wifi mini-PCI module with two U.FL RF connectors designed specifically for
integration in high temperature durability and high performance-critical applications.
Industrial grade components and high power design, CM10-HI (U.FL) is ideal for
embedding into new or existing industrial grade devices such as rugged notebooks,
rugged outdoor point to point or building to building wireless Access Point/Bridge
connections, and rugged application-specific devices (ASDs) used in vertical market.
Optional WinCE 4.2/5.0 drivers enable ASD manufacturers to provide products that
enjoy improved innovation and time to market through trouble-free WiFi integration.
[Unex] - Ver. 1.9 20100907
P. 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CM10-HI and is the answer not in the manual?

Questions and answers

Summary of Contents for Unex CM10-HI

  • Page 1 108Mbps wifi mini-PCI module with two U.FL RF connectors designed specifically for integration in high temperature durability and high performance-critical applications. Industrial grade components and high power design, CM10-HI (U.FL) is ideal for embedding into new or existing industrial grade devices such as rugged notebooks, rugged outdoor point to point or building to building wireless Access Point/Bridge connections, and rugged application-specific devices (ASDs) used in vertical market.
  • Page 2 Hardware Block Diagram Mechanical Outline Unit: mm [Unex] - Ver. 1.9 20100907 P. 2...
  • Page 3: Pin Assignment

    PCI address/data bus bit 21 AD[22] BiDir,, Weak pull down PCI address/data bus bit 22 AD[19] BiDir,, Weak pull down PCI address/data bus bit 19 AD[20] BiDir,, Weak pull down PCI address/data bus bit 20 [Unex] - Ver. 1.9 20100907 P. 3...
  • Page 4 Digital ground GROUND Ground Digital ground AC_SYNC No use M66EN PCI 66MHz Enable, no use AC_SDATA_IN No use AC_SDATA_OUT No use AC_BIT_CLK No use AC_CODEC_ID0# No use AC_CODEC_ID1# No use AC_RESET# No use [Unex] - Ver. 1.9 20100907 P. 4...
  • Page 5 SYS_AUDIO_IN GND No use AUDIO_GND No use AUDIO_GND Ground Analog ground RESERVED Reserved MPCIACT# Mini PCI function active, no support VCC5VA No use 3.3VAUX Power 3.3V±10% Packing: Box: 50 pcs/box Carton: 250 pcs/carton [Unex] - Ver. 1.9 20100907 P. 5...
  • Page 6 ▫ China: 5 non-overlapping channels (5.725~5.85GHz) ▪ 802.11b/g ▫ USA/Canada: 11 (1~11) ▫ Major Europe Countries: 13 (1~13) ▫ France: 4 (10~13) ▫ Japan: 14 for 802.11b (1~13 or 14th), 13 for 802.11g (1~13) ▫ China: 13 (1~13) [Unex] - Ver. 1.9 20100907 P. 6...
  • Page 7 ▪ 802.11b: +23.5 – 24.5dBm @ 1, 2, 5.5, 11Mbps ▪ 802.11g: +24 –24.5dBm @ 6, 9, 12,18, 24Mbps ▫ +21 – 22dBm @ 36Mbps ▫ +20.5-21.5dBm @ 48Mbps ▫ +19.5 –21dBm @ 54Mbps [Unex] - Ver. 1.9 20100907 P. 7...
  • Page 8 11Mbps 6Mbps 9Mbps 12Mbps 18Mbps 24Mbps 36Mbps 48Mbps 54Mbps Turbo mode (channel bandwidth 40MHz) Mode Condition UNITS 12Mbps 18Mbps 24Mbps 36Mbps 48Mbps 72Mbps 96Mbps 108Mbps 12Mbps 18Mbps 24Mbps 36Mbps 48Mbps 72Mbps 96Mbps 108Mbps [Unex] - Ver. 1.9 20100907 P. 8...
  • Page 9 Windows 2000, Windows XP, Windows Vista, Windows 7, Linux, MadWifi, ath5k. Linux Operation Systems Supported driver source code sub-license by project request. Windows XP, 7 WHQL WECA compliance Wi-Fi Compliance hardware radio On/Off support Radio Option [Unex] - Ver. 1.9 20100907 P. 9...
  • Page 10 PA will be damaged and cause DC-shorted if leave antenna port open during transmission. 2. Please do not transmit power levels exceed max. target power in EEPROM’s setting. 3. Please follow Unex’s instruction document of single carrier test if test conducted. Unex Technology Corp.
