- Page 1 All manuals and user guides at all-guides.com User’s Manual Version 1.0 May 2001...
- Page 2 All manuals and user guides at all-guides.com KEYBOARD AMP/PA SYSTEM KX1200 SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electrical shock, do not remove the cover (or back). No user serviceable parts inside; refer servicing to qualified personnel. WARNING: To reduce the risk of fire or electrical shock, do not expose this appliance to rain or moisture.
- Page 3 Because we know that your success is our success, too! I would like to thank all people whose help on “Project KX1200” has made it all possible. Everybody has made very personal contributions, starting from the designers of the unit, via the many staff members in our company to you, the users of BEHRINGER products.

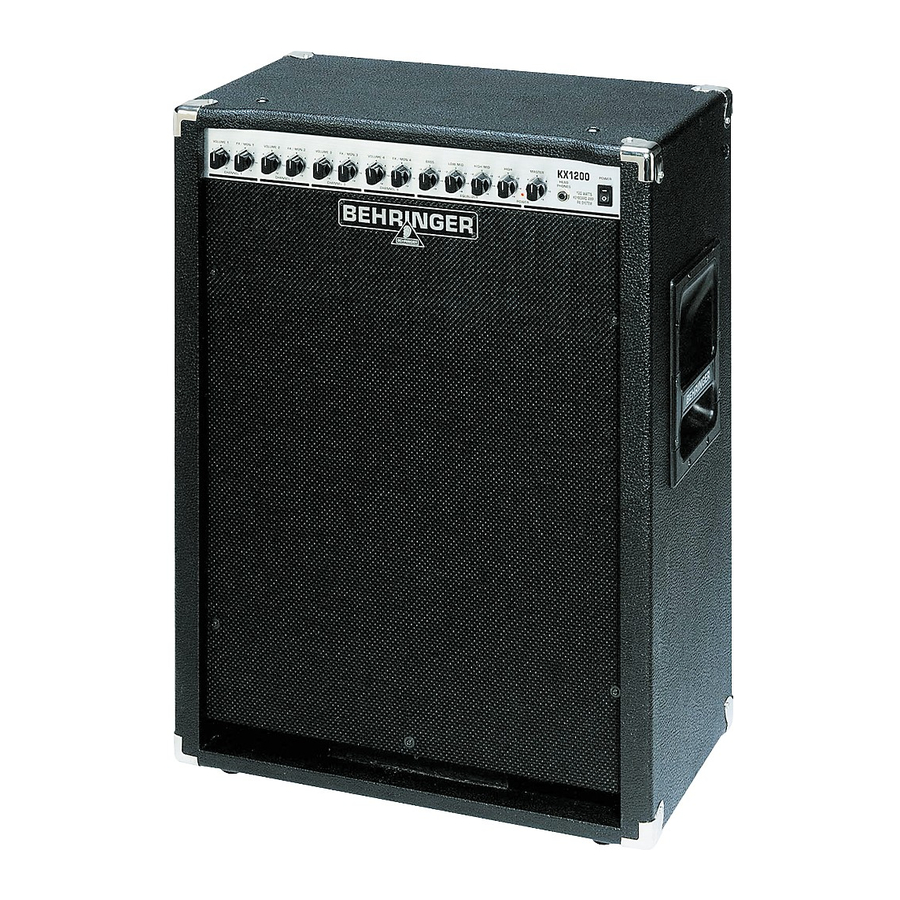

- Page 4 All manuals and user guides at all-guides.com KEYBOARD AMP/PA SYSTEM KX1200 KEYBOARD AMP/PA SYSTEM Ultra-flexible 120-Watt, 4-channel keyboard amplifier with effects path and microphone input s Powerful 120-Watt (RMS) keyboard amplifier with built-in 3-way bass reflex cabinet s Special custom-made 15" woofer, 5" midrange speaker plus tweeter...
-
Page 5: Table Of Contents
Your co-musicians will be grateful for that! And by the way: basically, the guitar or bass player in your band could also use your KX1200, as long as you don’t need all four channels for your keyboards equipment. -
Page 6: Before You Begin
Shipping claims must be made by the consignee. Be sure that there is enough air space around the unit for cooling and please do not place the KX1200 on high-temperature devices such as power amps or radiators, etc. to avoid overheating. -
Page 7: Rear Panel
LINE 1 - 4: These 1/4" TRS inputs are used to connect line-level instruments. The balanced D.I. OUT (XLR) allows you to connect the KX1200 to the input of a mixing console. The TAPE OUT connector (RCA) supplies the audio signal of your KX1200, for example to send it to a recording machine. -
Page 8: Wiring Examples
All manuals and user guides at all-guides.com KEYBOARD AMP/PA SYSTEM KX1200 2. WIRING EXAMPLES 2.1 Standard keyboard set-up with external drum computer and effects device The standard set-up allows you to connect your entire keyboard equipment. Instead of the drum computer you could also use some sort of playback provided, for example, by a tape deck or CD player. -
Page 9: Audio Connections
Fig. 2.2: Expanded set-up 3. AUDIO CONNECTIONS The 1/4" jack inputs/outputs of your BEHRINGER KX1200 are on balanced mono jacks – except for the LINE IN-connectors (TRS) and the stereo headphones connector. The DIRECT OUT and microphone input are on balanced XLR connectors. The tape inputs/outputs are on cinch connectors. - Page 10 All manuals and user guides at all-guides.com KEYBOARD AMP/PA SYSTEM KX1200 Fig. 3.1: Wiring of a stereo headphones 1/4" plug Fig. 3.2: Different plug types 3. AUDIO CONNECTIONS...
-
Page 11: Specifications
24 kg BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated. -
Page 12: Warranty
(user included) will void the warranty. shall, at its sole discretion, either repair or replace the product. 6. If an inspection of the product by BEHRINGER shows that the 2. If the warranty claim proves to be justified, the product will be defect in question is not covered by the warranty, the inspection returned to the user freight prepaid.
