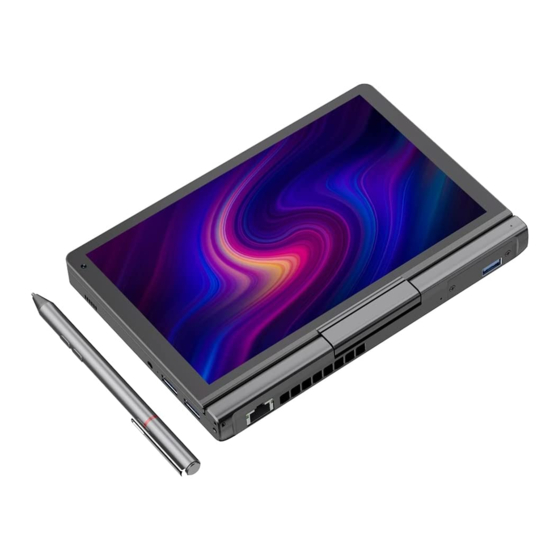

GPD Pocket 3
USER MANUAL
www.gpd.hk
Facebook
Twitter
Interface Descri ption
Connect to external devices such as docking station and USB disk for data
transmission.
Connect to a mobile phone for charging or data transmission.
Connect to an external portable Wi-Fi or USB network card for Internet
1
USB-A interface
access.
You can charge the peripherals through this interface, but cannot
charge this unit. This interface is detachable. You can replace this interface
with a serial port extension module or KVM extension module, or should
purchase this interface separately.
Connect to external devices such as display and docking station for
audio/video output or data transmission.
Connect to laptops, mobile phones, tablet PCs, etc. for charging.
Connect to the eGFX device and provide an external graphics card to
Thunderbolt 4
2
enhance the game experience.
interface (Type C)
This interface supports PD protocol power adapter and needs 12V/15V/
20V output, and is used to charge mobile phones, mobile power and other
devices. The low-profile version provides a full-featured Type C interface
and does not support eGFX device.
3
Left loudspeaker
A built-in speaker for voice output.
4
Right loudspeaker
A built-in speaker for voice output.
Red/green light
Red/green (when the power adapter is plugged in, the red light is on.
5
Charging indicator
When the battery is full, the green light is on. When no battery is detected,
red and green lights flash alternately.)
White/blue light
The white light is always on in normal use, and the blue light is on in
6
Running light
sleep mode, in which case the breathing light is in the working state; the
blue light is always on in silent mode, and the blue light is on in the sleep
mode, in which case the breathing light is in the working state.
It is an interface of sending videos and voice, and is used to send
uncompressed audio and video signals.
7
HDMI interface
It supports HDMI A Type cable connection, and the target devices
generally include TV, monitor or projector.
It can be used to attach mobile phone lanyards or ornaments to avoid
8
Lanyard hole
being stolen.
9
Display screen
It can display pictures, and it supports 10-point touch.
10
Left mouse button
Command execution, single selection, box selection, double-click editing, etc.
It cannot scroll. In some applications, press and hold or use together with
11
Middle mouse button
other keys to pan and zoom.
12
Right mouse button
Shortcut menu or enter function.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pocket 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GPD Pocket 3

  • Page 1 This interface supports PD protocol power adapter and needs 12V/15V/ 20V output, and is used to charge mobile phones, mobile power and other devices. The low-profile version provides a full-featured Type C interface GPD Pocket 3 and does not support eGFX device. USER MANUAL Left loudspeaker A built-in speaker for voice output.
  • Page 2 USB A Connect to an external portable Wi-Fi or USB network card for Internet and mouse control target devices of Pocket 3 can be used. The USB IN access. interface can be connected to a keyboard or mouse and can also be used You can charge the peripherals through this interface, but cannot to control the target devices.
  • Page 3 Charge the device Charge the device with a power adapter Turn the device on and off The device has a built-in (non-detachable) rechargeable battery. Please use the charging cable in Please connect the charging cable in the power adapter and the Thunderbolt 4 (full-featured Type C the built-in power adapter and Thunderbolt 4 (full-featured Type C interface for low-profile version) interface for low-profile version) interface to charge the device during first startup.
  • Page 4 Dimension 750g approx Net Weight Turn on or off the keyboard backlight Description Unit(s) F1~F12 GPD Pocket 3 Home key Type-C Data Cable Power Adapter PgUp key User Manual PgDn key Note: Please use the origin AC Adapter, as low input voltage can cause insufficient power supply.
  • Page 5 ータを転送する。 スマホと接続すると、充電すると同時にデータを転送することができる。 外付けのモバイルWi-Fiルーター又はUSBネットワークカードと接続する USB-Aポート と、インターネットに接続することができる。 当該ポートは周辺デバイスへの充電に対応できるが、自機への充電に対 応できない。取外し可能となり、シリアルポート拡張モジュール又は KVM拡張モジュールを変更することができる。単独でご購入いただく。 ディスプレイやドッキングステーションなどの周辺デバイスと接続し、 音声、映像又はデータを転送する。 ノート、スマホ、タブレットなどと接続して充電する。 サンダーボルト4 eGFXデバイスと接続して、外付けビデオカードによってゲーム体験を ポート(Type C) 向上させる。 当該ポートはPD対応電源アダプタに適用され、12V/15V/20V出力が必要 となる。スマホ、モバイル電源などのデバイスに充電することができる。 低性能版は全機能Type Cポートであり、eGFXデバイスをサポートしない。 GPD Pocket 3 左のスピーカー 音声出力のためのスピーカーを内蔵する。 取扱説明書 右のスピーカー 音声出力のためのスピーカーを内蔵する。 www.gpd.hk 赤色ライト/緑色ライトの2つの表示状態がある。 赤色/緑色(電源アダプタを挿入すると赤色ライトが点灯する。充電完 充電インジケーター 了になると緑色ライトが点灯する。電源アダプタを抜けるとライトが 消える。電池を検知しなかった場合、赤色ライトと緑色ライトが交互 に点滅する。) 白色ライト/青色ライトの2つの表示状態がある。 正常動作中に白色ライトが常時点灯となるが、睡眠モードでは青色ラ 動作インジケーター イトが点灯し、呼吸ランプとされる。ミュートモードでは青色ライト が常時点灯となるが、睡眠モードでは青色ライトが点灯し、呼吸ラン...
  • Page 6 スマホと接続すると、充電すると同時にデータを転送することができる。 デバイス(9ピン)との接続をサポートする。 拡張モジュール USB A 外付けのモバイルWi-Fiルーター又はUSBネットワークカードと接続する 当該モジュールは単独でご購入いただく。 と、インターネットに接続することができる。 単一ポート付きのコントロールモジュールとして、キーボード、マウス、 当該ポートは周辺デバイスへの充電に対応できるが、自機への充電に対 ディスプレイを持たないネットワークデバイスやシステムに対して、物 応できない。 理層ハードウェアに基づくアクセスとコントロール・操作を行う。 ドッキングステーションやUディスクなどの周辺デバイスと接続し、デ 当該モジュールは1つのHDMI INポート、1つのUSB INポートを提供して KVMコントロール ータを転送する。 いる。HDMIケーブルが接続してから、Pocket 3の携帯するディスプレイ モジュール スマホと接続すると、充電すると同時にデータを転送することができる。 でターゲットデバイスの起動、自己検知、システムログインの過程を表 USB A 外付けのモバイルWi-Fiルーター又はUSBネットワークカードと接続する 示することができ、Pocket 3の携帯するキーボードやマウスでターゲッ と、インターネットに接続することができる。 トデバイスをコントロールすることができる。USB INポートは外付けの 当該ポートは周辺デバイスへの充電に対応できるが、自機への充電に対 キーボード又はマウスと接続することができ、ターゲットデバイスをコ 応できない。 ントロールすることもできる。当該モジュールは単独でご購入いただく。 10/100/1000/2500Mbpsの転送レートをサポートする。 ローカルネットワークの転送レートが2500 Mbpsに達し、カテゴリー6対 応スーパーフラットLANケーブル又はカテゴリー7対応LANケーブルを使...
  • Page 7 デバイスへの充電 電源アダプタでデバイスの充電を行う デバイスのオン ・ オフ デバイスに充電可能な電池 (取外し不可) を内蔵している。 付属した電源アダプタとサンダー 初めてオンにする時、 まず電源アダプタとサンダーボルト4ポート (低性能版は全機能Type C ボルト4ポート (低性能版は全機能Type Cポートである) の充電ケーブルを電源ソケッ トと接 ポートである) の充電ケーブルと接続して、 デバイスに充電してください。 続する。 充電インジケーターは赤色ライトが点灯すると、 電池が充電していることを表示する。 デバイスがオフになる、 又はスリープ状態にある場合、 ディスプレイが明るくなるまで電源ボ 充電完了になると、 緑色ライトが点灯する。 デバイスがオフになる、 又はスリープ状態にある タンを短く押すと、 デバイスを起動または復帰させることができる。 時、 電池の充電速度はもっと速くなる。 デバイスの正常使用中に、    <  をタップすると、 デバイスがスリープ、 オフ又は再起動状態 に入る。           電源ボタンを10秒長押しすると、 デバイスを強制的にシャッ トダウンできる。 この場合、           保存されないデータの紛失が発生する可能性がある。...
  • Page 8 電源 DC 20V---2.25A ミュート 消費電力 6~25W テキストで右ボタンの機能メニューを表示する 待機時消費電力 0.1W キーの組み合わせによって、 ファンのミュートと 198×137×20 mm 低速度回転が実現可能 寸法 本体重量 約750g キーボードのバックライトをオン ・ オフにする F1~F12 項目 品名 数量 GPD Pocket 3 Homeキー Type-C ケーブル PgUpキー Acアダプター 取扱説明書 PgDnキー Endキー ご注意:付属品の仕様は実物に準じます。 オンにすると、 長押しでBIOSに入る 大文字状態に入ると、 インジケーターが点灯する...
