Summary of Contents for Algas SDI FILTAIRE OIL DEMISTER

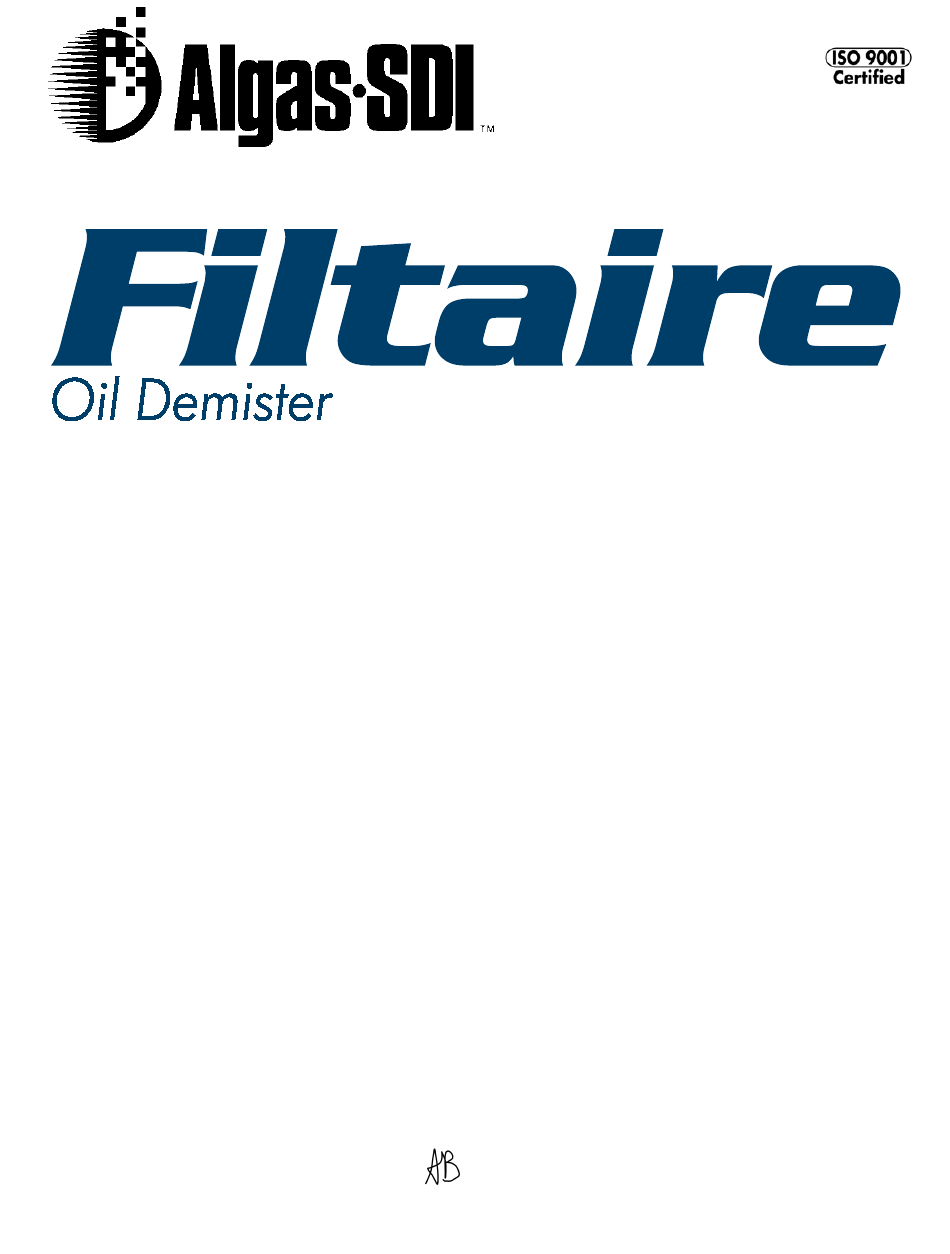

- Page 1 ...Innovative liquid vaporizing and gas mixing solutions Operation & Maintenance Manual 151 South Michigan Street, Seattle, Washington, USA 98108 Tel: 206-789-5410 Fax: 206-789-5414 Web: www.algas-sdi.com FILE: MANUAL PN 52634 REV 01-28-16 FILTAIRE.DOC 06/16/2016...
- Page 2 Introduction DESCRIPTION The FILTAIRE is a filtering device designed to trap heavy hydrocarbons commonly present in LPG gas vapor. It also traps other materials, which may be in the gas due to storage conditions and internal condition of the equipment. Impurities are collected in the system and periodically removed through the system blow down drain.
-
Page 3: Installation Procedure
Installation WARNING The equipment described in this manual is designed to operate with LP-gas, a flammable fuel under pressure. The nature of the application involves inherent hazards that could result in injury. ONLY a trained and fully qualified person should service this equipment. - Page 4 Installation Figure 3 - General Equipment FILTMAN4.dwg 2- 4 Algas-SDI Operations and Maintenance Manual – P/N – 52634...
-
Page 5: Operation
Operation WARNING The equipment described in this manual is designed to operate with LP-gas, a flammable fuel under pressure. The nature of the application involves inherent hazards that could result in injury. ONLY a trained and fully qualified person should service this equipment. -
Page 6: Cleaning The Filter
Operation NOTE If the filter is too dirty the outlet pressure will decrease. CLEANING THE FILTER A dirty filter causes a larger than normal pressure drop, decreasing the outlet pressure. A decreasing outlet pressure indicates the FILTAIRE has accumulated significant amount of residue and must be cleaned to keep on operating properly. In general, a FILTAIRE must be cleaned every 6 months. -
Page 7: Maintenance
Maintenance Cleaning the Filter (refer to Figure 1) When the unit is dirty it must be cleaned. For proper cleaning, the stainless steel filter must be soaked and reverse flushed. RECOMMENDED PROCEDURE 1. Open the bypass valve, close the Filtaire inlet and outlet valves. 2. -
Page 8: Spare Parts
Maintenance Table 2 – Maintenance Form DATE AMOUNT DATE DATE PRESSURE DRAINED DRAINED CLEANED SPARE PARTS ASDI PN: 30897 Float Switch ASDI PN: 30641 Pressure Gauge 0-300 psig Algas-SDI Operations and Maintenance Manual – P/N – 52634... - Page 9 Options AUTOMATIC MAINTENANCE OR HIGH LIQUID WARNING Optional liquid level switches can be installed in the Filtaire to warn maintenance that the Filtaire requires draining due to the accumulation of liquid in the reservoir. Provisions for single or dual liquid level switches can be made during manufacturing.
- Page 10 Options Figure 4 - Options (A) FILTMAN5.dwg 5- 10 Algas-SDI Operations and Maintenance Manual – P/N – 52634...
