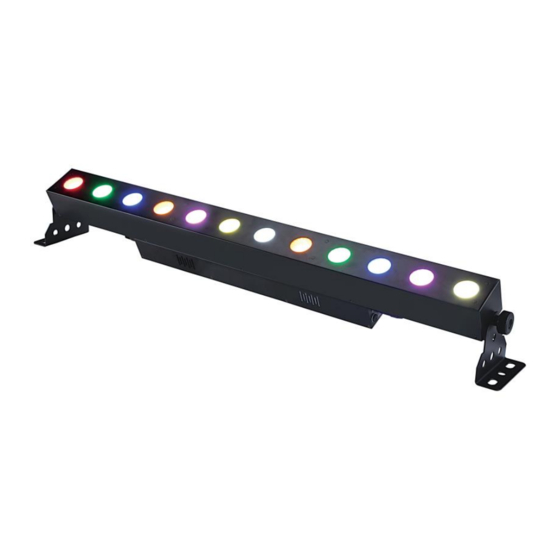

- Page 1 LED Stage Bar1251 RGBWA with dot matrix USER MANUAL ----------------------------------------Pro20130814&Ver01-----------------------------------...
- Page 2 Introduction Unpacking: Thank you for purchasing Vello Lights. Every unit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived well.
- Page 3 Features ●Multi-Colors ● Master/Slave synchronization ●Color Strobe ● LED operation menu ●Electronic Dimming 0-100% ● DMX-512 protocol ●Daisy Chain Units together in DMX Mode ● With Dot Matrix+Sound Control Safety Precautions ● Be sure that the local power outlet match that of the required voltage for your unit, ●...
- Page 4 DMX Mode: Operating through a DMX controller give the user the freedom to create their own programs tailored to their own individual needs. This function also allows you to use your units as spot lights. ’ 1. This function will allow you to control each individual unit s traits with a standard DMX 512 controller.
- Page 5 Dimmer Mode,. This function allows you to select dimmer mode, Use the up/down keys to select desired setting Press Enter to confirm the setting DMX Profile LED Stage Bar1251 RGBWA with dot matrix Mode A ( 9 Channel) DMX Channel Function...
- Page 6 0-255 LED Color White LED intensity (zone 4) 0-255 LED Color Amber LED intensity (zone 4) 0-255 LED Stage Bar1251 RGBWA with dot matrix Mode H (60 Channel) DMX Channel Function Description Value LED Color Red LED intensity(LED 1) 0-255...
- Page 7 Some other DMX devices pin 5 may be “hot”). Also, check that all cables are connected to the right connectors; It does matter which way the inputs and outputs are connected. Specifications Model: LED Stage Bar1251 RGBWA with dot matrix Working Position: Any safe working position Voltage: 90-250V / 50~60Hz Power: 300W LED Lamp : Tianxin high power LEDs;...
