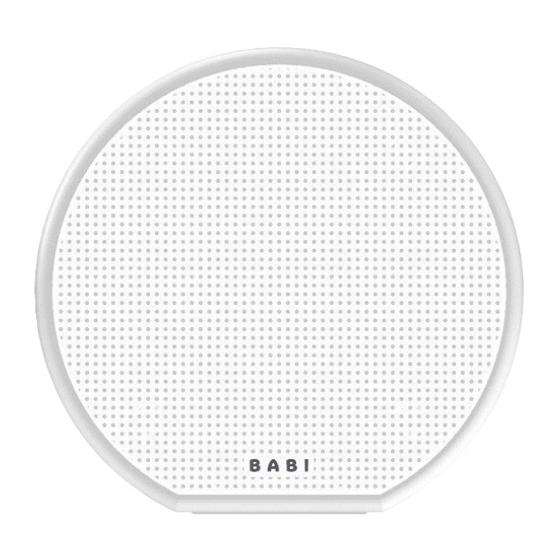

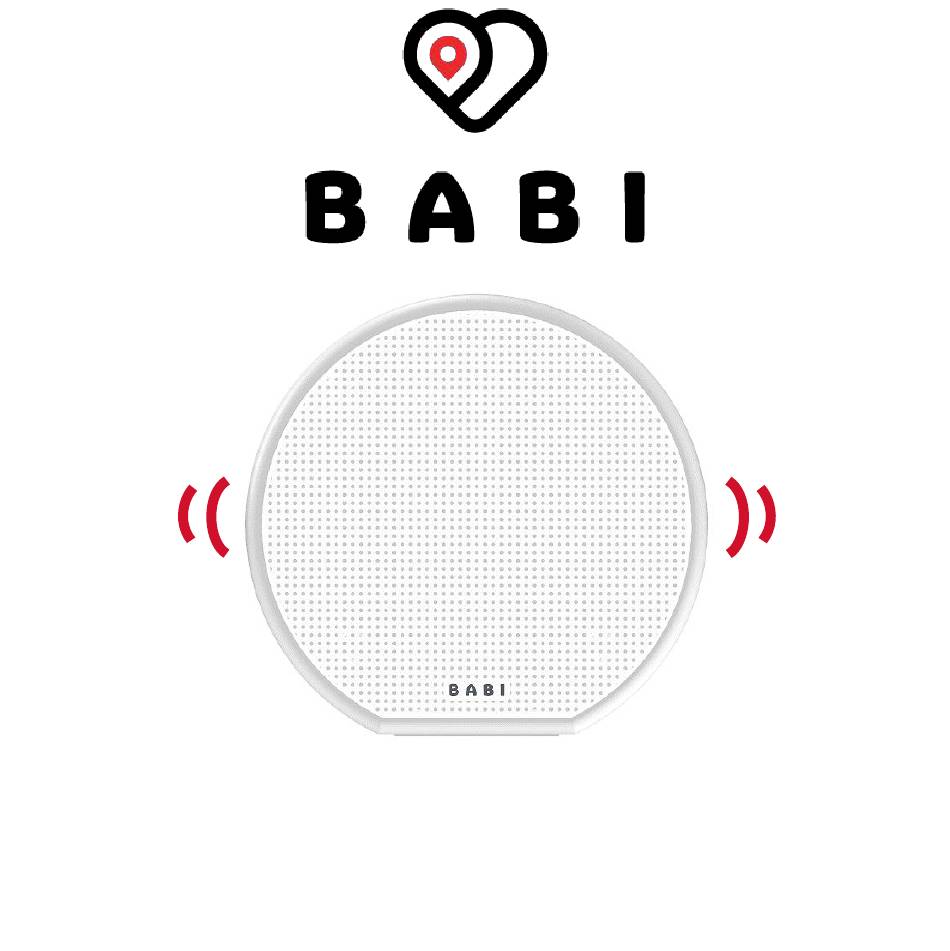

- Page 1 BABI ANGEL ALARM USER MANUAL...
- Page 2 Product Specification: Product Name BABI ANGEL ALARM Product Code BAA1001 Alarm Dimensions 82*78*33mm Operating Temperature -20°C to +70°C Charger Input DC 5V 0.5A Communication Technology Bluetooth Low Energy V4.2 Transmission Power 3.5mW Alarm Input 3.7V Li-Po Battery, (Rechargeable) 750mAh, 2.775Wh...
- Page 3 What is in the Box: BABI Angel Alarm USB to Micro USB Cable Power Adapter USB Charger User Manual Booklet...
- Page 4 For those using the BabiCare mobile phone App, this device can be used as a secondary primary alarm. Note: One BABI Angel Alarm can will work with up to 4 Babi Angel monitor bracelets. The Angel Alarm will receive alerts from the angel monitor bracelet directly when: 1.
- Page 5 Using the BABI Angel Alarm: Setting up and using the BABI Angel Alarm is the same for both modes of operation. 1) First charge the device for a minimum 2 hours. Plug the USB cable into the back on the device and into the power adapter.
- Page 6 Power On and Off switch Button Increase Volume control Button Decrease Volume control Button Language Selection Button Press Together for Pairing the Devices P r e s s T o g e t h e r f o r A c t i v a t i n g a n d Deactivating the Audio “Listen In”...
- Page 7 Setup the Babi Angel Alarm: When the device has a flashing Blue LED light, the device pairing is required, press the Power and Language Buttons at the same time, the Blue LED light will flash faster until the devices are paired and are communicating. There will be a verbal confirmation message given when the device is connected.
- Page 8 The Babi Angel Alarm will now connected to the angel monitor bracelet will communicate with each other. The Angel alarm will be on standby waiting for instruction from the angel monitor bracelet which is continously monitoring the infant.
- Page 9 When the Heart Rate goes out of the prefix safety range the LED light at front of the alarm will flash continuously, three loud sounding alerts are sounded followed by a ve r b a l notification: «Heart Beat Rate Out of Range» followed by 3 loud alerts.
- Page 10 When the Bracelet is Removed by the infant or by itself, the LED light at front of the alarm will flash continuously, three loud sounding alerts are sounded followed by a ve r b a l notification: «Bracelet Removed» followed by 3 loud alerts. This will repeat until the user presses any one of the 4 buttons on the device as an acknowledgement that the alarm has be recieved and a preventive action will be taken.
- Page 11 Warranty The product is guaranteed against any non-conformity defect with normal operational conditions of use, as provided by the instructions for use. The warranty shall not therefore apply in the case of damages caused by improper use, wear or accidental damage events. For the duration of warranty on conformity defects please refer to the specific provisions of national laws applicable in the country of purchase, where provided.
- Page 12 User Responsibility Babi Angel Alarm is designed to receive alarms and notifications to alert the user of the any potential health parameters changes of an infant whilst they are asleep. The product communicates with the Babi Angel Monitor bracelet and receives data to raise an emergency alarm as a preventive action and allow an early intervention of necessary action to be taken to ensure the safety of the infant.
- Page 13 ON to be effective. Declaration of Conformity BABI Ltd hereby declares that Babi Angel Alarm is in conformity with the essential requirements and the related established by EU directives. The product is CE Certified and is EMC, RED, REACH and ROHS complaint.
- Page 14 FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 15 · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. · Consult the dealer or an experienced radio/TV technician for help.
- Page 16 Baby Safety Products www.babisit.com...
