Summary of Contents for SAT 23T US

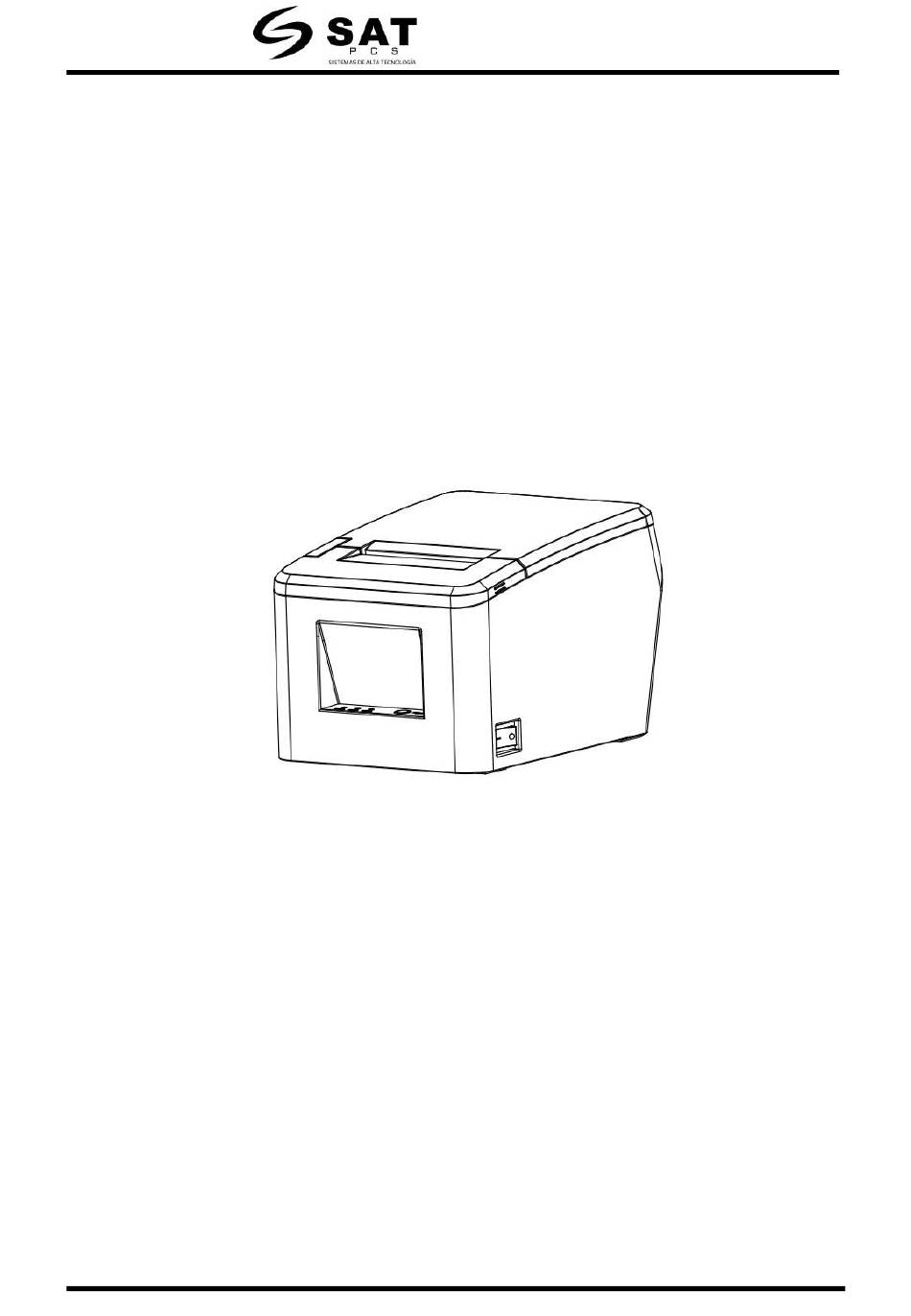

- Page 1 Manual de Usuario SAT 23T USE SAT 23T US User Manual www.satpcs.com.co...
-
Page 2: Table Of Contents
Manual de Usuario SAT 23T USE Content Statement Important Safety Instruc ons 1 OVERVIEW 1.1 Introduc ons 1.2 The Main Features 2 GETTING STARTED 2.1 Packing List 2.2 Appearance 2.3 Dimensions 3 SPECIFICATION 3.1 Printer Specifica on 3.2 Prin ng Media Specifica on 3.2.1 Con nuous Thermal Paper Specifica on... - Page 3 SAT 23T US User Manual Statement Copyright This manual is printed in 2019. Printed in China . 1.0 Version . Warnings This must be complied with in order to avoid any damage to the human body and to the equipment.
-
Page 4: Important Safety Instruc Ons
SAT 23T US User Manual Important Safety Instruc ons ◆ Safety Warning Warnings: The print head will become very hot during prin ng; avoid contact with the print head a er prin ng has finished. Warnings: Do not touch the printer head and connector in case sta c damage the printer head. - Page 5 SAT 23T US User Manual ◆ WEEE (Waste Electrical and Electric Equipment) This mark shown on the product or its literature indicates that the corresponding item should not be discarded at the end of its working life with others household waste.
-
Page 6: Overview
1 OVERVIEW 1.1 Introduc ons SAT 23T US is a thermal receipt printer, featured by high print quality, high print speed, high stability, etc. It can be used in commercial POS system, food industry and occasions which need real- me field print receipts. -
Page 7: Getting Started
SAT 23T US User Manual 2 GETTING STARTED 2.1 Packing List A er receiving your printer, please check for possible shipping damage: 1) Inspect the outside of both the box and the printer for possible damage. 2) Check whether you have received the following accessories together with the printer, if there are any items missing, please contact your local dealer. -
Page 8: Appearance
SAT 23T US User Manual 2.2 Appearance www.satpcs.com.co... -
Page 9: Dimensions
SAT 23T US User Manual 2.3 Dimensions Unit: mm www.satpcs.com.co... -
Page 10: Specification
SAT 23T US User Manual 3 SPECIFICATION 3.1 Printer Specifica on Item Parameter Prin ng Method Direct thermal line prin ng Resolu on Default 203 dpi, 180 dpi can be emulated Prin ng Prin ng Width 72mm / 48mm Parameter Prin ng Speed Max. - Page 11 SAT 23T US User Manual Item Parameter Paper Loading Easy-loading structure of upward open cover Paper Type Standard thermal paper Paper Paper Width Paper Thickness 0.050~0.090mm Paper Roll Diameter 83mm Max. Opera ng 5~45℃/25~85%RH No condensa on Condi on Storage -20~60℃/10~90%RH No condensa on...
-
Page 12: Prin Ng Media Specifica On
SAT 23T US User Manual 3.2 Prin ng Media Specifica on 3.2.1 Con nuous Thermal Paper Specifica on Paper Type : Standard thermal paper Paper Width Paper Outer Diameter : Max. 83 mm Paper Thickness : 0.050~0.090mm 3.2.2 No ces Notes : ⮚... -
Page 13: Prin Ng And Cu Ng Posi On
SAT 23T US User Manual 3.3 Prin ng and Cu ng Posi on 3.3.1 Prin ng posi on mm Print Paper mm Print Paper 3.3.2 Cu ng Posi on Type Paper Cu ng Posi on(L1) SAT 23T US 8.5mm www.satpcs.com.co... -
Page 14: Installation And Usage
SAT 23T US User Manual 4 INSTALLATION AND USAGE 4.1 Media Loading 1) Press the cover open bu on to open the top cover. 2) Remove the used roll paper core, if any. 3) In the correct direc on of the roll paper, insert the paper. - Page 15 SAT 23T US User Manual 4) Pull out some roll paper and close the top cover. 5) Tear the extra paper of the printer. www.satpcs.com.co...
-
Page 16: Power Connec On
SAT 23T US User Manual 4.2 Power Connec on 1) Make sure the printer power is turn off. 2) Connect power adapter with printer 3) Connect power adapter with power cord. 4) Plug the other side of power cord into the socket outlet. -
Page 17: Cash Drawer Connec On
SAT 23T US User Manual 4.3 Cash Drawer Connec on 1) Make sure the printer's power switch is turned off; 2) Connect the cash drawer cable into the cash drawer interface on the rear side of the printer. Warning: Cash drawer interface can only be connected to a voltage of 24V cash drawer device (can’t connect to the phone line, etc.) -
Page 18: Print Test
SAT 23T US User Manual 4.5 Print Test 4.5.1 Print Self-Test The self-test checks the printer’s current se ngs, status and whether the printer has any problem. (1) Make sure the power is connec ng and paper is loading properly. -
Page 19: Interfaces
SAT 23T US User Manual 5 INTERFACES SAT 23T US supports serial interface, ethernet interface, cash drawer interface and USB interface. 5.1 USB Figure 5-1 PIN NO. SIGNAL NAME VBUS 5.2 Cash Drawer Interface Figure 5-2 PIN NO. SIGNAL NAME... -
Page 20: Power Port Defini On
⮚ When arranging the line of communica on, you have to avoid paralleling with the strong current. ⮚ you have to use the shielded communica on line. 5.4 Serial Interface Printer SAT 23T US serial interface is compa ble with RS-232 standard, with 9 pin sockets. Figure 5.4 PIN NO. SIGNAL NAME... -
Page 21: Troubleshooting
SAT 23T US User Manual 6 TROUBLESHOOTING Your printer is very reliable, but occasionally problems may occur. This chapter provides informa on on some common problems you may encounter and how to solve them. If you encounter problems that you can not resolve, contact your dealer for assistance . -
Page 22: Troubles Occur During Prin Ng
SAT 23T US User Manual 6.3 Troubles Occur During Prin ng Problem Descrip on Probable Reason Solu on Incorrect roll paper installa on Check if the roll paper is installed Use recommended thermal roll Unqualified roll paper paper Blurred prin ng or spot... -
Page 23: Problems Emerge During The Paper Cu Ng
SAT 23T US User Manual 6.4 Problems Emerge During the Paper Cu ng Problem Probable Reason Resolu on Descrip on Cu er abrasion, Replace the cu er insufficient cu ng Worm gear and worm Cu er jam, the Replace the worm gear and worm wheel... -
Page 24: Remove Jammed Paper
SAT 23T US User Manual 6.5 Remove Jammed Paper 1) When a paper jammed, do not press the cover open bu on to avoid damaging the blade. 2) Fix the printer by one hand and press either side of the convex bars by the other hand. Push up and open the front cover. - Page 25 SAT 23T US User Manual 3) Please rotate the gear un l the blade returns to its normal posi on, as shown in Figure 2. www.satpcs.com.co...
-
Page 26: Printer Cleaning And Maintenance
SAT 23T US User Manual 7 PRINTER CLEANING AND MAINTENANCE Print quality might be degraded by dust, foreign substance, adhesive substance, or other pollu on materials stuck in the printer head or inside the printer. When dirty, clean the print head as follows: ※... -
Page 27: A Achment
SAT 23T US User Manual A achment www.satpcs.com.co...
