○ Standard Accessories
・Bio-Pyramid hood for CCD camera
MBP01-M75
・CCD-SET
Zoom lens
USB camera
M13VM550
WAT-03U2

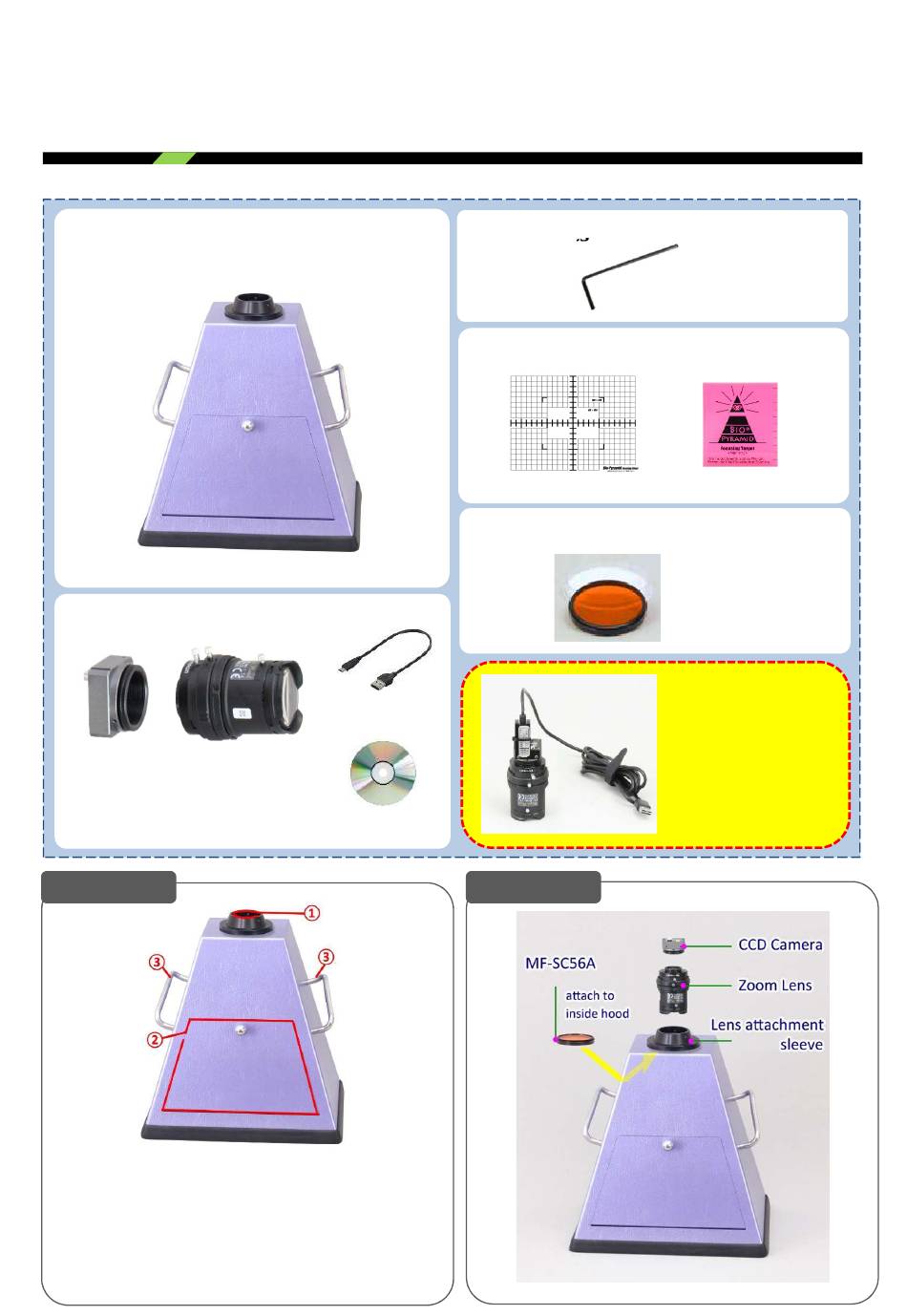

Parts name
❶ Lens Attachment Sleeve
❷ Observation window cover
❸ Handles
Open window cover to observe through
observation window. Window cover and
observation window cannot be detached.
Bio-Pyramid with CCD Camera
MBP01-CCD - User's Manual
USB Cable
Software
・Accessories
・Focusing Items
Focusing Sheet
・Sharp cut filter
Installation
Hex Wrench
Focusing Target
MF-SC56A
camera, lens,
USB cable are delivered
pre-assembled
for safety measure.
1
Advertisement
Summary of Contents for MeCan MBP01-CCD
- Page 1 Bio-Pyramid with CCD Camera MBP01-CCD - User’s Manual ○ Standard Accessories ・Bio-Pyramid hood for CCD camera ・Accessories MBP01-M75 Hex Wrench ・Focusing Items Focusing Sheet Focusing Target ・Sharp cut filter MF-SC56A ・CCD-SET USB Cable camera, lens, USB cable are delivered pre-assembled...
- Page 2 Table of Contents Software Installation（launch & Image Capture Soft） ・・・・ Lens & Filter attachment ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Lens Adjustment（Focus, Zoom, Shooting range） ・・・・・・ ・・ Software operation（Capture, Folder Selection, Save） ・・・・・・・・・・・・・・ Pinpoint setting（Black/White, Gain） Camera Control（White Balance, Exposure, Gain）・・・・・・・・ Camera Control（Brightness, Contrast, Color, Saturation） ・・ Camera Control（sharpness・gamma・default）...
-
Page 3: Operating Procedure
Operating Procedure For gel documentation procedure, please skip to “Software Operation” Software Installation 1. Copy Image Capture Software to PC Please check PC’s operating environment before installation. CD-ROM will not be required for operation once soft is copied. (no license limit) Required system Recommended system 800MHz or better... - Page 4 Lens & Filter Attachment 3. Attaching camera and lens to Bio-Pyramid Have Camera set, Hex wrench, Bio Pyramid hood and Filter ready. ❷ Install lens and tighten the screw on the ❶ Turn the Bio-Pyramid hood upside down side of hood with hex wrench. and install filter from inside the hood.
- Page 5 4. Aperture, Zoom, and Focus Adjustment Adjusting lens for appropriate focusing/shooting coverage while checking image on display Connect USB camera to PC (with USB cable) and launch image capture software. The setting explained here start with minimum zoom (= widest shooting coverage) which make it easy for focusing.
- Page 6 Image Capture Soft - Basic Operation 5. How to capture image and save This process is operated from PC Please see for pinpoint shooting conditions setting ❸ Capture Image. ❷ Select Folder to Save ❶ Launch Capture soft Click “SNAP SHOT” Click “SAVE FOLDER.”...
- Page 7 Pinpoint Setting 6. Pinpoint setting with Camera Control Detailed image setting with Camera Control for when it’s difficult to visualize band with default. Steps explained here should solve most problem (depending on the condition of the gel) and you can leave rest of setting as a default. * Camera should be connected to PC for setting.
-
Page 8: Camera Control Window
Camera Control window 7. Characteristics of Various Settings When it is difficult to capture clear image with pinpoint setting, make fine adjustment from Camera Control window. Here explains each item in camera control window in detail. ① Launch Camera Control ●... - Page 9 ④ Brightness - Default Value ・・ 0 (adjusting range －128 – 127) ● Brightness adjustment. Higher value for brighter and lower value for darker image. ● Adjust when band looks too dark. Brightness Value Larger Smaller = brighter = darker ⑤...
- Page 10 ⑧ Sharpness - Default Value ・・ 1 (adjusting range 1 – 4) ● Image sharpness adjustment. ● Please use with default value. ● Increasing value provide more sharpness but comes also with more image roughness Value: 1 Value: 4 ⑨ Gamma - Default Value ・・ 100 (adjusting range 48 – 300) ●...
-
Page 11: Pc And Software
PC and Software 9. About this manual ● Operation system which this Instructions is based on is windows 7/32bit. 10. Compatible OS NOT compatible with Windows XP, Apple product Windows Vista 32bit / 64bit Windows 7 32bit / 64bit Windows 8 32bit / 64bit Windows 10 32bit / 64bit... - Page 12 MBP01-CCD - Specification Maximum Shooting Area 265 x 205mm (interior dimension at the bottom） Shooting Distance – distance to the lens Approximately 290 mm Filter size φ52mm size camera filter Observation window transmission rate Max 0.09% Average 0.02 % (range: 220-450nm) * measured value, not guaranteed value W 287 x D 227 mm（= exterior dimension）...
