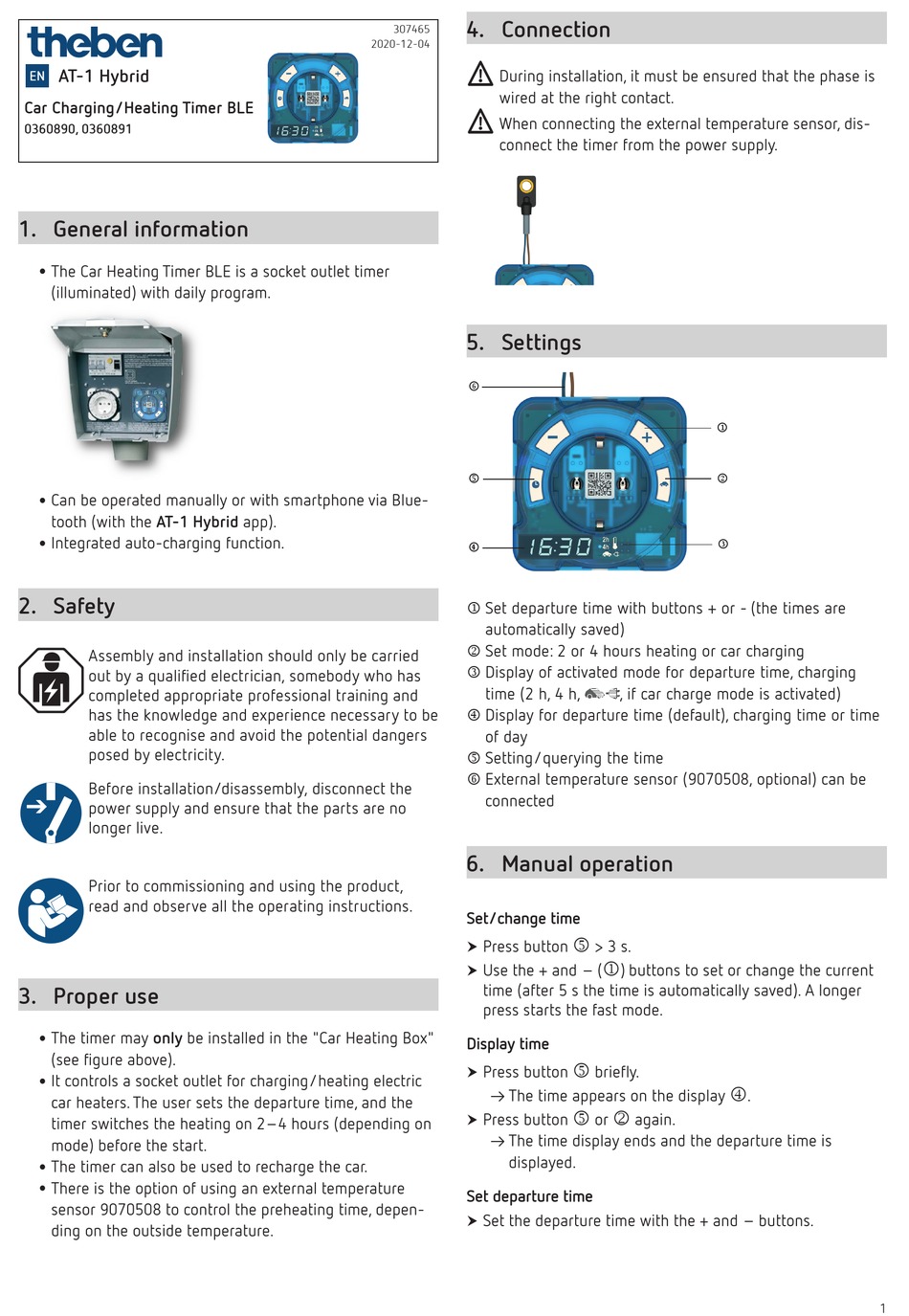

Theben AT-1 Hybrid Operating Instructions

AT-1 Hybrid
EN
Car Charging/Heating Timer BLE
0360890, 0360891

1. General information

•
The Car Heating Timer BLE is a socket outlet timer
(illuminated) with daily program.
•
Can be operated manually or with smartphone via Blue-
tooth (with the AT-1 Hybrid app).
•
Integrated auto-charging function.

2. Safety

Assembly and installation should only be carried
out by a qualified electrician, somebody who has
completed appropriate professional training and
has the knowledge and experience necessary to be
able to recognise and avoid the potential dangers
posed by electricity.
Before installation/disassembly, disconnect the
power supply and ensure that the parts are no
longer live.
Prior to commissioning and using the product,
read and observe all the operating instructions.

3. Proper use

•
The timer may only be installed in the "Car Heating Box"
(see figure above).
•
It controls a socket outlet for charging/heating electric
car heaters. The user sets the departure time, and the
timer switches the heating on 2–4 hours (depending on
mode) before the start.
•
The timer can also be used to recharge the car.
•
There is the option of using an external temperature
sensor 9070508 to control the preheating time, depen-
ding on the outside temperature.

4. Connection

307465
2020-12-04
!
During installation, it must be ensured that the phase is
wired at the right contact.
!
When connecting the external temperature sensor, dis-
connect the timer from the power supply.

5. Settings





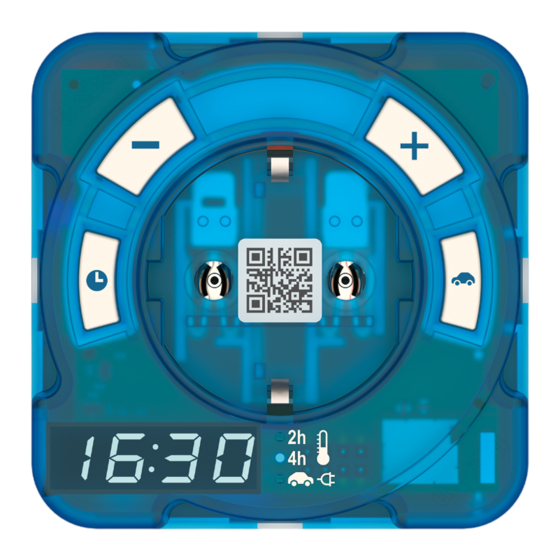

 Set departure time with buttons + or - (the times are
automatically saved)
 Set mode: 2 or 4 hours heating or car charging
 Display of activated mode for departure time, charging
time (2 h, 4 h,
 Display for departure time (default), charging time or time
of day
 Setting/querying the time
 External temperature sensor (9070508, optional) can be
connected

6. Manual operation

Set/change time
Press button
†
Use the + and – (
†
time (after 5 s the time is automatically saved). A longer
press starts the fast mode.
Display time
Press button
†
▻ The time appears on the display
Press button
†
▻ The time display ends and the departure time is
displayed.
Set departure time
Set the departure time with the + and – buttons.
†



, if car charge mode is activated)
 > 3 s.
 ) buttons to set or change the current

briefly.

 or  again.
.
