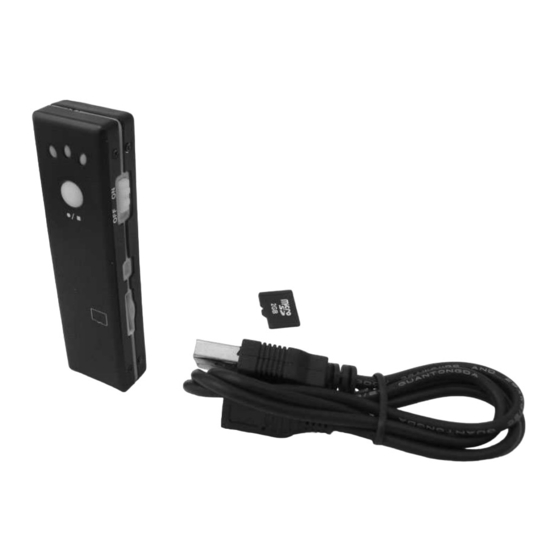

micro DV Camcorder / WebCam
Thank you for purchasing the micro DV Camcorder / Web Cam DVR-007. Its ultra small size,
light weight and excellent audio and video resolution lends itself to many applications..
I Product Features
Small light design 0.7 oz. (21 g) with plastic clip can be worn in a shirt pocket
to hat, belt, RC Cars, Boats, Airplanes, Helicopters, model rockets, Robots, your pet and anything you
can think of.
Amazing DVD quality 720X480 at 30 fps video with audio from built in sensitive
microphone and 1280*1024 still image resolution.
USB Plug and Play – Looks and works like a thumb Drive!
Can be used as a Webcam with included Windows Drivers, works with Skype, MSN,
Yahoo and AIM and many surveillance programs.
2 hour operation from internal Lithium battery with built-in USB charger
Tiny 74 x 21 x 13mm (2.8 x 0.8 x 0.5inches)
Supports AVI video format.
Amazing low light capabilities for a camera this small.
Supports USB1.1 and USB2.0.
Support up to 8GB Trans-flash SD card.(maximum)
model DVR-007
User Manual
or attached
Advertisement
Table of Contents
Summary of Contents for TME DVR-007
- Page 1 DV Camcorder / WebCam model DVR-007 User Manual Thank you for purchasing the micro DV Camcorder / Web Cam DVR-007. Its ultra small size, light weight and excellent audio and video resolution lends itself to many applications.. I Product Features Small light design 0.7 oz.
- Page 2 II Operation 1. Charging The camera has a built-in lithium rechargeable battery. Please completely charge the battery before you begin using your new camera. Charging is as follows: 1.) Connect the supplied USB cable to the camera. 2.) Connect the other end of cable to a USB connector on you computer. When you plug it in, the red indicator light will flash twice and remain on, the green light flashing indicates a charge is in progress.
- Page 3 3）To stop recording, momentarily press the “Record/Stop” button again, The red light will flash rapidly and go off, your video is stopped and saved automatically. After saving, the green indicator light will remain on for 60 seconds. If you want to continue shooting video, momentarily press the “Record/Stop”...
- Page 4 5． ． ． ． Power off For long term storage we recommend you power your unit off. Please note this will reset the date and time. Push the “ON/OFF” button to “OFF”. This immediately turns off the camera. DO NOT TURN OFF WHILE RECORDING VIDEO. Stop the recording and allow the video to be saved before shutting off power..
- Page 5 Enabling your Web Cam When you plug in you camera into your USB port on your computer the default mode is to appear as an external drive to your computer. Momentarily press the “Record/Stop ” button to enter the web cam mode and enjoy using your camera for video conferencing and security surveillance applications.
