- Page 1 User Manual Envy Line™: G Series™ Non-Powered Mattress System with Optional Control Unit Rev. 2.0 #8047 SIZEWISE 06.23.2014 User Manual...
-
Page 2: Table Of Contents
Table of Contents Definition of Symbols ........................2 Manual Definitions ......................... 2 Warnings and Cautions ........................2 Device Information ......................... 3 Description of the Device ....................... 3 Specifications ..........................4 Unpacking and Set-Up Instructions ....................6 Operating Instructions ........................8 Modes of Operation ........................ -
Page 3: Definition Of Symbols
Definition of Symbols Manual Definitions Throughout this manual different type fonts and icons are used to aid user readability and understanding of the content. Below are some examples. Standard Text Used for regular information. Bold Face Text Emphasizes a word or phrase. NOTE: SETS APART SPECIAL INFORMATION OR IMPORTANT INSTRUCTION CLARIFICATION. -
Page 4: Device Information

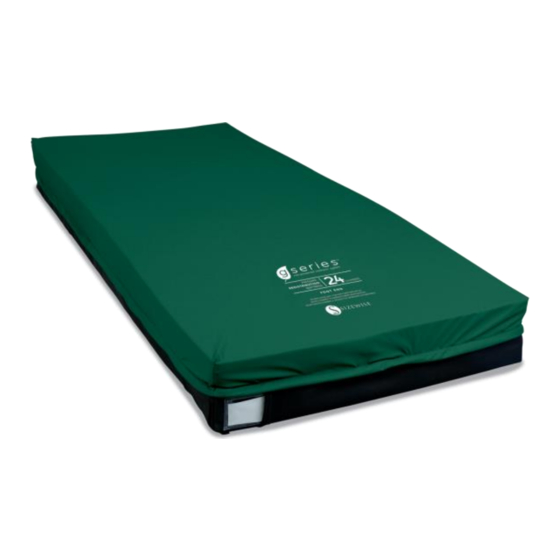

Device Information Description of the Device The system consists of a non-skid mattress base, a series of vented/foam filled air chambers, that are encased in a foam cavity, and a low friction, anti-shear top cover. A viscoelastic comfort layer foam topper is laminated to the top of the foam cavity and serves as the support surface underneath the patient. -
Page 5: Specifications
Specifications Dimensions 32” Wide Mattress ........7” X 32” X 80” / 17.5 cm X 81 cm X 203 cm 35” Wide Mattress ........7” X 35” X 75” / 17.5 cm X 89 cm X 191 cm 7” X 35” X 80” / 17.5 cm X 89 cm X 203 cm 7”... - Page 6 Mattress Cover The Mattress Cover is available in two different materials: Nylon Taffeta-Nylon Taffeta offers a bacteriostatic, flame resistant, fluid proof and tear resistant mattress cover. Nylon Taffeta is a cost effective mattress cover. Extreme CARRFLEX is a Polycarbonate-Polyurethane material blend that offers a bacteriostatic, flame resistant, fluid proof and tear resistant mattress cover.
-
Page 7: Unpacking And Set-Up Instructions
Unpacking and Set-Up Instructions Unpacking/Parts Breakdown Foam Comfort Layer:..A layer of high density viscoelastic memory foam for added patient comfort is laminated to a polyurethane foam layer that is then laminated to the foam cavity. Foam Cavity: ......A foam cavity is used to contain the air cells and stabilize the entire surface. - Page 8 Set-Up on Sizewise Bed Frames Follow these steps for installation on Sizewise (and most non-Sizewise) bedframes: 1. Verify mattress is the correct size for the bed frame top deck. Refer to Side Rail Entrapment Guidelines. (Table of Contents) 2. Place bed frame in flat position.
-
Page 9: Operating Instructions
Operating Instructions Modes of Operation The NP24, NP12, NP9 and NP4 mattresses provide static non-powered pressure redistribution. Using the optional control unit provides alternating pressure in 10, 15, 20 or 25 minute cycle times. 1. Place the NP24, NP12, NP9 and NP4 mattress on the bed frame with the sloped heel zone and connectors at the foot of the bed. -
Page 10: Keypad Quick Reference
Keypad Quick Reference Cycle Time Alarm Reset Press to change the cycle Resets the audible alarm. time. Mode Soft Push to select either “Static” Press to decrease firmness or “Alternate” therapy to the mattress. mode. Firm Autofirm Press to increase firmness to Quickly inflates mattress to the mattress. -
Page 11: Patient Care Functions
DO NOT leave a prone patient on the mattress surface. If the patient is unable to move without help, the patient’s airway may be compromised. If the patient is to be kept prone for an extended period of time, consult a Sizewise representative for assistance. Bedpan Placement & Removal Position the patient’s hips over the center of the mattress. -
Page 12: Removing The Patient From The Mattress Surface
The pressure in the center section of the mattress will lower to make inserting the bedpan easier. The firmness setting may be adjusted to increase the firmness of the center section after the pan is placed in position. When the bedpan is to be removed, logroll the patient off the bedpan and remove it. Readjust the firmness level to the appropriate setting. -
Page 13: Safety Tips
If the patient would have any clinical conditions that could result in risk of falling or improperly lying in bed, the bed should be left at its lowest setting and in flat position when not attended. Sizewise recommends the use of bed rails if they are available. There are seven zones of bed rail entrapment. -
Page 14: Storage And Disposal
DO NOT expose the control unit to humidity greater than 95%. End-of life Sizewise products must be disposed of properly according to local laws and regulations. Please contact Sizewise or your local authorities for disposal and recycling options. -
Page 15: Mattress Cleaning Instructions
Mattress Cleaning Instructions WARNING and CAUTION: It is recommended that gloves and protective clothing be worn at all times during cleaning and disinfecting. Do not autoclave. NOTE: Improper cleaning, rinsing or the incorrect use of cleaning agents can lead to premature fabric discoloration and breakdown of the fabric’s fluid-resistance, stain-resistance and fabric strength. - Page 16 4. Allow the mattress shell to remain wet with disinfectant solution for the manufacturer’s recommended contact time. 5. Stains on the mattress top cover may be treated using an approved stain remover, according to the manufacturer’s recommendations. 6. Rinse all surfaces of the mattress with fresh water and clean cloth to remove chemical and organic residue.
- Page 17 Extreme CARRFLEX Polycarbonate/Polyurethane Mattress Top Cover The polycarbonate polyurethane material is resistant to a wide variety of hospital cleaners and resists breakdown with disinfectants and cleaners based on Chlorine, Alcohol, Peroxide, Quaternary Ammonium, Chloramine and Phenol. Personal Protective Equipment should always be used as directed by the disinfectant’s Material Safety Data Sheet.
-
Page 18: Approved Chemical List Extreme Carrflex
Approved Chemical List for Extreme CARRFLEX Polycarbonate/Polyurethane Mattress Top Cover PRODUCT CONCENTRATION ACTICHLOR PLUS 2000 PPM ACTIMAX ACCORDING TO MANUFACTURERS SPEC ALCO-DC-7 ACCORDING TO MANUFACTURERS SPEC ALCO SANNI ACCORDING TO MANUFACTURERS SPEC ARJO DISINFECTANT ACCORDING TO MANUFACTURERS SPEC ASEPTI ACTIVE WIPES READY TO USE ASEPTIC ACTIVE LIQUID ACCORDING TO MANUFACTURERS... - Page 19 SPEC LEMEX ACCORDING TO MANUFACTURERS SPEC MEDIWIPES DISINFECTION (SULCO ACCORDING TO MANUFACTURERS LIMITED) SPEC MILTON ANTI-BACTERIAL TABLETS 1 TABLET: 2 LITRES OF WATER MULTIKLEEN ACCORDING TO MANUFACTURERS SPEC NEUTRAL DETERGENT WIPES ACCORDING TO MANUFACUTRERS (REYNARD HEALTH SUPPLIES) SPEC NON ACID BATHROOM CLEANER ACCORDING TO MANUFACTURERS (CERTO) SPEC...
-
Page 20: Laundry Instructions
VIRACLEAN (WHITELY MEDICAL) ACCORDING TO MANUFACTURERS SPEC VIREX (DIVERSEY) ACCORDING TO MANUFACTURERS SPEC VIRKON (DUPONT) 5% VIRKON (1:20 WATER) Equipment must be disinfected using an EPA registered, hospital-grade disinfectant, according to the manufacturer’s recommendations for use. Laundry Instructions If additional cleaning is necessary, top covers may be removed and laundered using standard hospital disinfectant/detergent. -
Page 21: Control Unit Cleaning Instructions
Control Unit Cleaning Instructions NOTE: Hand clean only. DO NOT place in sterilization room or chamber. 1. Personal Protective Equipment should be used as directed by the Material Safety Data Sheet for the disinfectant. 2. Prepare the disinfectant according to the manufacturer’s recommendations. 3. -
Page 22: Maintenance
Check the items on this chart at the indicated intervals. If any of the items are loose, worn, bent or distorted immediately have them checked and/or repaired by an authorized Sizewise technician. Frequent maintenance and servicing will improve performance and extend mattress life. -
Page 23: Troubleshooting
Check power cord for any damage. Unplug the Control Unit and check fuses located near the main ON/OFF switch. Replace fuse/s as necessary. NOTE: If the troubleshooting process does not solve the problem please contact a Sizewise representative for service. -
Page 24: Warranty Information
NP4, NP9, NP12, NP24 and NP Stretcher Pad Air System – Sizewise warrants, to the original purchaser, if within the first 36 months from the date of purchase, a defect is found in material or workmanship; we will inspect and repair or replace the product at no charge. If, within months 37 through 60, a defect is found in material or workmanship, we will inspect and repair or replace the defective item at a charge not to exceed 50% of the prevailing retail price at the time of the return. -
Page 25: User Assistance Information
User Assistance Information For questions or assistance with this product, contact Sizewise at: Sizewise 1600 Genessee Suite 950 Kansas City, Missouri 64102 Phone: 1-800-814-9389... - Page 26 Kansas City, Missouri 64102 Phone: 1-800-814-9389 sizewise.net Sizewise and Sizewise Rentals are trademarks of Sizewise Rentals, L.L.C. All specifications, equipment and prices are subject to change without notice. Photos and drawings are representative of the products and may vary slightly from actual production models.
