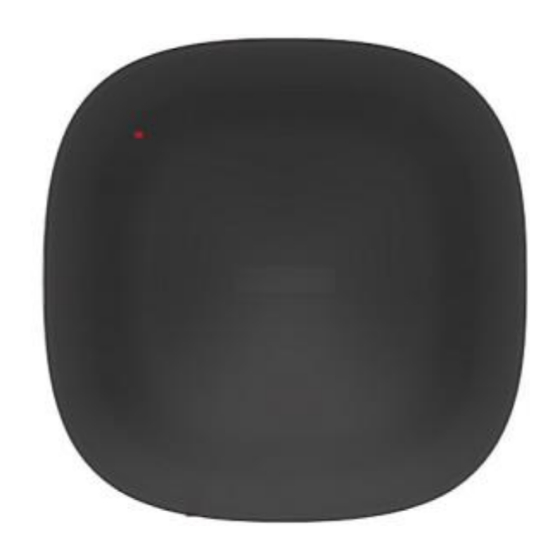

IR Transceiver User Manual
HKWL-IR02W
1. PRODUCT OVERVIEW This Smart IR is a Wi-Fi based IR Blaster. By adding or DIY learning the IR
codes to the APP, it can remotely control IR based home appliances such as TV's, airconditioners
etc. via internet connection and the Mirabella Genio phone APP.
2. PRODUCT FEATURES
⚫ Compatible with Amazon Alexa and Google Assistant
⚫ Working in 802.11 b/g/n 2.4GHz wireless network (no hub required)
⚫ Wi-Fi network configuration with EZ (Smart Config) and AP(Access Point) mode
⚫ Remote control all your IR appliances through APP
⚫ A full list of IR brands saved in IR codes cloud library
⚫ DIY IR codes learning, control whatever appliance through your mobile
⚫ Input: 5V 1A Micro USB
⚫ CE, FCC, RoHS certified
Advertisement
Summary of Contents for MIRABELLA HKWL-IR02W

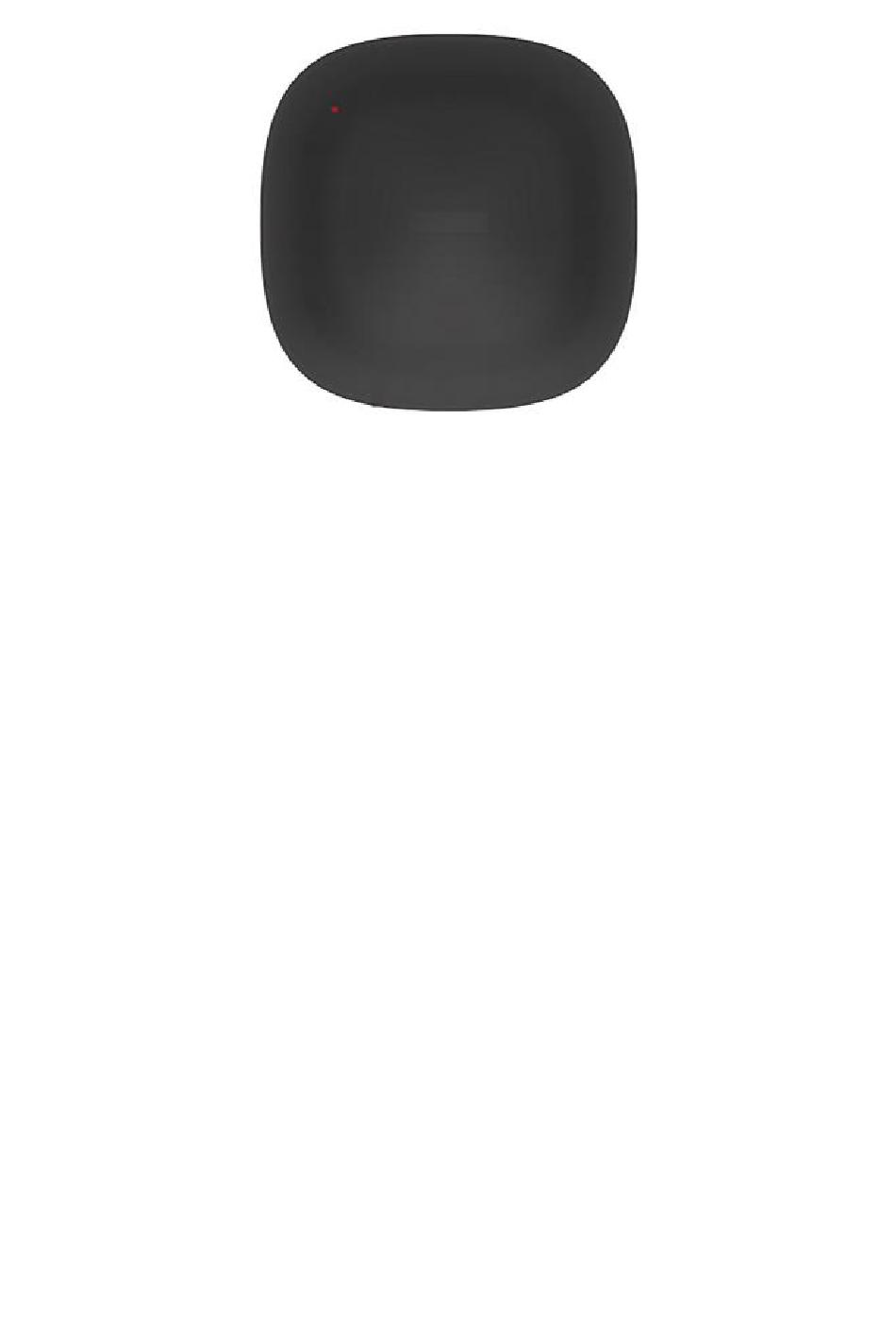

- Page 1 1. PRODUCT OVERVIEW This Smart IR is a Wi-Fi based IR Blaster. By adding or DIY learning the IR codes to the APP, it can remotely control IR based home appliances such as TV’s, airconditioners etc. via internet connection and the Mirabella Genio phone APP. 2. PRODUCT FEATURES ⚫...
-
Page 2: Product Structure
⚫ Make sure your Wi-Fi network work in 802.11 b/g/n 2.4GHz and internet available; ⚫ Download the Mirabella Genio APP from Apple store or Google Play; ⚫ Register an account in APP and login with your email address or Mobile phone number;... -
Page 3: Specifications
5.1 Scanning the following QR code to download APP for Android and iOS System. Or you can download the APP named as “Mirabella Genio” from Apple store and Google Play. 5.2 Launch the APP and register an account with your email address then login;... - Page 4 Android & iOS 6. ADD AND REMOVE DEVICE IN YOUR APP ACCOUNT 6.1 Launch the APP and login, Click ADD DEVICES or + -> All -> Infrared Universal Remote Control to start the device adding. 6.2 TWO WAYS TO ADD DEVICES ⚫...
- Page 5 ⚫ AP mode Smart IR will blink fast in red when powered on. Press and hold the button for 5 seconds and then release. The LED indicator will blink slowly in red. Choose AP Mode, select the Wi-Fi network your mobile is connected to and enter the Wi-Fi password.
- Page 6 6.3 Users can re-name or share the device after Wi-Fi connection is finished. Make sure the device is working in EZ/AP mode, if the APP works in EZ/AP mode. 6.4 Remove device 1) Click “ ” to enter into next interface as shown in picture below, Click “Remove Device” to delete this device from APP;...
- Page 7 Enter into Skyworth remote control interface and click the power button. If the power button works (means to turn on/turn off TV), click “Select this one”, then Skyworth TV remote control is added in list. Click “Add remote control” to add next one. 7.2 Add IR codes by DIY learning 1) Click “DIY”, then click “Next step”...
- Page 8 On DIY learning, place remote controller at position ① on the smart IR blaster (shown as below pic ture) within 3 CM so that the IR codes could be completely learned. Then short press the button th at you want to learn on remote controller. It will come into next step after DIY learning is finished. Name this button and save it.
- Page 9 ⚫ At least one device under your Mirabella Genio account. 8.2 Add devices in Mirabella Genio app (Refer to App Instruction) You can skip this part if you've already added some devices to your Mirabella Genio account. ⚫ Download Mirabella Genio app(Refer to App Instruction) Search "Mirabella Genio"...
- Page 10 Note: ❖ Echo needs to go through “Discover” again after the device is re-named on Mirabella Genio APP. ❖ If the Echo cannot find the devices added in Mirabella Genio APP, please disable the Mirabella Genio skill first and go through the Mirabella Genio skill “ENABLE”, APP account login and device discover again to make Echo voice control work.
- Page 11 9.2 Add devices in Mirabella Genio app (Refer to App Instruction) You can skip this part if you've already added some devices to your Mirabella Genio account. And refer to 8.2 Add devices in Mirabella Genio app for adding devices in Mirabella Genio APP.
- Page 12 9.4 Control your smart devices through Google Home Now you can control your smart devices through Google Home. Here below is an example of how to voice control the device “TV” with Google Assistant: ❖ Ok Google, turn on/off TV 10.
