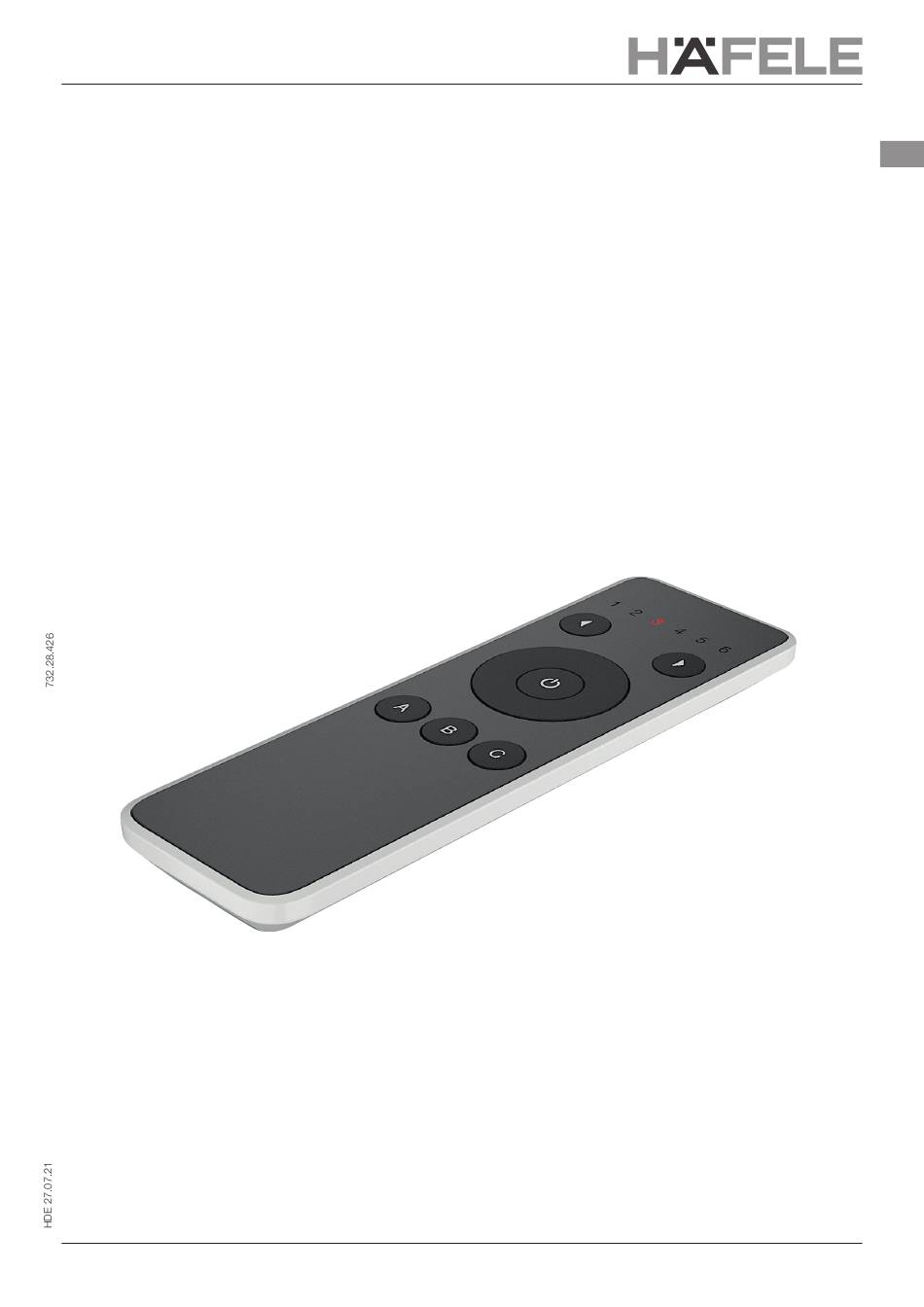

Connect Mesh Remote Control
Version 2.0
en
1/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 850.00.062 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Häfele 850.00.062

Summary of Contents for Häfele 850.00.062

  • Page 1 Connect Mesh Remote Control Version 2.0 1/10...

  • Page 2: Change History

    1. Change History Version Date Changes 06/2020 Initial Documentation 05/2021 Added new functions 2/10...

  • Page 3: Table Of Contents

    Table of contents 1. Change History _________________________________________________________________________________________________________2 2. Connect Mesh Remote Control (Mesh Mode) _____________________________________________________________________________4 2.1. What is the Connect Mesh Remote Control? ________________________________________________________________________________4 2.2. What is the Mesh Mode? ________________________________________________________________________________________________4 2.3. Functions Overview _____________________________________________________________________________________________________4 2.4. Setup_________________________________________________________________________________________________________________5 2.5. Changing the Channels__________________________________________________________________________________________________6 2.6.

  • Page 4: Connect Mesh Remote Control (Mesh Mode)

    2. Connect Mesh Remote Control (Mesh Mode) 2.1. What is the Connect Mesh Remote Control? The Connect Mesh Remote Control is a smart wireless multi-purpose controller for BLE Mesh devices such as: • lights (Monochrome, Multi-White/ Tunable-White, RGB) • motors (eDrives, Lifts, Furniture-Locks) The Remote Control offers direct control of the most important lighting settings (brightness, color temperature, color and saturation) for 6 individual groups and allows to store and activate three individual scenes (buttons A,B and C) 2.2.

  • Page 5: Setup

    Internal hidden magnet Removable Battery Compartment Cover [Image 2] 2.4. Setup Reset Button Battery Compartment (CR2032) [Image 3] Open the battery compartment on the backside and insert two button cell batteries (CR2032). The LED of the first channel flashes regularly. Open the Connect Mesh app and tap on "Add devices". The remote control will be displayed in the list of devices found.

  • Page 6: Changing The Channels

    2.5. Changing the Channels Every Connect Mesh Remote Control has 6 channels symbolized by the 6 numbers on top. Each channel can be individually assigned to a group in the Häfele Connect Mesh App and allows to control all devices in the group afterwards.

  • Page 7: Update Mode

    2.10. Update Mode In case the firmware is outdated, the user will be notified in the Connect Mesh App. Then the user can start and perform the firmware update of the mesh device. More information in the specific Häfele Connect Mesh App. Option 1: Update via App If the Mesh device is provisioned, the update can be done by: Click on Mesh device and click on edit icon and scroll down to the bottom of the page.

  • Page 8: Connect Mesh Remote Control (Standalone Mode)

    3. Connect Mesh Remote Control (Standalone Mode) 3.1. What is the Standalone Mode? The Standalone-Mode of the Connect Mesh Remote Control is its optional mode of operation. In this mode the Remote Control device can be added to a new BLE Mesh network by self provisioning without the Connect Mesh App.

  • Page 9: Provisioning And Configuration Of A Connect Mesh 6 Way Distributor

    3.3. Provisioning and Configuration of a Connect Mesh 6 way distributor Choose a configuration [Image 6] As soon as the Connect Mesh Remote Control is in Provisioner Mode, you can select one of the following buttons to provision and configure BLE Connect Mesh 6 way distributors within reach. The Connect Mesh 6 way distributor you would like to add to your network has to be in Provisioning Mode.

  • Page 10: Standalone Mode Channel 7

    3.5. Standalone Mode Channel 7 The remote control has been added an additional 7th channel (in Standalone Mode only!). To reach the 7th channel, you can click next to the 6th channel or left before the 1st channel. [Image 7] All LEDs will be ON and identify the 7th channel.
