Summary of Contents for Star SCD122U

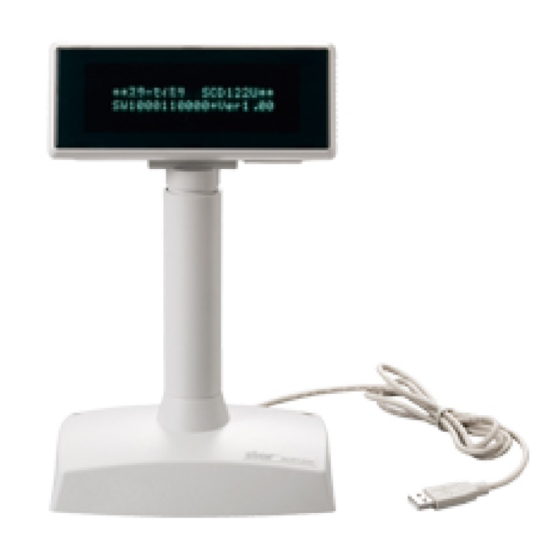

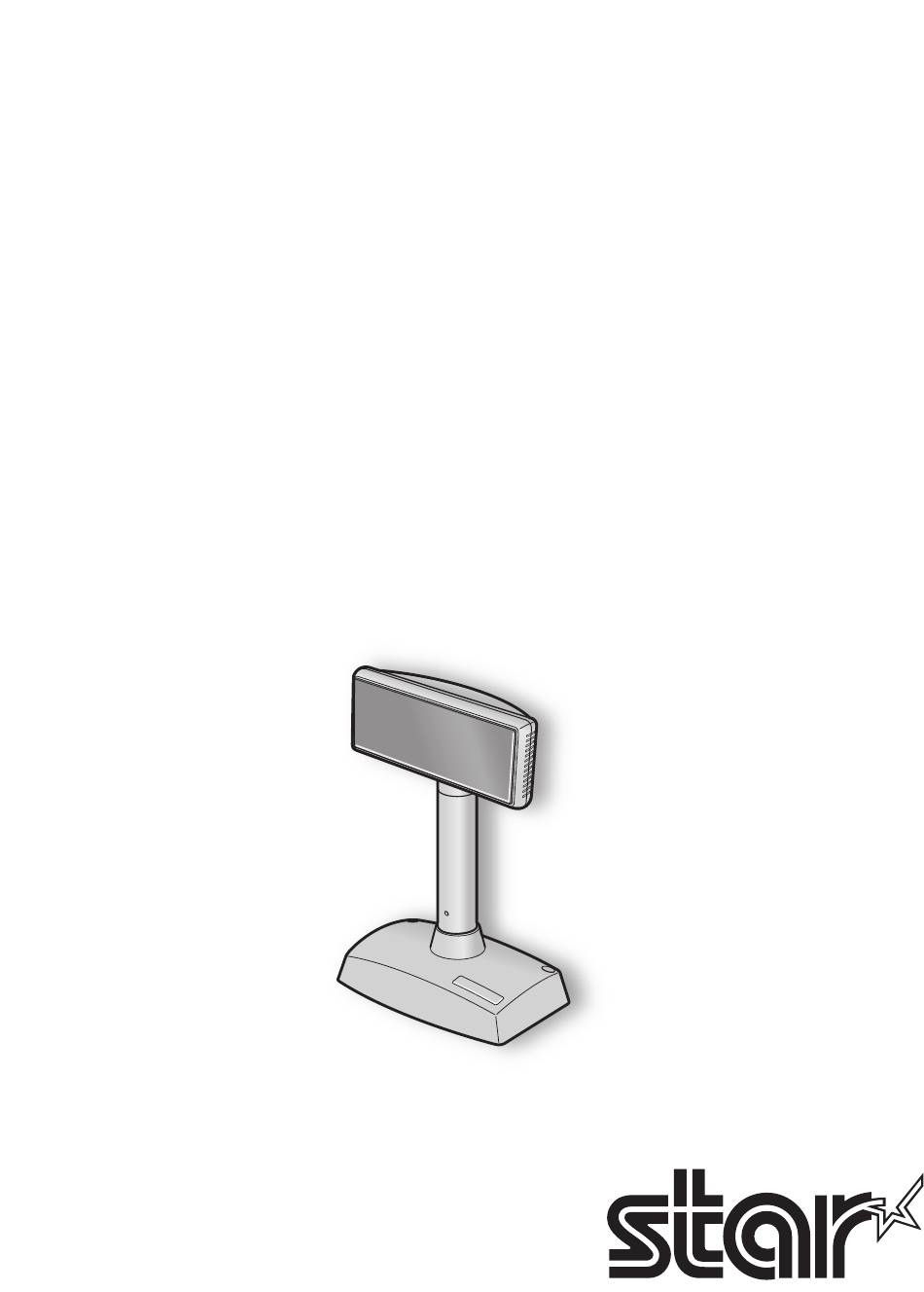

- Page 1 Customer Display SCD122U Hardware Manual...
- Page 2 Trademark acknowledgments SCD122U: Star Micronics Co., Ltd. Notice • All rights reserved. Reproduction of any part of this manual in any form whatsoever, without STAR’s express permission is forbidden. • The contents of this manual are subject to change without notice.
- Page 3 3 Be sure to connect the USB port. 3 If water or other liquid spills into this equipment, pull out the USB cable immediately and contact your dealer or a Star service center for advice. Continued usage may lead to fire.
- Page 4 CAUTION 3 Do not use in locations subject to high humidity or dust levels. Excessive humidity and dust may cause equipment damage, fire, or shock. 3 Do not place heavy objects on top of this product. Never stand or lean on this prod- uct.
-
Page 5: Table Of Contents
4. Setting the DIP Switch ..........................8 5. Specifications ............................10 5-1. General Specficatons .......................10 6. Character Code List ..........................12 6-1. Internatonal Character Set Lst ....................12 6-2. Character Code Table .........................12 Please access the followng URL http://www.star-m.jp/eng/dl/dl02.htm for the latest revson of the manual. -
Page 6: Unpacking
1. Unpacking 1-1. Unpacking After unpacking the unit, check that all the necessary accessories are included in the package. Stand (2 items) Stand Plate (2 units) Display (1 unit) Screw (4 pieces) CD-ROM ( 1 piece ) Safty Instruction Sheet Pillar A ( 1 piece ) Pillar B... -
Page 7: Installation Examples
2. Installation Examples This customer display consists of three pieces: the display unit, support pillar, and base stand. For the base stand, two choices are available: a surface-mount stand that can be moved freely, and a fixed-mount stand that is screwed onto a table or the like. To bring the display unit to an appropriate viewing height, the supplied support pillars can be combined to attain four different heights. -
Page 8: Setting Up
3. Setting Up 3-1. Using the Surface-Mount Stand 1) Route the USB interface cable through the surface-mount stand. 2) Insert the stem of the display unit into the surface-mount stand until it clicks into place. 3) Pull the USB interface cable out of the cutout in the surface-mount stand as shown below. 4) Attach the stand plate to the surface-mount position of the surface-mount stand, and tighten it with four screws. -
Page 9: InstallNg Support PLlars
3-2. Installing Support Pillars To use only one of the support pillars, install support pillar C. To use two of them, install support pillars B and C. To use three of them, install support pillars A, B, and C. Support pillar A Support pillar B Support pillar C Support pillar C... - Page 10 3-2-2. Using Two Support Pillars 1) Route the USB interface cable through support pillar C, and insert the stem of the display unit into support pillar C. 2) Insert support pillar B into support pillar C until it clicks into place. 3) Insert support pillar B into the surface-mount stand until it clicks into place.
-
Page 11: UsNg The FXed-Mount Stand
3-3. Using the Fixed-Mount Stand 1) Route the USB interface cable through the fixed-mount stand and pull it out of the cutout in the fixed-mount stand. 2) Insert the stem of the display unit into the fixed-mount stand until it clicks into place. 3) Tighten the three screws to mount the fixed-mount stand onto a table or the like. -
Page 12: InstallNg The Software
3-4. Installing the Software Here is the procedure for installing the driver and utility software, which are stored on the sup- plied CD-ROM. The procedure applies to the Windows operating systems shown below. • Windows 2000 • Windows XP • Windows Vista 32-Bit (1) Turn ON the power to your PC to start Windows. -
Page 13: Setting The Dip Switch
4. Setting the DIP Switch A DIP switch located at the bottom of the display unit enables the various settings as shown in the table on the next page. The settings may be changed as follows. (1) Power OFF the host computer or disconnect the USB interface cable. (2) Remove the cover from the DIP switch located at the bottom of the display unit. - Page 14 See below Code page See below Cursor Active Inactive Emulation ESC/POS mode Star mode The factory setting has switches 2,3,7, and 8 ON, and the remainder OFF. International character set ■ Switch 5 Switch 4 Switch 3 Switch 2 Character set...
-
Page 15: Specifications
5. Specifications 5-1. General Specifications (1) Display unit Display type: vacuum fluorescent display tube Display characters: 40 characters (20 digits x 2 lines) Display color: Blue green Character composition: 5 x 7 dot matrix Character size: 3.5 x 5.0 mm Character type: 95 alphanumeric characters Graphic characters: 128 characters... - Page 16 Surface-Mount Stand Type 175mm 175mm 146mm 175mm 175mm 175mm Fixed-Mount Stand Type 175mm 175mm 60mm 175mm 175mm – 11 –...
-
Page 17: Character Code List
6. Character Code List 6-1. International Character Set List 6-2. Character Code Table Note: Characters 20(H) to 7E(H) vary with the setting of the international character set. • PC437 (USA,Standard Europe) : (00)H • Katakana : (01)H – 12 –... - Page 18 • PC860 (Portuguese) : (03)H • PC863 (Canadian-French) : (04)H • PC865 (Nordic) : (05)H • PC866 (CyrillicRussian) : (011)H • PC858 (Europe) : (13)H • Katakana 2 : (FF)H – 13 –...
- Page 19 1150 King Georges Post Road, Edison, NJ 08837-3729 U.S.A. Tel: (int+1)-732-623-5555, Fax: (int+1)-732-623-5590 ELECTRONIC PRODUCTS DIVISION STAR MICRONICS EUROPE LTD. STAR MICRONICS CO., LTD. Star House, Peregrine Business Park, Gomm Road, 536 Nanatsushinya, Shimizu-ku, Shizuoka, High Wycombe, Bucks, HP13 7DL, U.K. 424-0066 Japan Tel: (int+44)-1494-471111, Fax: (int+44)-1494-473333 Tel: (int+81)-54-347-0112, Fax: (int+81)-54-347-0709 STAR MICRONICS ASIA LTD.
