Summary of Contents for TELETRAC NAVMAN ELD
- Page 1 Teletrac Navman ELD Installation Guide 05/23/2017...

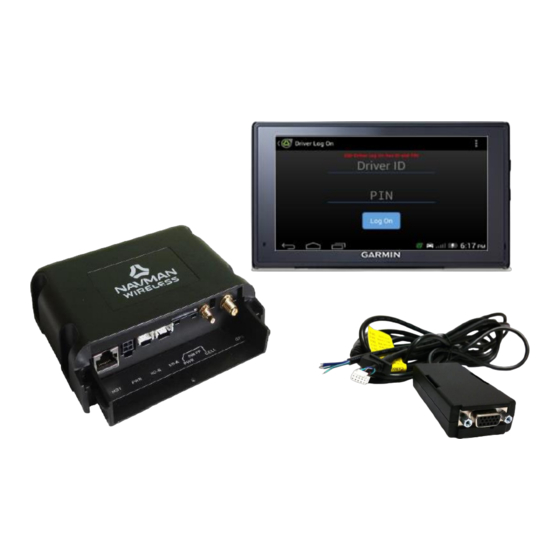

- Page 2 ELD Installation Parts Outline The Teletrac Navman ELD Certified solution is built on the Qube300, MNAV, JPOD/VPO hardware platform. Established installation process for these units must be applied. The information in this guide will provided a hardware overview and ELD specific information. For questions, please contact Teletrac Navman Field Service team at US.FieldManagers@teletracnavman.com...
- Page 3 Qube 300 Overview Qube300 1) Serial Port 1: RJ45 Connector Type – MNav and Driver ID 2) Power Connection: Constant Switched and Ground 3) Serial Port 2: 8 PIN Harness – SAT Modem, Temp 1-Wire, Serial Data Capture, ConEx 4) Serial Port 3: ConEx, JPOD, VPOD 5) SIM Card 6) GPS Antenna 7) Cellular Antenna...
-
Page 4: Power Connections
Power connections The power connections will be made to a location that is appropriate to the vehicle being installed, this may be the key switch, terminal block at fuse box, or other location deemed appropriate. A digital multi-meter should always be used to confirm connections. The Qube300 needs 3 connections for power: •... - Page 5 Antenna The antenna is a an all-in-one antenna with both the GPS and cellular in one piece. The antenna must be mounted in a location that provides a clear view of the sky with no metal above it. The antenna can be mounted to the inside of the windshield or covertly under the dash as long as the primary requirement of no metal blocking the view of the sky is observed.
- Page 6 MNAV 950 MNav 950 will be installed in a location that allows the driver easy access to use the display, but one that will not interfere with any functions of the vehicle or the drivers visibility of the road and mirrors.
- Page 7 JPOD – VPOD Vehicle Diagnostics Interface Cables One of the following vehicle diagnostics interface cables must be used. This is an ELD requirement and failure to properly install these interfaces will negate compliance. VPOD2 for OBDII vehicles...
- Page 8 Vehicle Diagnostics Interface Vehicle diagnostics will be interfaced using one of the available cables. The cable will be installed to the factory diagnostics connector. The Mack and Volvo specific cables will be installed using the proper method for those cables. 1.
- Page 9 ELD User Manuals Included in each hardware shipment the installation technician will find a user manuals and an ELD sticker. These documents must be left in the vehicle. Please leave this information with the customer contact or on the Driver's seat after the installation is completed.
- Page 10 Qube and Messaging functionality. An installer login is available as: 6789 After completing RIMU verification the installer should also check the ELD Indicator ( when functioning properly the Icon should be green ) by selecting the Icon and looking at the line items checking for any warnings, malfunction...
- Page 11 Teletrac Navman verification number – 877.778.2478 Before calling in for verification please be sure you have completed at least 2 ignition cycles of the installed Qube300 so the unit has pinged the Teletrac Navman servers and will speed up the verification process.
