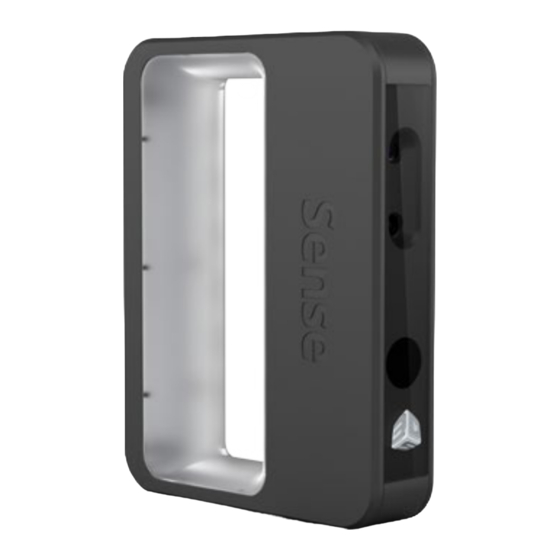

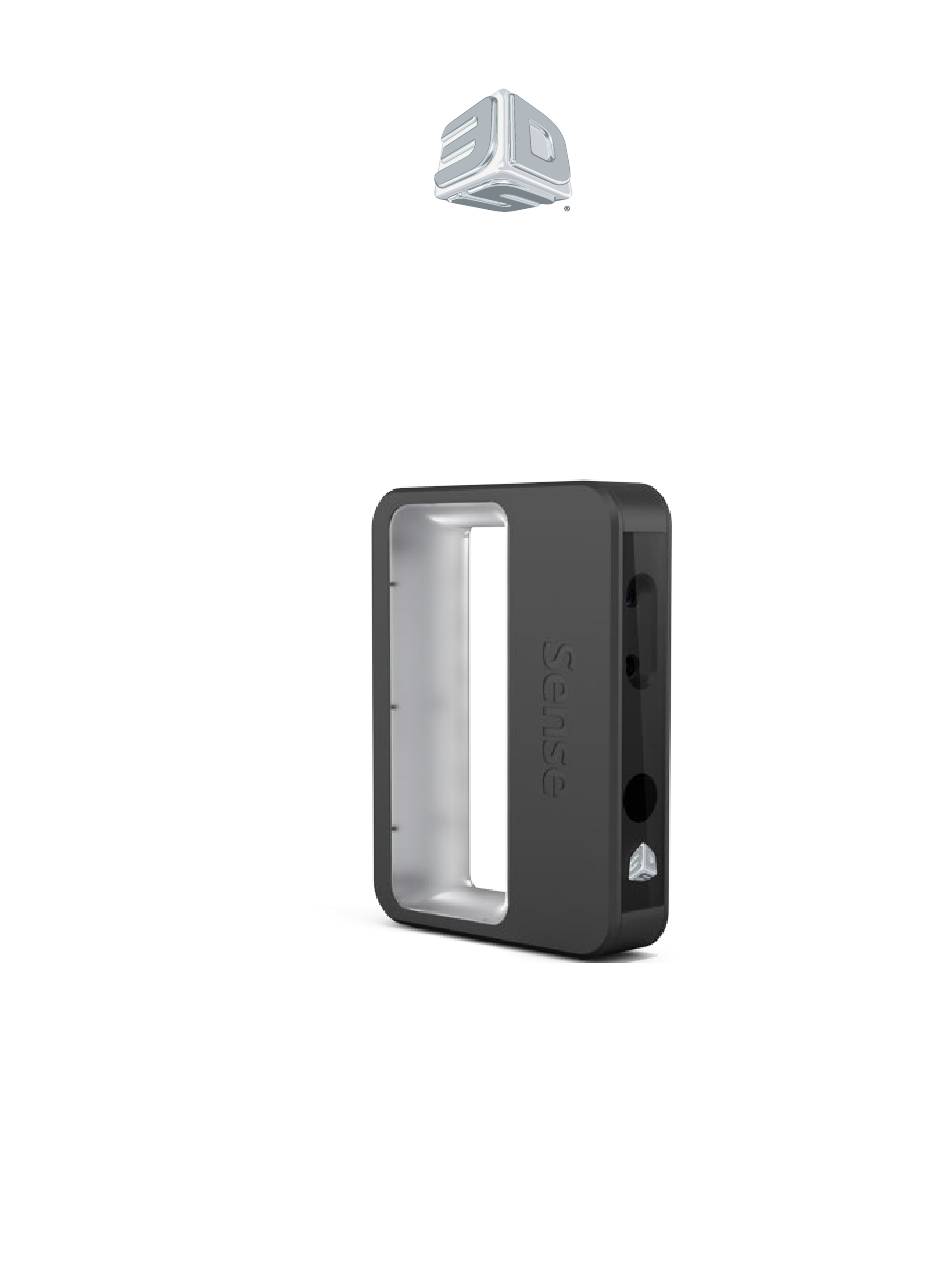

- Page 1 Sense ™ 3D Scanner User Guide See inside for use and safety information.
-
Page 2: Table Of Contents
SPECIFICATIONS AND REQUIREMENTS FOR YOUR SENSE 3D SCANNER . . . . . . . . . . . . . . . . -
Page 3: Introduction
3D Systems, Inc . Cubify, 3D Systems and the 3D Systems logo are registered trademarks, and Sense is a trademark, of 3D Systems, Inc . Use of the Cubify .com website constitutes acceptance of its Terms of Service and Privacy Policy . -
Page 4: Important Safety Information
Follow all safety rules in this section and observe all cautions and warnings in this guide . • To avoid damage to the laser projector, do not open the Sense 3D Scanner casing . Doing so will void your warranty . •... -
Page 5: Specifications And Requirements For Your Sense 3D Scanner
SPECIFICATIONS AND REQUIREMENTS FOR YOUR SENSE 3D SCANNER DIMENSIONS SUPPORTED OPERATING SYSTEMS • 17 .8 cm x 12 .9 cm x 3 .3 cm • Windows 7® (32-bit or 64-bit) • Windows 8® (32-bit or 64-bit) SOFTWARE DATA INTERFACE •... -
Page 6: Whats Included
. Make sure the email doesn’t get caught in your spam filter! Jot down your pin number; it will be used to activate your Sense 3D Scanner . Your scanner is now registered to your account in Cubify . -
Page 7: Download Your Sense Software
USB connector into the USB port on your computer and click on you Sense icon to open the software . • If you have never activated your 4-digit pin code, click on activation code from Cubify.com and retrieve your code from “My Devices”... -
Page 8: Scanning Your First Person Or Object
7SCANNING YOUR FIRST PERSON OR OBJECT Choose what you would like to scan. If scanning a person, you have a choice of scanning the person’s head or their full body. Click Person and select your choice. If you want to scan an object, click on the Object and choose the appropriate size for your object to begin your scan. -
Page 9: Scan Settings
Scan Settings • Orientation- toggle between landscape and portrait scan view orientation . • Resolution- determines the density of the scan data acquired; higher resolution will yield denser scans but can slow down the capture speed . • Object Size- determines the size of the scan volume; you can set this according to the size of the object you are scanning. -
Page 10: Enhance Tools
Enhance Tools Smooth • To soften jagged edges on your scan, click on the tool . • To remove unwanted areas, click on the Trim tool and drag the cursor over the area you want to trim away; the area will disappear . - Page 11 3D Systems, Inc . 333 Three D Systems Circle | Rock Hill, SC | 29730 Cubify .com ©2013 3D Systems, Inc . All rights reserved . pn 391235, Rev . A...
