- Page 1 INTEGRAL-WPM1 User manual www.dasaudio.com...
- Page 2 INTEGRAL Overview DAS Audio is a unique brand. We create sound solutions for businesses, always adapted to the different needs of our clients. The Integral Series is the heart and brain of our installation solutions. It comprises of a series of devices that in addition...
-
Page 3: Description And Features

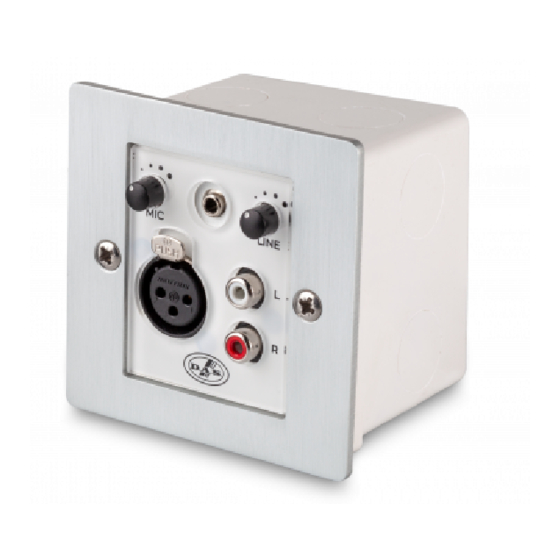

INTEGRAL Description and features INTEGRAL-WPM1 is a 2-channel wall-panel format audio mixer. It includes one balanced XLR microphone input (Phantom 12V can be activated with internal jumper) and an unbalanced Stereo Line input (2 x RCA or 1x1/8” jack). Each channel (mic and line) has its own independent level control. -
Page 4: Front Panel
Unbalanced Stereo Line input RCA connectors Line´s level control. For minimum level rotate completely to the left 3.5mm audio mini-jack input for connecting external audio sources as tablets, phones, PCs etc. The mini- jack input would be added to the unbalanced RCA inputs INTEGRAL-WPM1 Manual... -
Page 5: Rear Panel
Power Supply. Normally has to be connected to avoid noise or hum. PHT Jumper: When inserted the Phantom power will be available at the XLR connector TKO Jumper: Remove it to activate Talk Over functionality of the Microphone´s signal over the line signal INTEGRAL-WPM1 Manual... - Page 6 (or computer). Other possibility would be using the minijack input connector for the line input. Use the level knobs at the front panel for each input channel to define your mix of the two signals (line and mic). INTEGRAL-WPM1 Manual...
- Page 7 Analog Audio from WPM1 The INTEGRAL-WPM1 needs to be con- nected to an external 12-24Vdc power sup- ply. DAS Audio´s INTEGRAL-PS12 with uni- versal mains is ideal to be installed inside walls and construction structures.
-
Page 8: Installation
• Attach the metal mounting ring to the electrical box with the provided screws. • Mount the connectors on the extremes of the installed cabling. • Connect the unit (speaker outputs, AC power etc.) and secure it to the mounting ring. INTEGRAL-WPM1 Manual... -
Page 9: Specifications
Line: >105dB MIC: >90dB Talk-Over -30dB/ 2s Phantom Voltage 12Vdc External Power Supply 12-24Vdc, recommended INTEGRAL-PS12 Power Consumption 25mA Dimensions (H x W x D) 86 x 86 x 34mm (3.38 x 3.38 x 1.34 in) Weight 250g INTEGRAL-WPM1 Manual... - Page 10 INTEGRAL Line drawings INTEGRAL-WPM1 Manual...
- Page 11 INTEGRAL Notes INTEGRAL-WPM1 Manual...
