Phone: 218-739-4641
Fax: 218-739-4008
www.shoremaster.com

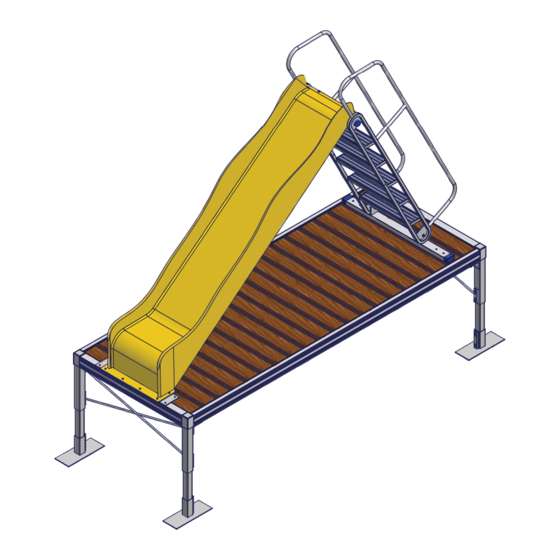

On-Deck Slide:
Instructions and Safety Tips
CAUTION - PUT SAFETY FIRST
Before attempting to install or use this slide, study and fully understand the proper operating
1.
procedures and safety precautions outlined in this owner's manual.
NOT COMPLYING WITH THE PROCEDURES AND PRECAUTIONS OUTLINED IN THIS
2.
MANUAL WILL INVALIDATE THE WARRANTY AND MAY RESULT IN PERSONAL INJURY OR
DEATH.
3.
If you have any questions about assembly, installation, use or suitability of this product, contact
an authorized dealer or ShoreMaster directly at 1-800-328-8945.
1
Advertisement
Summary of Contents for Shoremaster On-Deck Slide
- Page 1 NOT COMPLYING WITH THE PROCEDURES AND PRECAUTIONS OUTLINED IN THIS MANUAL WILL INVALIDATE THE WARRANTY AND MAY RESULT IN PERSONAL INJURY OR DEATH. If you have any questions about assembly, installation, use or suitability of this product, contact an authorized dealer or ShoreMaster directly at 1-800-328-8945.
- Page 2 SLIDE - ON DECK 6.10 6.11 Slide - On Deck Parts List P/N: 430006230 (Yellow) 430009800 (Tan) ITEM PART NUMBER DESCRIPTION 230006530 PIVOT WELDMENT SLIDE LINDSLIDE POLY SLIDE 23006580 LADDER BASE DECK MOUNT 230008040 LADDER WELDMENT SLIDE ON-DECK 005006570 .250 X 6.0 PLATE DECK MOUNT WSBB00002 BOLT BAG SLIDE ON DECK MS380114B...
- Page 3 STEP 1 Attach the Poly Slide to the Slide Ladder with two Bolts 1/4 x 1.25, four Washer Flat 1/4, two Washers Lock 1/4 and two Nuts Brass - as shown in Detail "A." Slide one Blue Cap 21 on each side of the Slide Pivot - as shown in Detail "A."...
- Page 4 Slide Ladder Mount STEP 3 Slide one Blue Cap 20 on each end of the Slide Ladder Base - as shown in Detail "A." Measure 111" from the Deck mount Plate and make a mark on the dock - as shown in Detail "B."...
