VTI 10200 Instruction Sheet

Table of Contents

Download this manual

Model: 10200

WARNING:

Please keep

the TV mounting screws

M5, M6, M8, M10 and the

L key in a secure location

as they may be required

for use with the flat panel

TV at a later time.

Upper pole

Vertical mount

Horizontal mount

Lower pole

Handle shelf section assembly parts

Table of Contents

Do you have a question about the 10200 and is the answer not in the manual?

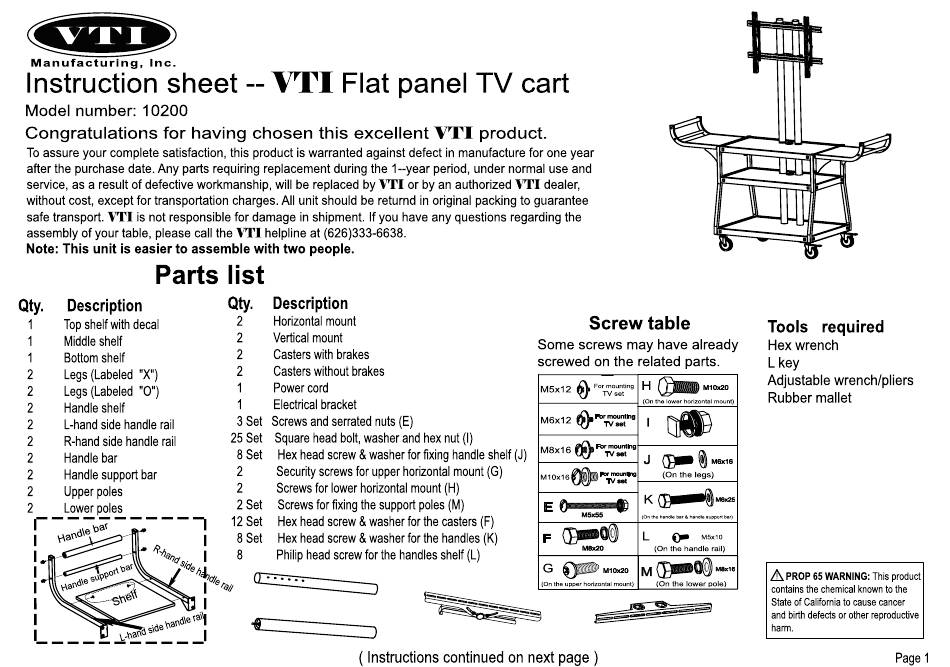

Page 1 Model: 10200 WARNING: Please keep the TV mounting screws M5, M6, M8, M10 and the L key in a secure location as they may be required for use with the flat panel TV at a later time. Upper pole Vertical mount...
Page 2 Slide each shelf over the brackets of the legs. The largest shelf is the width of the unit should remain constant all the way to the top. the bottom. The top shelf has the VTI decal on it. Leg "X"...
Page 3 Lay unit on the floor. Align the holes on the casters with In order to have the unit properly the holes on the corner of the bottom shelf. Use aligned, stand unit upright on a the hex screws (see Screw level surface.
Page 4 Insert the two horizontal mounts onto the support poles. Note: The mount with adjustable screw(see screw table H) should go on the Tighten the two bottom. Screw(see screw table G) the top mount to supporting poles desired height from A to F. onto the bottom shelf with two Adjust the bottom mount...
Page 5 Use the screw to cam. platform, you fasten the vertical have completed the mount to the bottom installation of horizontal mount as Model 10200. shown. Page 5...
Page 6 If any parts or hardware are missing or damaged, Do Not V T I City of Industry, CA 91746, USA Return the unit to your dealer. Call the VTI helpline at Tel.:(626)333-6638; Fax:(626)333-6631. (626)333-6638 for immediate parts replacement. Manufacturing, Inc.
