ZIGBEE 622 Quick Start Manual

Cct tunable led bulb

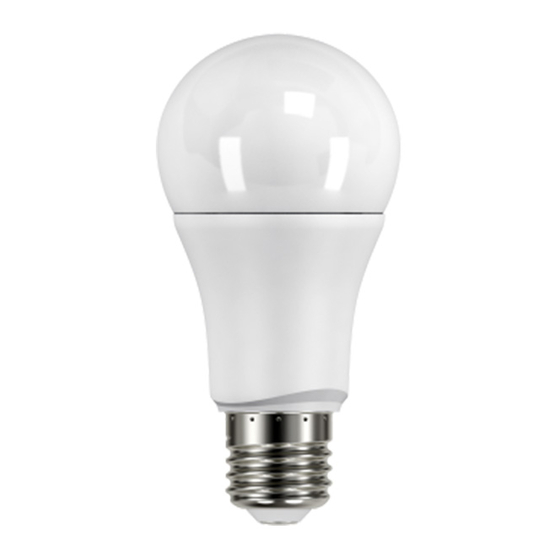

LED622 CCT Tunable LED Bulb

Quick Start Guide

Table of Contents

Need help?

Do you have a question about the 622 and is the answer not in the manual?

Page 1 LED622 CCT Tunable LED Bulb Quick Start Guide...
Page 2 1. Introduction The LED622 ZigBee CCT Tunable LED bulb allows you to switch it ON and OFF, adjust its brightness and color temperature and set a switching schedules from the mobile app. 2. Get started To get started, you will need: ...
Page 3 Tip: for this step, you can also press the “Z” button of the gateway for two seconds until the LED indicator turns solid blue. Step 4: Power ON the LED Bulb and it will turn from warm light - cool light - warm light and flash once.
Page 4 3. FAQ Q1. How can I return this device to default factory settings? A1: Turn on then turn off within 3 seconds and repeat 6 times (off, on, off, on, off, on, off, on, off, on, off, on) and the bulb will turn warm light –...
Page 5 4. Technical Specifications E27: 220-240V Operating Voltage E26: 120V Operating Wattage Lumen 806lm Average Lifetime 25000Hrs 2700 ~ 6500k Beam Angle 240° Diameter: 60mm Dimensions Height: 120mm Weight Mounting Type Mounted on bracket...
Page 6 5. Safety Notice WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the device or other property. Read all the safety notices below before using the device.  Avoid high humidity or extreme temperatures. ...

Led622
