L'OR Suprême
User manual
Version 1.2 November 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Supreme and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for L'OR Supreme

Summary of Contents for L'OR Supreme

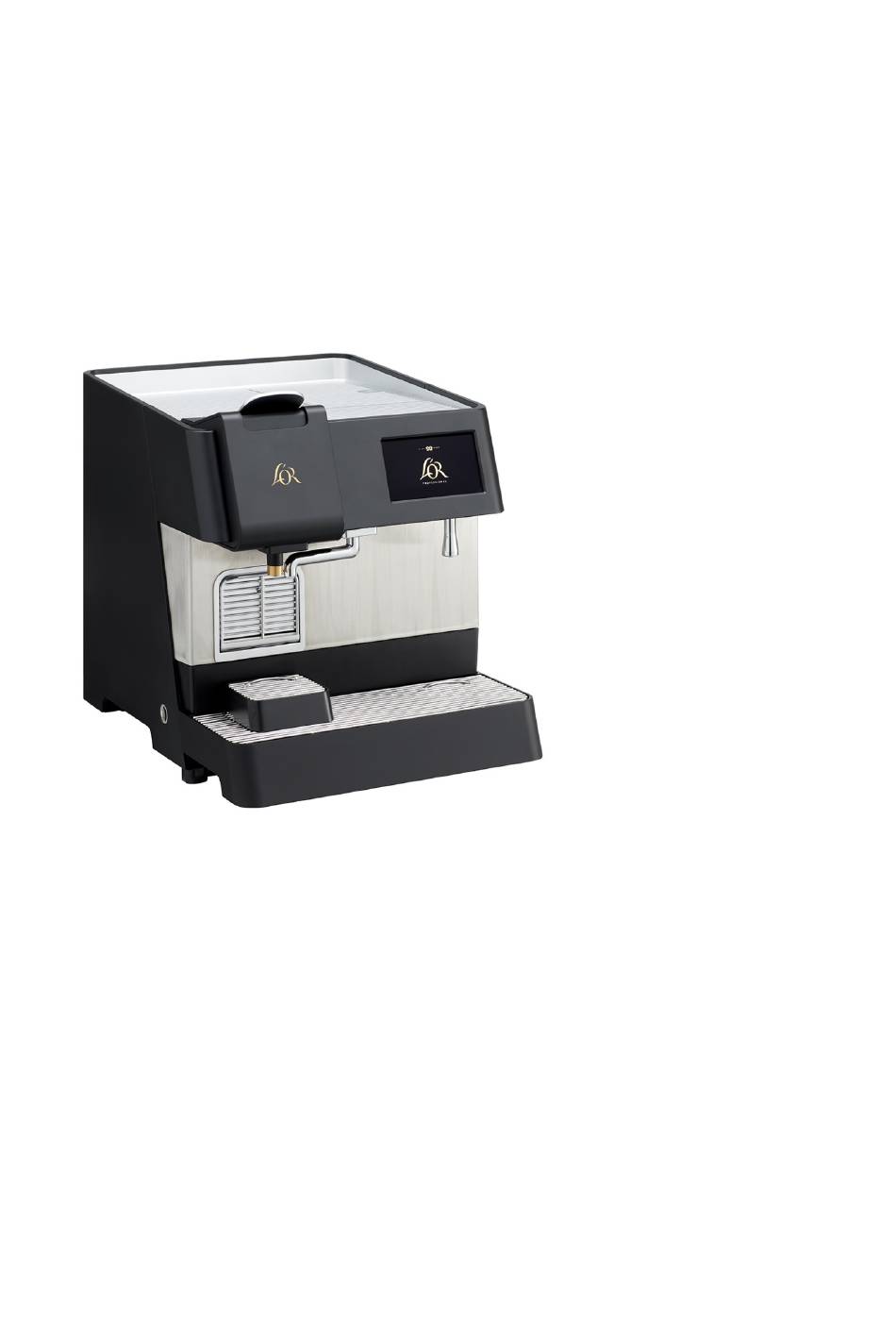

  • Page 1 L’OR Suprême User manual Version 1.2 November 2021...

  • Page 2: Table Of Contents

    Table of contents Table of contents ............................. 2 1. Safety precautions ..........................3 1.1 Electrical safety..........................3 1.2 General safety ..........................4 1.3 Operational safety ......................... 4 1.4 Environment ..........................5 2. Description of parts ..........................6 3. Placement and operation ........................7 3.1 First use ............................

  • Page 3: Safety Precautions

    1. Safety precautions Read this instruction manual before you start using the machine. It gives you important safety information and will ensure you get the most out of your JDE product. Keep this manual in a safe place for reference THIS IS AN ATTENDED APPLIANCE.

  • Page 4: General Safety

    1.2 General safety • The appliance is not suitable for installation in an area where a water jet could be used. • Parts of the appliance surface and interior can become hot due to residual heat after usage. • Do not place the appliance over or close to sources of heat such as ovens or open flames. •...

  • Page 5: Environment

    1.4 Environment Recycling: This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 6: Description Of Parts

    2. Description of parts A. Lever Tank lid Q. R232 port B. Disc insertion opening Air adjustment valve R. Power inlet port C. Brewing unit K. Touch screen Water supply inlet D. Coffee outlet Hot water pipe Used Disc container Milk outlet M.

  • Page 7: Placement And Operation

    3. Placement and operation ⚠ THE APPLIANCE MUST BE FLUSHED WITH FRESH DRINKING WATER BEFORE THE FIRST USE. 3.1 First use Open the water tank cover, Fill up with fresh drinking water. The machine can be connected to remove the water tank lid. Ensure that the water tank is the water mains.
  • Page 8 Enter water hardness, and Select the machine version. Press confirm for the [black softener details. coffee machine] in the next Check the website of your local screen. water supplier for details. For more details; see 3.2 Water tank filter handling Press [confirm] for the milk Install the chrome milk outlet, and version [white and black coffee] in...

  • Page 9: Water Tank Softener Handling

    3.2 Water tank softener handling A water softener (filter) can be installed inside the water tank to reduce the build-up of limescale in your coffee machine. (Advised model: Claris CS-150 filter / softener). The table below shows its capacity at various water hardness levels.

  • Page 10: Drink Preparation

    3.3 Drink preparation Place a cup under the coffee Open the lever. Click on the globe [����] icon to outlet. select the language of your choice. Insert a coffee disc. Close the lever. Press a drink selection button. Press the red stop button in the Your drink is now being prepared.

  • Page 11: Cleaning

    4. Cleaning 4.1 Automatic rinsing The machine executes a short The machine will also execute a rinsing cycle 30 minutes after the rinsing cycle to clean the tubes last milk drink to ensure that the and outlets when the machine is tubes and outlet are clean.
  • Page 12 Empty and clean the waste bin, Remove the milk pack from the Remove the milk tube and replace re-install when done. refrigerator. Check the best with a clean tube. before date and replace if necessary. Press the release button Place the container with cleaning Place an empty 3 litre behind the chrome milk outlet, solution in the fridge and place...

  • Page 13: Descaling Procedure

    5. Descaling procedure • The descaling procedure (22 minutes) cannot be cancelled or interrupted after you have started it. • The water hardness entered during the initial set-up determines the descaling interval. If not entered by the user, the machine is set to the highest water hardness by default. The descaling interval is extended when a water tank filter is installed, see page 18 for exchange rate •...

  • Page 14: Programming Mode

    6. Programming mode In the programming mode you can change stand-by timings, advanced settings (drink- and machine settings), and manually start the cleaning or descaling programs. Click on the programming mode You will see all the menu items in Stand-by time can be set between the display.
  • Page 15 Factory reset Descaling settings Connectivity settings Press OK to confirm [Restore The water hardness entered Enter machine details for factory settings] determines the necessary connection to a connectivity When the factory settings are descaling frequency for optimal device. reloaded the display shows “Reset operation.

  • Page 16: Troubleshooting

    7. Troubleshooting Various icons can be shown in the lower right corner of the display to inform you about the machine status or errors. 7.1 Icons and display information The service icon indicates that an error has been detected. When pressed additional details and actions are shown.

  • Page 17: Troubleshooting Actions

    7.2 Troubleshooting actions Problem Problem resolution Appliance is not working Check if the power plug is well inserted in the machine, press the power ON at all, no display. button at the left side of the machine once, and wait for the machine to power Lack of steam power/ no The machine requires descaling.
  • Page 18 The drink tastes Has a new undamaged disc been used to brew the product? Open the lever and insufficiently strong enter a new disc at every brew. Always ensure the flanges / edges / rims of the disc are flat before inserting the disc into the chute.

  • Page 19: Specifications

    8. Specifications Dimensions (W) 350 x (D) 490 x (H) 400 mm Operational pressure 20 bar Weight 15 kg Sound < 40dB A (peak during brewing process <70 dB) Temperature range 0-25 °C Max attitude < 2000m (< 1500m recommended) Storage conditions 5-30 °C / RH 30%-60%.
