HD Radio AGT HD Pulse HDT200 User Manual

Tabletop clock radio

Table of Contents

Quick Links

user guide

HDT200

Important: This manual contains important safety and operating information. Please read, understand, and follow the instructions in this

manual. Failure to do so could result in personal injury, death, and/or damage to your HD Pulse

Tabletop Clock Radio, accessories,

and/or to your property.

Table of Contents

Summary of Contents for HD Radio AGT HD Pulse HDT200

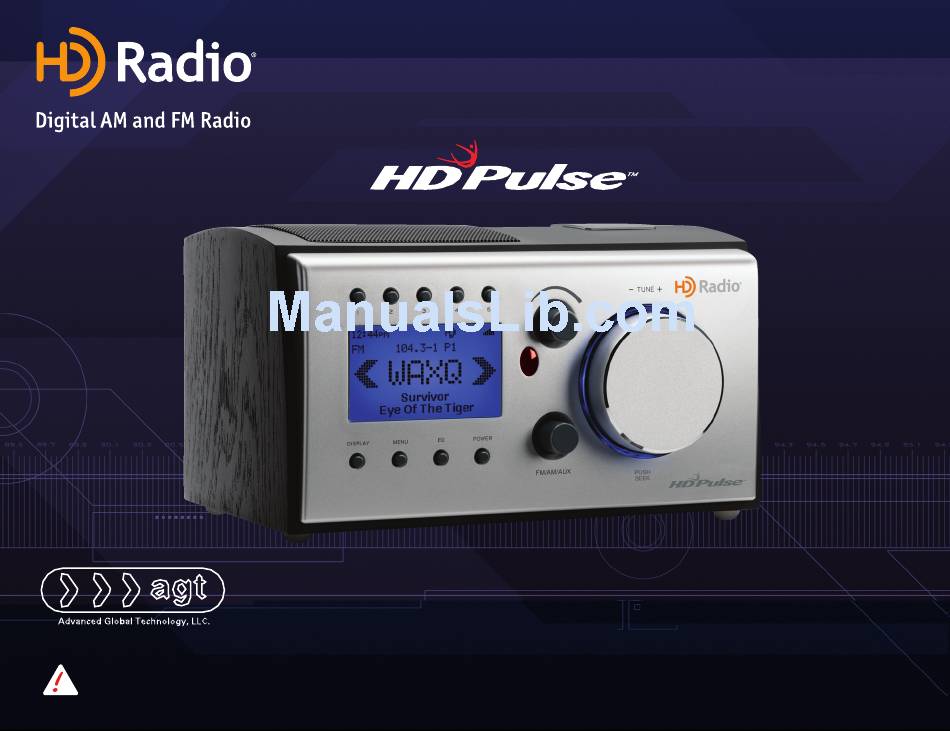

Page 1 Important: This manual contains important safety and operating information. Please read, understand, and follow the instructions in this manual. Failure to do so could result in personal injury, death, and/or damage to your HD Pulse Tabletop Clock Radio, accessories, and/or to your property.
Page 3: Table Of Contents
Introduction HD Pulse Tabletop Clock Radio Setup Using the HD Pulse Tabletop Clock Radio Setup Options Customer Support Warranty Warranty Return Form Table of Contents...
Page 4: Introduction
Introduction THANK YOU FOR CHOOSING THE HD PULSE™ TABLETOP CLOCK RADIO We have designed this product to provide you with access to the full spectrum of features that the new HD Radio™ technology offers. Across the country, AM and FM radio broadcasters are upgrading to digital HD Radio transmissions, which the HD Pulse receiver is specially designed to receive.
Page 5 Introduction IMPORTANT SAFETY INSTRUCTIONS READ INSTRUCTIONS All the safety and operating instructions must be read before this product is used. RETAIN INSTRUCTIONS The safety and operating instructions should be retained for future reference. HEED WARNINGS All warnings on the product and in the operating instructions should be adhered to. FOLLOW INSTRUCTIONS All operating and use instructions should be followed completely.
Page 6 Introduction POWER SOURCES This product should be operated only from the type of power source indicated on the included power supply label. If you are not sure of the type of power supplied to your home, consult your local power company. LOCATION This product should be installed in an interior location away from excessive heat and moisture.
Page 7 SERVICING Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards and void the manufacturers warranty. Refer all servicing to qualified service personnel. DAMAGE REQUIRING SERVICE Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: •...
Page 8 Introduction HD Pulse Tabletop Clock Radio The HD Pulse Tabletop Clock Radio includes the following: NOTE: Actual product components may differ slightly from those illustrated.
Page 9: Hd Pulse
USING THE HD PULSE TABLETOP CLOCK RADIO AT HOME Place the HD Pulse Tabletop clock radio on a secure and stable surface such as a table, desk, counter or shelf. Connecting the AC/DC Adapter 1. Insert the power supply cord into the port labeled 12V DC.
Page 10 The FM antenna connector is a standard F-Type connector and can accept cable FM feeds from some cable systems that provide FM programming. Contact your cable TV provider for assistance to connect your HD Pulse Tabletop Clock radio to the FM signal, available from some cable TV providers.
Page 11: Using The Hd Pulse
HD PULSE TABLETOP CLOCK RADIO OVERVIEW TURNING THE HD PULSE TABLETOP CLOCK RADIO ON/OFF • Press the POWER button to turn the radio ON/OFF. • When the HD Pulse is Turned off, the clock is displayed. You can choose either an analog or digital clock display (MENU: CLOCK SET).
Page 12 • Turn the knob to scroll up and down through the menu options. Press the knob to SELECT the highlighted option. VOLUME • Turn the VOLUME knob to adjust the desired volume level. To mute the volume turn the VOLUME knob to 00 or press the MUTE button on the remote control. Tabletop Clock Radio...
Page 13 If the signal is too weak or the station is not broadcasting in HD format, the signal strength will not be displayed. 4. BAND & FREQUENCY • The AM or FM radio band is always displayed when listing to an AM or FM radio station. Using the HD Pulse Tabletop Clock Radio...
Page 14 A short audible tone will be heard to confirm the station has been stored. • Press and release one of the preset numbers (1–5) to tune to a preset station. The preset chosen (P1–P5) will be displayed. Tabletop Clock Radio...
Page 15 • If the radio is playing, you can enter Sleep Mode by pressing the SNOOZE/SLEEP button, the display will change and show the number of minutes left before the radio turns off (default is 10 minutes). Pressing the SNOOZE/SLEEP button again will cancel the Sleep Mode function. Using the HD Pulse Tabletop Clock Radio...
Page 16 (MP3 Player, CD Player, etc.). ANALOG RADIO MODE Although your HD Pulse Tabletop Clock Radio is designed as a digital HD Radio receiver, it also operates as a standard analog AM/FM radio. Analog radio is automatically used by the HD Pulse Tabletop Clock Radio when no HD Radio digital signal is available or is too weak to receive.
Page 17 HD RADIO MODE Your HD Pulse Tabletop Clock Radio system is designed to provide digital audio along with radio station, song title, and artist information. When the HD Pulse Tabletop Clock Radio recognizes and tries to obtain an HD Radio signal, the HD icon will appear and start blinking.
Page 18 (multicast) at a time using their existing frequency on the radio dial. After the HD Pulse Tabletop Clock Radio is tuned to an HD channel, arrows will appear on the display. The arrows indicate the existence of multicast services. Rotate the –TUNE+ knob in the arrow direction to select the multicast channels.
Page 19 Unavailable Digital Signal/Loss of Digital Signal If the HD Pulse Tabletop Clock Radio incurs a loss of digital HD Radio signal, the radio mode will automatically change to analog radio mode. If a station’s multicast service is interrupted while playing, the HD Pulse Tabletop Clock Radio will display: CHANNEL NO LONGER AVAILABLE and switch to the main station program.
Page 20 Using the HD Pulse Tabletop Clock Radio REAR PANEL CONNECTIONS R-SPR You can attach an optional speaker using the standard RCA connector. You can purchase this optional accessory at www.advancedgt.com/visteon. When using the optional speaker, use this -TUNE+ knob to adjust the Right and Left speaker balance.
Page 21 1/8” (3.5mm) stereo plug. LINE OUT Use this audio output to connect your HD Pulse Tabletop Clock Radio to your home stereo. You can purchase this optional cable from www.advancedgt.com/visteon or from your local retailer. The cable is a standard 1/8” (3.5mm) stereo plug to RCA connectors.
Page 22: Setup Options
Setup Options MENU • Press the MENU button to enter into or exit the setup menu. If in a menu options screen a press of the MENU button will return you to the main menu screen. • Use the –TUNE+ knob to navigate through the menu and to select the desired menu options.
Page 23 Alarm Set Your HD Pulse Tabletop Clock Radio has the ability to set two individual alarm times. To set the Alarm, rotate the –TUNE+ knob to scroll up and down through the menu options and highlight ALARM SET. Press the –TUNE+ knob to SELECT the highlighted option.
Page 24 The time will begin to flash, rotate the –TUNE+ knob to set the desired Sleep time then press the –TUNE+ knob to store. Display Set Your HD Pulse Tabletop Clock Radio has the ability to set the contrast and backlight brightness. Contrast Set Use this feature to adjust the display’s contrast.
Page 25 Setup Options Factory Reset Use this feature to return to the factory default settings. Turn the –TUNE+ knob to choose Factory Reset and press the –TUNE+ knob to select. After answering YES press the –TUNE+ knob to select, all of the settings including presets will be returned to their default values as received new from the factory.
Page 26: Customer Support
Customer Support TROUBLESHOOTING Symptom HD Pulse does not turn on Radio reception is poor Probable Cause AC Power cable not properly connected Power not available at wall outlet Antenna connectors not seated well Antenna orientation not optimum Correction Check AC Power cable for proper connection Check fuse/circuit breaker in home is turned on...
Page 27 Customer Support Symptom No Sound AUX audio quality is poor Probable Cause Audio cables not connected Volume is turned down - - - MUTE - - - displayed Unit not turned on Auxiliary unit connected to AUX input has its volume level set too low Auxiliary unit connected to AUX input has its volume...
Page 28 CLEANING AND MAINTENANCE Many plastic parts are used in the HD Pulse Tabletop Clock Radio. Do not use volatile chemicals such as benzene or thinner. This might damage the finish. Wipe the casing with a soft, dry cloth. For excessive dirt, use a cloth lightly dampened in a diluted neutral detergent, and wipe again with a soft dry cloth.
Page 29 U.S. USERS This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 30: Warranty
Technology. Warranty Service Provided If you purchased the product new from a retail vendor, Advanced Global Technology warrants the equipment against defects in material and workmanship for a period of one (1) year from the original date of purchase. This warranty is in lieu of all other express warranties.
Page 31 Note: A product received which was not made by Advanced Global Technology or which is not defective as determined by our test procedures will not be repaired and will be returned to you.
Page 32 • Provide proof of the date of purchase within the package. • Attach a $15 cashiers check or money order payable to “Advanced Global Technology, LLC” to cover handling and return shipping costs. • Prepay all shipping costs to the authorized service center.
Page 33: Warranty Return Form
2. Attach a copy of your purchase receipt and $15 cashiers check or money order payable to “Advanced Global Technology, LLC” to the form to cover handling and return shipping costs, and enclose both in the box with your defective product.
Page 34 Warranty Return Form Full Name: ______________________________________________________ Last Address: ______________________________________________________ Street Address ______________________________________________________ City Home Phone: (____)______________ Alternate Phone: (____)______________ Email Address: ______________________________________________________ Model Number ____________________ Date of Purchase __________________ Brief Description for why Product is being Returned:_________________________ ___________________________________________________________________ ___________________________________________________________________ Personal Information First State Product Information...
Page 35 Notes...
Page 36 U.S.A. Customer Service (1) 877.SUPT.AGT www.advancedgt.com/visteon AGT name and AGT logo are registered trademarks of Advanced Global Technology, LLC. HD Pulse name and related logos are registered trademarks of Visteon Corporation. HD Radio Technology Manufactured Under License From iBiquity Digital Corporation. HD...
