Manual
AL-436-00-902 EnoSense People Counter
EnOcean Sensor for people counting / PIR based
EnOcean 902 MHz
Part no. 12466 (beige) / 12467 (black) / 12468 (white)
Version 1.02, valid since FW/HW 1.0 / 1.1
© DEUTA Controls GmbH
01.12.2021
Technical data might change
Page 1 of 18
Paffrather Str. 140, 51465 Bergisch Gladbach
Hauptstraße 76, 32479 Hille
info@deuta-controls.de;
www.deuta-controls.net
Tel.:+49 2202 285 57- 61
Tel: +49 5734 51466 - 0
Fax:+49 5734 51466 - 28
Advertisement
Table of Contents
Related Manuals for DEUTA Controls enocean EnoSense AL-436-00-902
Summary of Contents for DEUTA Controls enocean EnoSense AL-436-00-902

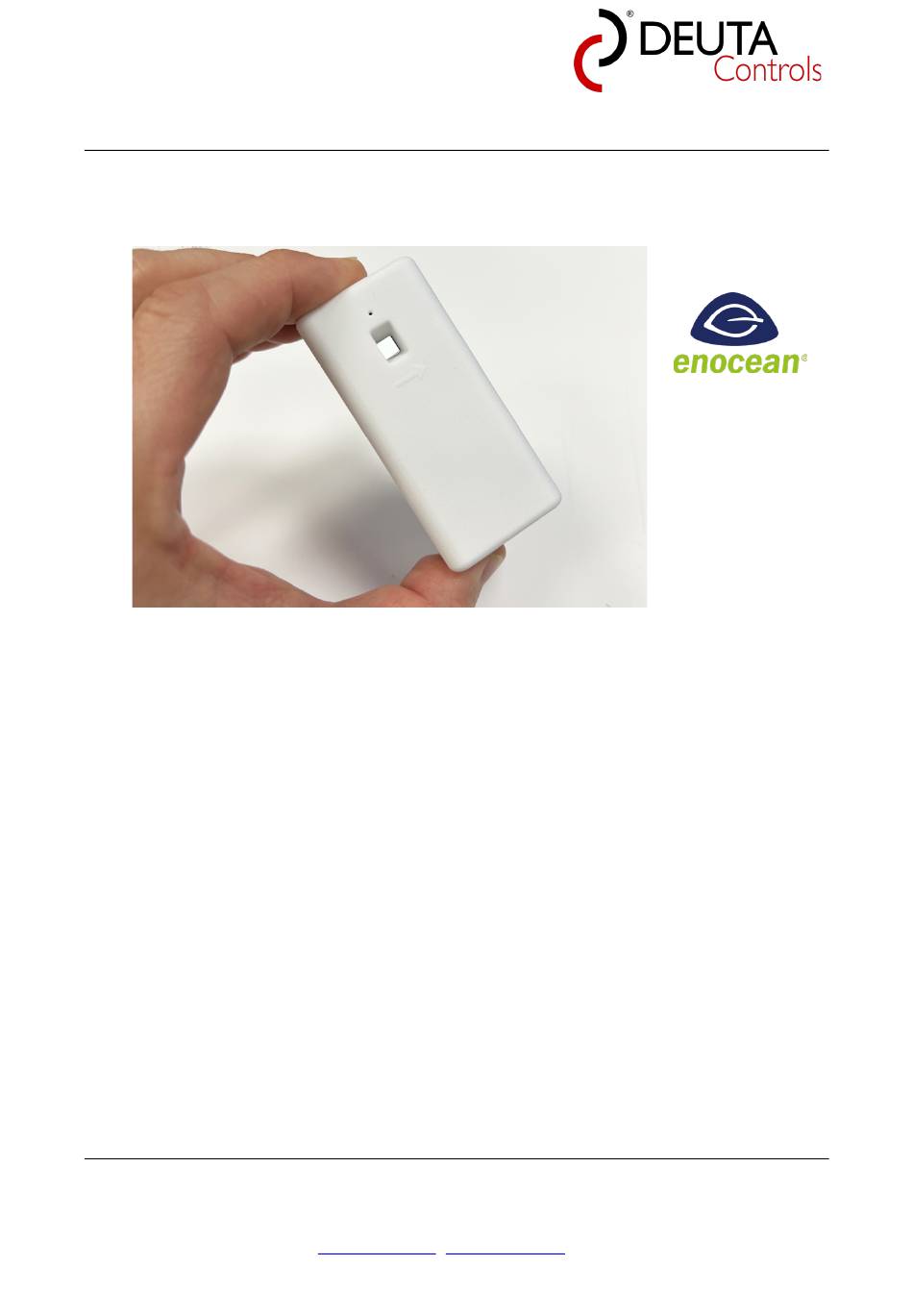

- Page 1 EnOcean Sensor for people counting / PIR based EnOcean 902 MHz Part no. 12466 (beige) / 12467 (black) / 12468 (white) Version 1.02, valid since FW/HW 1.0 / 1.1 © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021 Hauptstraße 76, 32479 Hille...
- Page 2 Manual by third parties that violate pertinent copyright provisions is prohibited. Reproduction, translation, electronic and phototechnical filing/archiving (e.g., photocopying) as well as any amendments require the written consent of DEUTA Controls GmbH, Bergisch Gladbach, Germany. Non-observance will involve the right to assert damage claims.
-
Page 3: Table Of Contents
People counting / data transmission rules ............11 6.3.3 Receive/ RX ....................12 Service / changing batteries ..................13 Safety remarks ......................13 © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021 Hauptstraße 76, 32479 Hille Tel: +49 5734 51466 - 0 Technical data might change info@deuta-controls.de;... - Page 4 Device labels .........................14 FCC (United States) Regulatory Statement ...............15 Dimensions / drawings ....................16 Ordering information ....................17 Revision history ......................18 © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021 Hauptstraße 76, 32479 Hille Tel: +49 5734 51466 - 0 Technical data might change info@deuta-controls.de;...
-
Page 5: Validity Of This Documentation
The AL-436-00-902 EnoSense People Counter must not be used in any relation with equipment that supports, directly or indirectly, human health or life or with applications that can result in danger for people, animals or real value. © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021... -
Page 6: Disposal
• Lens opening of the passive infrared sensor for passing people detection • Service button to send teach in / learn telegram © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021 Hauptstraße 76, 32479 Hille... -
Page 7: Observe Intended Use
A non-conductive mounting surface is necessary. Ensure the AL-436-00-902 EnoSense People Counter is mounted on a non- conductive surface. If it is not, performance may be adversely affected. © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021... -
Page 8: Technical Data
2x AA, 1,5V internal batteries Power consumption Typ. 1 mW, 50 µA standby Table 5: Technical data / power supply © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021 Hauptstraße 76, 32479 Hille... -
Page 9: Environmental Conditions
EN IEC 61000-6-2 :2016 EN IEC 61000-3-2 :2019 EN 61000-3-3 :2013 EN 55032 :2012/AC :2013 Table 9: Technical data / standards and guidelines © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021 Hauptstraße 76, 32479 Hille... -
Page 10: Functional Description In Detail
(EEP). Each EnOcean based product sends and receives data according to at least one standardized data format. The EnoSense People Counter transmits data described as follows: © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021... -
Page 11: People Counting / Data Transmission Rules
Counter immediately. A second message (sub telegram) will be send after 25 ms with the same data contents. If no further motion is detected, the People Counter will not send any further message. © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021 Hauptstraße 76, 32479 Hille... -
Page 12: Receive/ Rx
EnOcean telegrams only . No data is received / interpreted. Cons. Nr. Description © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021 Hauptstraße 76, 32479 Hille Tel: +49 5734 51466 - 0 Technical data might change info@deuta-controls.de;... -
Page 13: Service / Changing Batteries
This product contains AA type batteries. If a battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021... -
Page 14: Device Labels
00000032470 0x47110815 Label 2, Line 1: Serial number, 10 digits Label 2, Line 2, EURID, EnOcean ID QR-Code: <Serial number>;<EURID> © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021 Hauptstraße 76, 32479 Hille... -
Page 15: Fcc (United States) Regulatory Statement
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021... -
Page 16: Dimensions / Drawings
AL-436-00-902 EnoSense People Counter Product manual Page 16 of 18 11 Dimensions / drawings © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021 Hauptstraße 76, 32479 Hille Tel: +49 5734 51466 - 0 Technical data might change info@deuta-controls.de;... -
Page 17: Ordering Information
Dimensions 36 x 37 x 80 mm, EnOcean 902 MHz, FCC, housing: PC, Signal white (RAL 9003); incl. adhesive pad; © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021 Hauptstraße 76, 32479 Hille... -
Page 18: Revision History
Removed FCC §15.101 statement in 10; Added/changed functional description ------------ End of document ----------- © DEUTA Controls GmbH Paffrather Str. 140, 51465 Bergisch Gladbach Tel.:+49 2202 285 57- 61 01.12.2021 Hauptstraße 76, 32479 Hille Tel: +49 5734 51466 - 0 Technical data might change info@deuta-controls.de;...
