IQ IQVideo LCS610 User Manual

Lecture capture system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IQVideo
Lecture Capture System
LCS610
——User Manual——

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQVideo LCS610 and is the answer not in the manual?

Questions and answers

Summary of Contents for IQ IQVideo LCS610

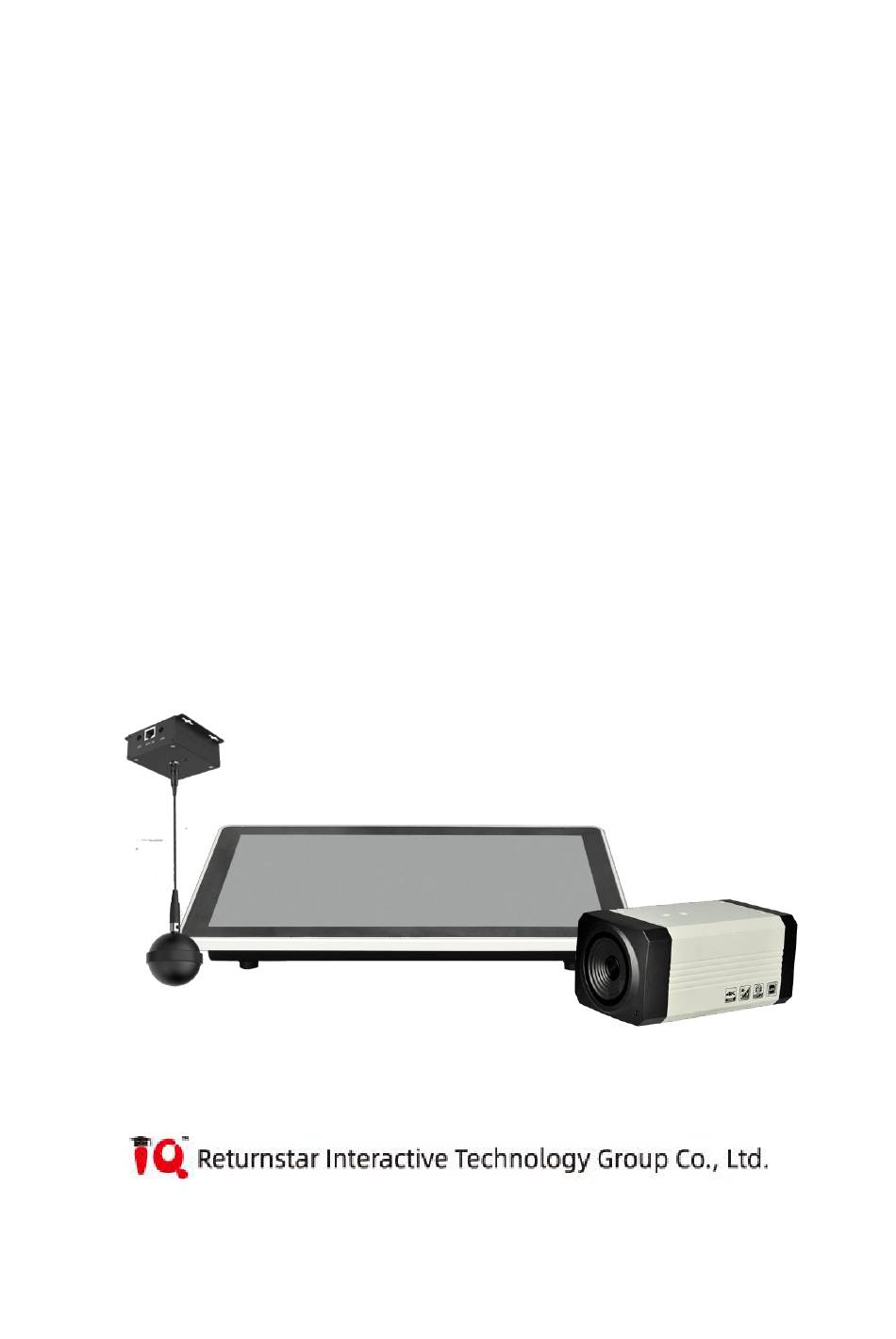

  • Page 1 IQVideo Lecture Capture System LCS610 ——User Manual——...
  • Page 2 2 / 31...

  • Page 3: Table Of Contents

    Contents Chapter 1 System Components ..............5 1.1 Video Station Interface Description ........... 5 1.2 Teacher Camera/Student Camera Interface Description ....6 1.3 Microphone Audio Processor Interface Description ......7 1.3.1 Front Interface ..................7 1.3.2 Back Interface ..................7 Chapter 2 Installation Preparation ..............
  • Page 4 6.2.3 Watch Videos and Downloads Remotely ......... 16 6.3 Live streaming over Internet ............17 Chapter 7 Recording System Parameter Settings ........17 7.1 Video Station Configuration ............. 17 7.2 External interface ................23 7.3 Intelligent Control ................24 7.4 User Management ................25 7.5 System Management ................

  • Page 5: Chapter 1 System Components

    Chapter 1 System Components Video Station Auto-tracking Camera (Student) Auto-tracking Camera (Teacher) Microphone Audio Processor Ceiling MIC 1.1 Video Station Interface Description 5 / 31...

  • Page 6: Teacher Camera/Student Camera Interface Description

    DC-48 IN Video Station Power In 4-port POE 1000Mbps 4 Gigabit Ethernet POE Power Supply and Access to Webcam RJ45 Control Port, Support RS-232 Communication Protocol HDMI-OUT2 Local Director Screen Output HDMI-OUT1 Recorded Video Screen Output HDMI-IN Support Access to the Teacher’s Computer or Visual Presenter and Other HDMI Video Signals Local Recording Video Export AUDIO-OUT...

  • Page 7: Microphone Audio Processor Interface Description

    1.3 Microphone Audio Processor Interface Description 1.3.1 Front Interface SM Input volume adjustment knob of wired vice microphone. MM Input volume adjustment knob of wired main microphone. WL Input volume adjustment knob of wireless main microphone. MIC-INPUT Input interface of network port microphone. RUN Device running indicator, flashing slowly indicates normal operation.

  • Page 8: Chapter 2 Installation Preparation

    Chapter 2 Installation Preparation Before setting, please prepare a computer (installed with tracking debugging software), video station, tracking camera, and ceiling microphone. There are two tracking cameras: teacher camera and student camera. The tail plate marked 7.35mm is the teacher tracking camera (teacher camera default IP: 192.168.2.88), and 3.5mm is the student tracking camera (student camera default IP: 192.168.2.89).
  • Page 9 network segment with the video station (e.g. 192.168.1.112). Access the video station's default IP address through a computer browser (Google browser is recommended). Enter username：admin password：8888 Pic：Access video station IP address Pic：Home page after login Enter the settings page to modify the network address of the Video Station to: 192.168.XXX.XXX (depending on the local area network), re-enter the modified IP address on the web page, and enter the settings page to add the camera network address: rtsp://192.168.XX.88/video1（Teacher Panorama）...

  • Page 10: Chapter 5 Camera Ip Settings

    Pic：Connect the camera in the settings Chapter 5 Camera IP Settings 5.1 Configuration Software Installation EDUTrackerClie nt1.4.4.zip Unzip the Camera Configuration Software to the specified location, double-click to open the software as shown in the figure below; 10 / 31...

  • Page 11: Network Parameters Setting

    Pay attention to select the corresponding Network Connection, click search to display all devices in the current network. 5.2 Network Parameters Setting Click to select the camera in the device list on the left, the network parameters and software version information of the current device are displayed on the right, and click to modify the IP address to make it consistent with the video station settings.

  • Page 12: Chapter 6 Video Station Operation Instructions

    Chapter 6 Video Station Operation Instructions 6.1 Local Recording Pic：Video station power on state The login interface will be displayed after power-on, and the system default login password 8888. 6.1.1 Network Settings Pic：Network setting interface 12 / 31...

  • Page 13: Director Settings

    Click the logo icon in the upper left corner to pop up the network settings page. Support manual input of IP information and automatic acquisition of router DHCP settings. Click “Save” to take effect. 6.1.2 Director Settings Click "Setting" to enter the director settings Pic：Director page Split-screen: Before class, teachers can choose a suitable split-screen mode according to class needs .

  • Page 14: Local Recording

    Others: The application module mainly sets the information added in the video. Pic：One-click apply button Including adding subtitles, time, course information, recorded opening and ending , logo, etc. to the video. Tracking: Select "Switch" — — the recording system will automatically switch the screen, at this time the manual split screen cannot be changed.

  • Page 15: Video Review And Export

    6.1.4 Video Review and Export Export: Insert a U disk, and export the video in "Download" 6.2 Remote Recording 6.2.1 Log in to the Remote Director System Pic：Remote director login interface Make sure that the computer and the video station are in the same LAN. Open the browser and enter the IP address of the video station in the browser.

  • Page 16: Watch Videos And Downloads Remotely

    Through the preview window, you can view the teacher panorama, teacher close-up, student panorama, student close-up, HDMI input screen. Select the split-screen mode you want, and view the effect of split-screen in the "Preview Screen". The position of each lens in the split screen can be modified by setting the number of each lens.

  • Page 17: Live Streaming Over Internet

    6.3 Live streaming over Internet Pic：Streaming address setting In the Remote Director System -> External interface -> Live streaming -> RTMP fills in the third-party live broadcast address and saves it. Click “Live” on the main interface of the video station, or click “Live” on the Remote Director System to start streaming to the live broadcast platform.
  • Page 18 Pic：Network settings page Codec  Local Stream Parameters Mainly used to set the code rate of the recorded video, and generally do not modify it; Pic：Local live broadcast and recording parameter settings Local Remote Live Broadcast Parameters If you use public network live broadcast, you can freely adjust the code rate according to the school's bandwidth, and generally do not modify it;...
  • Page 19 Pic：Remote live broadcast main stream parameter setting Pic：Remote live broadcast AUX stream parameter setting Audio Codec Parameters Display the current audio acquisition format; 19 / 31...
  • Page 20 Pic：Audio codec parameter settings Channel  Channel parameters The channel parameters are used to dock the video information of the camera, and each modification needs to be restarted to take effect； Pic：Channel parameter setting Recording Parameters Channel selection—set multi-channel recording, the default recording director channel, the director channel is not selectable, support up to 5 channels to record at the same time.
  • Page 21 Pic：Recording parameter settings Output Settings Mainly used to set the video content output by the HDMI output interface (corresponding to the recording host interface HDMI out 1). It supports three options: director, preview, and HDMI. Pic：HDMI output settings Volume Settings Adjust the input and output volume.
  • Page 22 Pic：Volume parameter settings Channel Name The name of each channel can be named manually Pic：Channel name settings OSD Parameter  Used to edit the settings of subtitles, logo, time, and title information and select the display position, font size and color； Pic：OSD Parameter settings Opening &...

  • Page 23: External Interface

    Pic：Settings of Opening & Ending 7.2 External interface Tracking Parameters  Pic：Tracking parameters settings Computer Desktop Detection SAD threshold: computer desktop detection sensitivity, the smaller the value, the more sensitive, the recommended value range is 600 Lowest trigger value: computer desktop detection sensitivity, the smaller the value, the more sensitive, the recommended value range is 300 Delay protection: the minimum hold time when the computer desktop has been switched to the desktop without operation...

  • Page 24: Intelligent Control

    channel/specified channel (customizable selection) Interactive strategy: whether to automatically switch to multi-screen layout after interactive connection, no switch/auto switch Computer desktop lock: whether the PGM screen has been kept on the computer desktop, yes/no Server  Mainly used to connect the video station with other platforms. FTP service: upload the video to the settings on the FTP server, fill in the address IP that needs to be uploaded to the specified server.

  • Page 25: User Management

    Power Scheduler  Schedule power on/off Pic：Power scheduler settings Access Control  There is a limit that an account cannot have more than two logins at the same time to prevent data loss caused by human misoperation; Pic：Access control settings 7.4 User Management Role management ...
  • Page 26 Pic：User permission settings User Management  Create a new login user, the default password is 8888. Based on the normal operation of the system, it supports up to 8 new users. Pic：Add user Change Password  Modify the password of the current login account Pic：Change password 26 / 31...

  • Page 27: System Management

    7.5 System Management Online Upgrade  To upgrade the version of the system, select the file that needs to be updated and click the "Update" button. Please keep the power on when the system is upgraded. After the upgrade is successful, the system will automatically restart. Pic：Software upgrading Equipment management ...
  • Page 28 Pic：Device time settings If the current time of the device is inconsistent with the current network time, you can click the "Sync Network Time" button. Data Recovery Click the "Format hard disk" button to format the system hard disk, and all data will be cleared; click the "Reset"...

  • Page 29: Chapter 8 Abnormal Problems And Solutions

    Pic：Set automatic screen lock time Authorize The device can be authorized to operate. If the authorized time is exceeded, the video station will not be able to be used normally (if the device is found to indicate that the authorization information has expired, please contact the manufacturer's engineer) Pic：Authorization settings Chapter 8 Abnormal problems and solutions...
  • Page 30 a. Whether the networks of both parties are interoperable b. After the IP address is set, the video stations of both parties must be restarted to take effect 30 / 31...
  • Page 31 31 / 31 [Kd065EN]-User Manual 20200119...
