- Page 1 Chocolate Heater Translation of the Original Instruction Manual English...
- Page 2 Manual Chocolate Heater Instruction manual chocolate heater Version: 1.2 Date of release: 22.04.2016...
-
Page 3: Table Of Contents
Manual Chocolate Heater Contents General Information ..................... 4 Safety ........................... 8 Technical Characteristics ................... 10 Installation and Function .................... 11 Transportation and Packaging ................... 14 Installation and Initial Operation ................. 15 Use and Operating ..................... 16 Malfunctions ....................... 18 Maintenance ......................19 10. -
Page 4: General Information
If not observed it may cause burns! Limitation of liability If you do not follow the instruction manual, the manufacturer is not liable. Manufacturer Kronen Küchengeräte GmbH Gewerbestr. 3 D-77731 Willstätt Phone: +49 (0) 78 54/96 60-0 Fax: +49 (0) 78 54/96 60-50 info@kronen-germany.de... - Page 5 Manual Chocolate Heater Defects and Claims 1. Claims based on material defects shall be subject to a limitation period of 2 years after surrender of the merchandise. The Seller does not assume any liability for material defects in pre-owned merchandise. 2.
- Page 6 5. The warranty services described above are subject to the condition that all required maintenance and care work is carried out by a customer service authorised by Kronen Küchengeräte GmbH and that any and all care and op- erational instructions from Kronen Küchengeräte GmbH have been followed.
- Page 7 Manual Chocolate Heater 6. Kronen Küchengeräte GmbH grants a function warranty of 6 months for each and every original Kronen Küchengeräte spare part, provided that it has been installed correctly. Kronen Küchengeräte GmbH shall provide an original part in the event of failure. No further claims, including claims for the cost of the re- placement, can be acknowledged.
-
Page 8: Safety
Manual Chocolate Heater Safety General Sources of Danger Wrongful use or limited knowledge of the safety instruc- tions could result in accidents and injuries on hands and fingers. That is why, we advise you to respect and follow the safety instructions. Make sure that unauthorized persons or untrained persons, especially children, do not start and work with the chocolate heater. - Page 9 Manual Chocolate Heater Intended Use The chocolate heater is a technical tool which exclusively should be used for its’ intended purpose. Its only purpose is to warm chocolate into the designated containers. Any different use of the machine is strictly forbidden. The chocolate heater is intended for industrial use and only should be used by trained workers of the company.
-
Page 10: Technical Characteristics
Manual Chocolate Heater Technical Characteristics Weight: 8 kg Dimensions: 545 x 334 x 225 mm Connected load: Line voltage 230 V Mains frequency 50 Hz Requirements for intended place: - horizontal and flat - Not slippery - Table height between 600 and 900 mm - No flammable surface (e.g. -
Page 11: Installation And Function

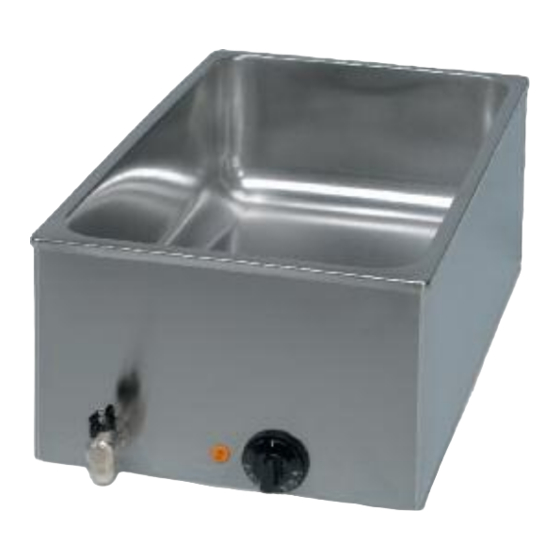

Manual Chocolate Heater Installation and Function In the chocolate tempering can GN pans can be loaded. On a water bath, the chocolate is heated in the GN shells. Included in delivery Delivery includes the fully assembled chocolate heater built of stainless steel. Also in the box are all the documents including the instruction manual and two GN containers. - Page 12 Manual Chocolate Heater Assembled Parts Body Drain tap Thermostat Control lamp Main switch...
- Page 13 Manual Chocolate Heater Operating Elements The chocolate heater has a main switch (5) to turn on the unit. If the main switch on the chocolate heater is switched on, the button glows. On the thermostat (3), the desired temperature can be set. The setting range is from 0 to 100 °...
-
Page 14: Transportation And Packaging
Manual Chocolate Heater Transportation and Packaging Always transport the chocolate heater in the intended box. Always transport the machine upright and make sure it is secured. In case there is more than one chocolate heater on the pallet do not put another pallet on top of it. -
Page 15: Installation And Initial Operation
Manual Chocolate Heater Installation and Initial Operation The chocolate heater is shipped ready for use. The installation and the initial operation can be done by the user The table has to fulfil certain requirements: Horizontal and flat Not slippery Table height between 600 and 900 mm No flammable surface (e.g. -
Page 16: Use And Operating
Manual Chocolate Heater Use and Operating Safety instruction for operating During operation some parts of the device are very hot. To avoid burns, do not touch hot parts of the device! Make sure that the water level does not fall below the "MIN"... - Page 17 Manual Chocolate Heater Cleaning Before you use the chocolate heater the first time make sure you clean it thor- oughly. Also, clean the machine multiple times during the day after use. Always use standard cleansers for cleaning the chocolate heater. The chocolate heater is only protected against splash water.
-
Page 18: Malfunctions
Manual Chocolate Heater Malfunctions Safety instructions Only costumer service should disassemble parts in case of malfunctions. In case of reoccurring malfunctions call your customer service. Error Correction Error Possible cause Solution Machine is not plugged Plug in the machine Machine does heat. -
Page 19: Maintenance
Maintenance is done by customer ser- vice only. Support / Customer Service / Hotline Sales Department and customer service: Kronen Küchengeräte GmbH Gewerbestr. 3 D-77731 Willstätt Phone: +49 (0) 78 54/96 60-0 Fax: +49 (0) 78 54/96 60-50 info@kronen-germany.de... -
Page 20: Appendix
Chocolate Heater Appendix Declaration of Conformity EG - LVD 2006/95/EG, EMC 2014/30/EC, (EC) VO 1935/2004, WEEE 2012/19/EC and RoHS 2011/65/EC. Authorized Person: Christian Höltge KRONEN Küchengeräte GmbH Gewerbestraße 3 D-77731 Willstätt Manufacturer: KRONEN Küchengeräte GmbH Gewerbestraße 3 D-77731 Willstätt declares that the following product:... - Page 21 Manual Chocolate Heater Circuit plan...
-
Page 22: Index
Manual Chocolate Heater Index Circuit plan ....................... 21 Cleaning ......................17 Connected load ....................10 Control lamp ..................... 11 Customer service ..................... 19 Declaration of Conformity ................. 20 Defects and Claims .................... 5 Disposal ......................7 Drain tap ......................11 Error Correction ....................
