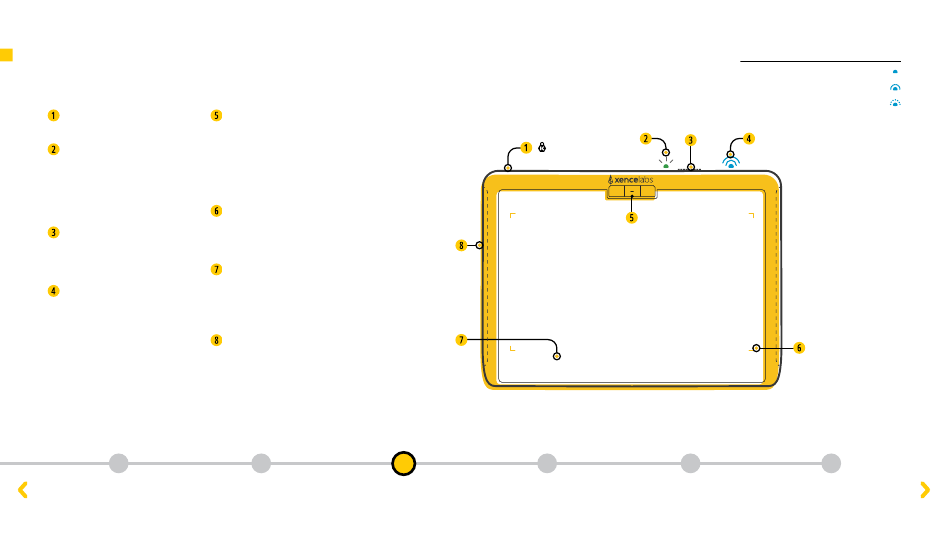

Tablet Features
Xencelabs Pen Tablet Small / Medium
Security
Kensington NANO Security Slot
Charging Indicator
Solid green light indicates full
charge, breathing green light
indicates charging, solid amber
light indicates the device has a
low charge.
Power Slide Switch
Slide and hold to turn on/off.
Adjustable sleep times are in
the settings panel.
Connection Indicator
Blinking blue light indicates
searching for connection, solid
blue light indicates successful
wireless connection and
breathing blue light when
connected via USB cable.
1
What's in the box
Buttons
Three buttons at the top of the
tablet give access to commonly
used functions.
All the buttons can be easily
re-assigned in the software
settings panel.
LED Active Area Markers
Active area brightness and color
can be changed in the settings
panel.
Curved Palm Rest
Seamless transition from the
drawing area to the gently
curved palm rest for increased
comfort.
Sculpted Returns
Allows for easy pickup.
3
2
Initial Setup Tablet Features
4
Connect Wirelessly Device Charging
Connection Indicator
Solid Blue – Connected
Breathing Blue – Wired Connection
Blinking Blue – Trying to Connect
Connection
indicator
5 6
