Read these instructions carefully before proceeding with the installation! Liability for damage due to improper
installation or non-observance of these instructions is expressly excluded.
Scope of delivery
ElMod FusionX
circuit board
•
• Volume control with cable and connector
• Cable for connection of the radio receiver
• Plugs for connecting one battery and two drive motors
• 15A inline fuse
• a cable for connection of a loudspeaker
• a USB dongle and USB cable for connection to the computer

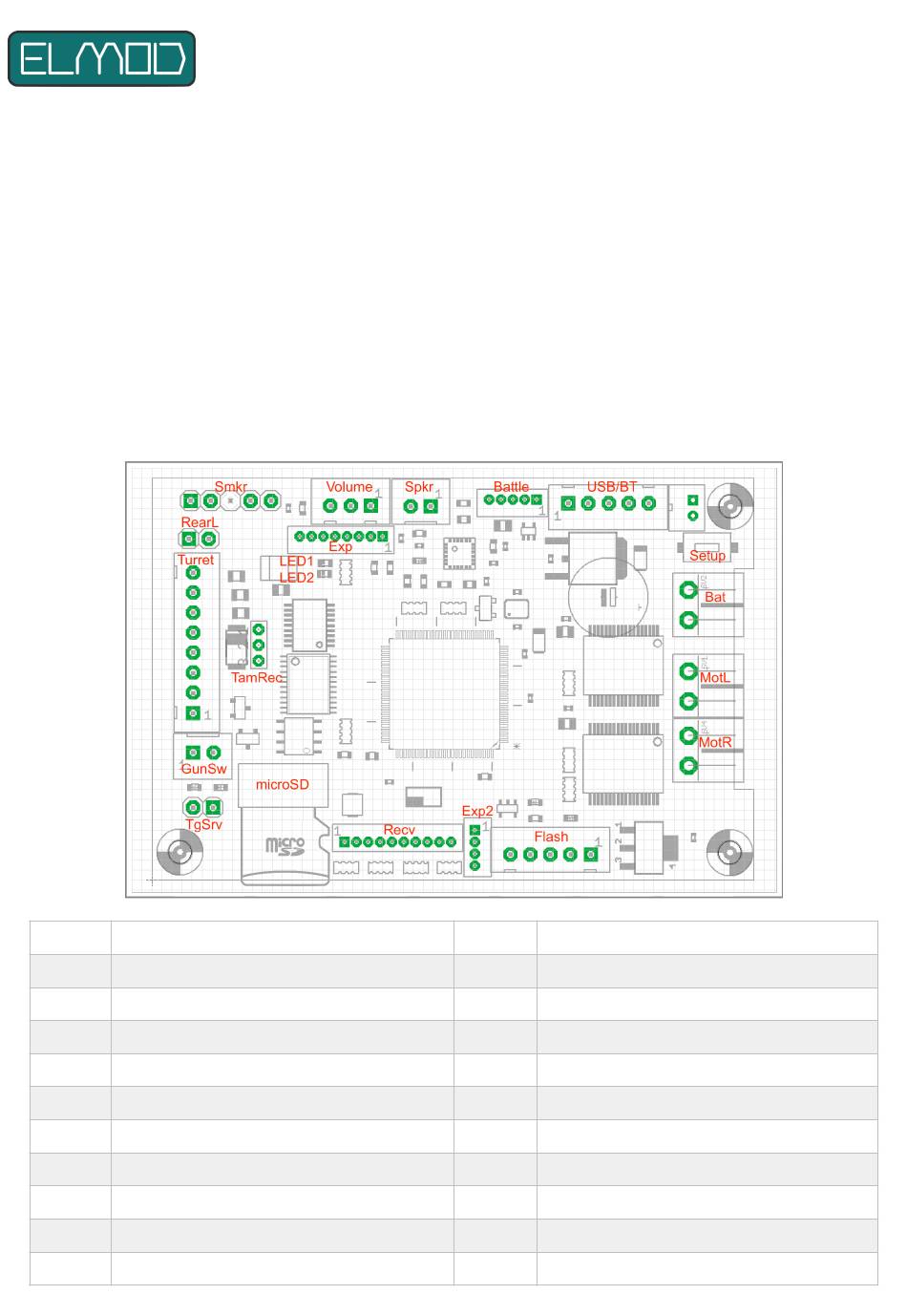

Connections overview
Bat
Battery connection
MotL
Left drive motor connection
MotR
Right drive motor connection
Setup
Setup button
USB/BT Connection USB/Bluetooth dongle
Battle
Connection for FX Battle
Spkr
Loudspeaker connection
Volume
Volume control connector
Exp
Connector for FX Expander
Smkr
Connector for smoke generator
RearL
Rear light/brake light connector
ElMod FusionX
Installation instructions and user manual
Turret
GunSw
TgSrv
TamRec
microSD microSD slot with microSD card
Recv
Exp2
Flash
LED1
LED2
-
1
-
Connection turret group
Connection shot end position switch
Connection Taigen servo based barrel recoil
Connection for a Tamiya barrel recoil
Connection receiver
Connection for FX SBus or FX Stabi
Connector for muzzle flash
Status LED (blue)
Error LED (red)
Advertisement
Table of Contents
Summary of Contents for ElMod FusionX
- Page 1 ElMod FusionX Installation instructions and user manual Read these instructions carefully before proceeding with the installation! Liability for damage due to improper installation or non-observance of these instructions is expressly excluded. Scope of delivery ElMod FusionX circuit board • • Volume control with cable and connector •...
-
Page 2: Connection Of The Power Supply
Make sure that no short circuits can occur here during operation of the model. There is a risk of fire! ElMod FusionX is equipped with a voltage monitor that protects the battery from deep discharge. The battery... - Page 3 All turret components are always supplied with full battery voltage. If motors with a lower voltage are to be used, the voltage must be reduced by adjusting the maximum speed in the ElMod App. For example, if a 7.2 V motor is used together with a 12 V battery, the maximum speed setting for this motor must be set to 60%.
- Page 4 If your wiring differs from the one described here or if you are unsure, make sure to contact the support of your dealer! Errors in the wiring can damage or destroy the electronics of the tank or the ElMod board! Muzzle flash...
-
Page 5: Other Connectors
ElMod FX SBus) or for ElMod FX Stabi, a 2-axis stabilization of the main gun. • "Battle" connection. With ElMod FX Battle different IR Battle systems can be used: • Tamiya Battle Unit ® • HengLong Battle System ® • Taigen Battle System... -
Page 6: Installation
(motors). This can cause drastic decrease of the radio signal, loss of radio communication and loss of control over the model. ElMod FusionX is equipped with fail-safe mechanisms to help detect radio signal failure. However, receivers may react unpredictably to a loss of radio connection, depending on the manufacturer and settings, and e.g. - Page 7 ® smartphone/tablet. This requires the optionally available ElMod Bluetooth, which is connected to the "USB/BT" connector. For setting up the parameters or testing the functions, the vehicle may also be controlled using the USB connection (not available for the Android ®...
-
Page 8: Basic Functions
Master volume Rotary knob If you are having trouble detecting and operating your radio with the ElMod FusionX, the ElMod App provides all necessary status information. Troubleshooting assistance can also be found in our knowledge base (link and QR code can be found at the end of this manual). Alternatively, contact your dealer's support who will be glad to assist you. ... -
Page 9: Extended Functions
No receiver signal detected or signal faulty ElMod FusionX. Undervoltage or overvoltage shutdown off active No SD card inserted, card or its contents faulty (operation still possible, but only with... -
Page 10: Reset To Factory Defaults
® ® installation package. Alternatively, the driver can be downloaded directly from the manufacturer. The link can be found in the service area of our website (www.elmod.eu). Under MacOS the driver is already integrated in the system. To run the... -
Page 11: Update Der Firmware
To set the PCB in update mode, switch off the voltage and press and hold the setup pushbutton on the ElMod FusionX. Switch the voltage on again. The blue status LED blinks three times. Now start the ElMod App and press the red "Update"... - Page 12 Nicht geeignet für Kinder unter 14 Jahren. Not suitable for Children under 14 years. Ne convient pas pour des enfants de moins de 14 ans. Niet geschikt voor kinderen onder de 14 jaar. ElMod Thomas Kusch Seebuckweg 9 D-78054 Villingen-Schwenningen, Germany ElMod Thomas Kusch info@elmod.eu...
