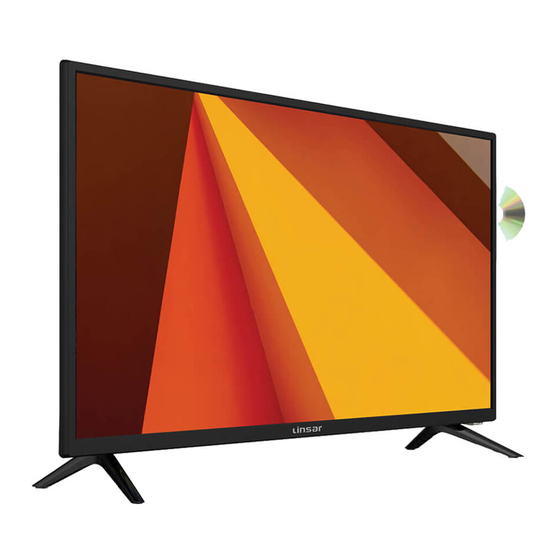

Linsar LS32CHD12V User Manual

32” hd tv with built-in dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

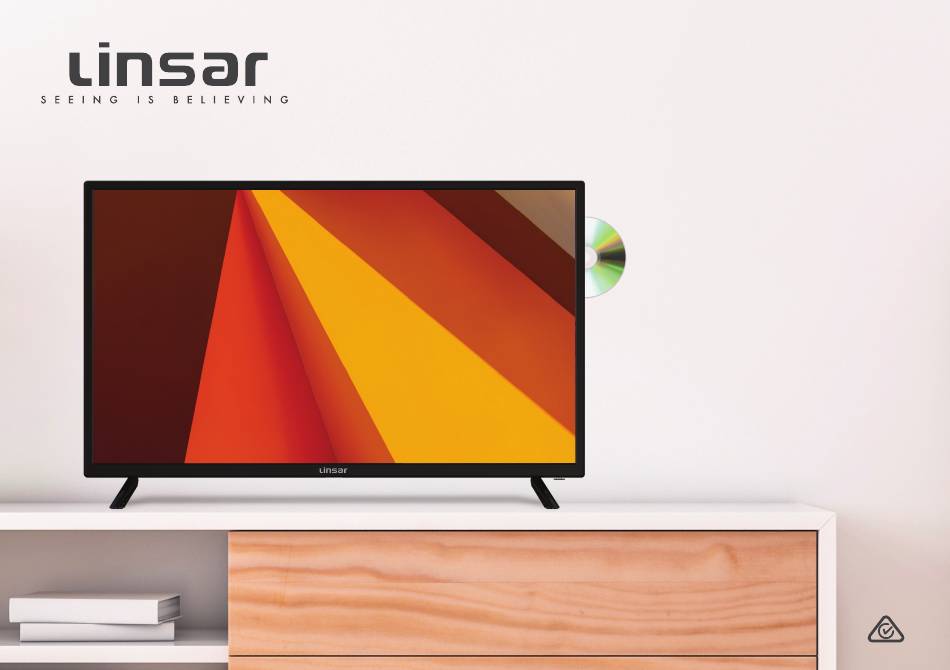

32
"
HD TV
WITH BUILT-IN
DVD PLAYER
MODEL: LS32CHD12V
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS32CHD12V and is the answer not in the manual?

Questions and answers

Related Manuals for Linsar LS32CHD12V

Summary of Contents for Linsar LS32CHD12V

  • Page 1 ” HD TV WITH BUILT-IN DVD PLAYER MODEL: LS32CHD12V User Manual...

  • Page 2: Welcome

    Please take special note of any important safety and usage information presented with the symbol. All products brought to you by Linsar are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.

  • Page 3: Table Of Contents

    Contents DVD Mode On-Screen Set Up Welcome Basic DVD Movie Playback TV Setting Menus Unpack and Prepare Media File Playback Picture What's in the box Menu Navigation Sound Important Tips Troubleshooting Channel (DTV and ATV) Attaching the stand Lock Specifications Wall-mounting the TV System Connect to power...

  • Page 4: Unpack And Prepare

    Unpack and Prepare What's in the box Before installing your new TV, check you have everything needed. In the box you will find: A. 32" HD TV with Built-in DVD Player B. Remote Control C. AAA Batteries (2) D. 12V Car Adaptor E.

  • Page 5: Important Tips

    Important Tips • Place the TV on a level surface. • Place the TV away from any source that may generate heat or vibrations. • Make sure there is enough space around vents for airflow. • The remote control works up to 5 metres away from the TV. •...

  • Page 6: Attaching The Stand

    Attaching the stand • This TV is heavy! We recommend asking someone to help you lift it. • Unplug the TV from the power outlet before installing or removing the stand. • Only touch the frame, not the screen. • It is highly recommended to use safety straps for securing the TV.

  • Page 7: Wall-Mounting The Tv

    Wall-mounting the TV • Unplug the TV from the power outlet before wall-mounting. • Contact a professional for assistance with wall-mounting the TV. Required 200mm • VESA Mounting Bracket • 4 x M6*10mm screws (or longer as required) The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included).

  • Page 8: Connect To Power

    Connect to power Don't forget to plug in the TV to the power outlet. Leave the power switched off until installation is finished. Make sure the TV is switched off at the power outlet until you have finished connecting your cables. Connect to 12V power source 12V power outlet 12V car adaptor...

  • Page 9: Connect Your Antenna

    Connect your antenna Free-to-air TV in HD (High Definition) Example HD Channels ABC HD High Definition (HD) channels SBS ONE HD provide the best viewing quality and are available with a digital antenna connection. 10 HD PRIME7 HD WIN HD Antenna cable not included. UNPACK AND PREPARE | 9...

  • Page 10: Controls And Connections

    Controls and Connections Get to know your TV On/Standby light and Remote sensor DVD Slot Buttons on the TV 1. STANDBY : switch the TV on or to standby. 2. VOL - / VOL + : decrease/increase the volume STANDBY level.

  • Page 11: Ports On The Tv

    Ports on the TV HDMI IN 2 HDMI IN 3 Audio IN HDMI IN All-digital connection between the TV and any HDMI device. Use a HDMI Supports High Definition (HD). Requires a HDMI cable cable for best picture and (not included). sound quality.
  • Page 12 Headphone Connect to your headphones, amplifier or audio device, using an Jack AUX cable (not included). Component You can use this to connect your DVD player. Supports High Definition (HD) picture quality. This also requires a component cable (not included). PC IN Connect your PC and its Audio to your TV.

  • Page 13: Remote Control

    Remote Control Setup Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the AAA size batteries are correctly aligned and properly pushed into batteries place. included Precautions When Using Batteries • Do not use old and new batteries together. •...

  • Page 14: Using The Remote Control

    Using the Remote Control To use the remote, point it towards the remote sensor at the front of the TV. The remote will not operate if its path is blocked. The remote has a range of up to about 5 metres from Remote Hints and Tips the TV at an angle of up to 30 degrees to either side of the sensor, as illustrated below.

  • Page 15: Standard Remote

    Standard Remote STANDBY: Switch the TV to On or Standby. /GOTO: Jump to a different chapter of the TV/RADIO / EJECT: Switch between TV or radio DVD. / Eject a disc (DVD). /ANGLE: View DVD playback from different /A-B: Repeat selected DVD scenes. angles, if the DVD has this feature.
  • Page 16 GUIDE SOURCE: Switch the input source. /MUTE: Mute the sound. Press again or GUIDE: Launch the TV Guide (DTV). press VOL+ to restore the sound. CH +/-: Change to the next or previous VOL +/-: Turn the volume up/down. channel. DISPLAY: Display information of the current program.

  • Page 17: On-Screen Set Up

    On-Screen Set Up Make sure the TV is plugged in at Make sure equipment is properly connected (as shown on pages the power socket and switched 11-12) before connecting the TV to power. on. Press the (STANDBY) button to turn on the TV. On/Standby light is RED in standby mode.

  • Page 18: Tv Setting Menus

    TV Setting Menus Menu Navigation Buttons Once you have programd any settings, the unit will retain them in Press the MENU button to display the TV settings menu. its memory until you change them, See the guide below for all the other buttons you'll need even after turning the TV off.
  • Page 19 Sound Lock • Enable • Sound Mode • Channel Locks • Treble • Parental Rating • Bass • Lock Keyboard • Balance • Hotel Mode • Sound Delay • New Password • Surround Sound • Clear Lock • EQ Setting System •...

  • Page 20: Picture

    Picture Original Images are for reference only. Picture Mode (default): Default picture settings for home use. Home Brightness Bright Room : Enhance the picture for bright home environments. : Enhanced brightness, contrast, colour depth and edges so content stands out. Dynamic : Enhanced brightness with lower contrast, colour depth and edges.
  • Page 21 Option Description Adjust the on-screen colour tone (for NTSC system only). Colour Temp Adjust the on-screen colour temperature. Aspect Ratio Adjust the video size. Sizes may differ between input sources. Screen Mode Adjust the screen mode for HDMI inputs. (HDMI mode only) Advanced Settings Option Description...

  • Page 22: Sound

    Sound Option Description Sound Mode Standard Music Personal Movie These options are available in the Personal sound mode: Option Description Treble Adjust the levels of higher pitched sounds. Bass Adjust the levels of lower pitched sounds. Option Description Balance Adjust the audio output between the left and right speakers. Sound Delay Adjust if the sound and picture are not synchronized.
  • Page 23 Select the sound EQ (equalizer) to your desired mode. EQ Setting In Personal mode you can further personalise the sound quality by adjusting EQ frequencies. AVL (Auto Turn On to keep the volume level consistent. Volume Level) S/PDIF Mode Set the digital sound output setting. AD (Audio Audio Description (AD) provides an additional audio track for visually challenged persons Description)

  • Page 24: Channel (Dtv And Atv)

    Channel (DTV and ATV) Option Description Automatically tune all available free-to-air TV channels. Adjust settings (default settings are set for Australia). Press Auto Scan OK or to start scanning. Manual Scan See Digital Manual Scan and Analog Manual Scan below for information. Digital Manual Manually select and tune digital TV channels.
  • Page 25 Channel Edit Use the buttons to highlight a channel. Option Description A-B to enter Move Mode. Use the Move the channel location on the list. Press buttons to select a Move A-B to confirm it. position and press Delete GOTO to delete the highlighted channel. Press Skip ANGLE to skip the highlighted channel.

  • Page 26: Lock

    Lock 0000 Factory Password: Enter the factory password '0000' using the number buttons on the remote and select 'OK' on-screen. If you changed your 4711 Master Password: password but forgot it, you can still use the master password. Option Description Enable Enable/disable the lock on the system.
  • Page 27 Hotel Mode Option Description Active Hotel Mode Turn On/Off Hotel Mode. Max Vol Set a limit to the maximum volume level. Default Vol Set the default volume level. Source Lock Turn On/Off the lock on available sources. Default Source Set a default input source. Default DTV Program Set the default digital program.

  • Page 28: System

    System Option Description OSD Language Select your preferred On Screen Display language. Audio Languages Select your preferred audio language. (Available for digital channels, depending on the program.) Subtitle Turn subtitles On/Off (available for digital channels, depending on the program). For hearing impaired users, this function explains scenes or actions via a descriptive caption. (Available for Hearing Impaired programs that contain related captions.) Teletext...
  • Page 29 Time Settings Option Description OSD Timer Select the desired OSD (on screen display) menu duration. Sleep Timer Select the desired Auto Sleep (Standby) duration. Auto Sleep Sets the time when the TV will enter Standby mode due to inactivity. Time Zone Adjust your timezone.
  • Page 30 HDMI CEC Control Setup This feature allows for your TV and your connected HDMI device to be controlled by one remote. Press the SOURCE button on the unit or remote control to select the HDMI input source. Option Description HDMI CEC (Consumer Turn HDMI CEC On/Off.

  • Page 31: Pvr Settings

    PVR Settings To make changes to PVR (Personal Video Recording), ensure your USB drive is inserted into the TV. Check the troubleshooting section if you're having problems setting up your USB device. Scheduled Record File Manager Function Remote Button Function Remote Button ANGLE Delete the highlighted file...

  • Page 32: Tv Guide

    TV Guide (Free to air TV) TV Guide Functions To access the TV guide, Function Remote Button press the GUIDE button on Switch between the channels list and programs list the remote. To activate the TV Channels Select a Channel or Program use the buttons to select a channel in the left...

  • Page 33: Recording

    Recording Important Tips: • Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction. • You cannot change channels while in recording mode. •...

  • Page 34: Recording Live Tv

    Recording, scheduled recording and pause Before you can record with this TV (including time-shift recording), you must live TV functions only work in DTV mode insert your USB storage device into the (free-to-air). USB port. Recording Live TV Instant Recording Press REC/D.SETUP once - start recording.

  • Page 35: Pause Live Tv (Time-Shift)

    Pause Live TV (Time-shift) Recording, scheduled recording and pause live TV functions only work in DTV mode Temporarily pause the live TV signal, then resume (free-to-air). playback at your convenience. Before you can record with this TV (including time-shift recording), you must insert your USB storage device into the USB port.

  • Page 36: Usb Mode

    USB Mode You can only play Photos in the Photo category, Music in the Music category and so on. Make sure you select the correct category for the file you wish to play. Set up Function Remote Button Insert your USB into a USB port on the TV. Choose a source or file Press the SOURCE button to select 'USB' mode.
  • Page 37 Playback Functions Music Function Remote Button Playback of different media types have different controls. Navigate to a folder or file Photo Play a track Function Remote Button Navigate to a folder or file Fast forward or rewind the track Skip or restart the current track Display a photo Display the Quick Menu Hide or display the on-screen...
  • Page 38 Text Function Remote Button Navigate to a folder or file Open the text file Navigate to the next/previous page Display the Quick Menu Only supported file types will be displayed. See the specifications table for Return to the file list supported file types.

  • Page 39: Dvd Mode

    DVD Mode Function Remote Button Navigate to a folder or file Basic DVD Movie Playback Play / Pause Press the SOURCE button on the back panel, or on the remote control, to switch the unit to DVD mode. Stop Skip Forward Skip Backwards Eject When a menu screen appears on the unit, press the /...
  • Page 40 Skipping Ahead or Backwards Viewing From Different Angles Skipping ahead: Duri ng playback, press the button to Some DVDs may contain scenes which have been shot skip the next chapter (DVD) or track simultaneously from a number of different angles. For (Video CD/CD).
  • Page 41 Repeat Play Press the REPEAT button during playback, it will repeat play one chapter or one title (for DVD disc), or repeat play the track (for VCD/CD). A-B Repeat Play This button lets you repeat sections between two specific points (A-B repeat).

  • Page 42: Media File Playback

    Media File Playback Music File Playback Insert a disc which contains music files and after a few seconds, the screen will show all the folders on the disc. Use the / / buttons to select the folder you want to play, then press OK to confirm.
  • Page 43 During normal playback, press the button to play the previous or next file. Press the REPEAT button on the remote control to change the play mode. - SINGLE: Play one file only. - REPEAT ONE: Repeat one file. - REPEAT FOLDER: All the files in the folder will be played repeatedly. - FOLDER: All the files in the folder will be played.
  • Page 44 Skip to the Next/Previous Picture Example: To play track 9, press 0 and 9, several seconds later, it will automatically switch to track 9. To play Press button to skip to the next picture or button track 15, press 1 and 5, several seconds later, it will to skip to the previous picture.

  • Page 45: Menu Navigation

    Menu Navigation DO NOT store discs in humid or dusty areas, or where they are exposed to direct sunlight or sources of heat (such as a heating appliance). Press the D.SETUP/REC button on the remote control. Use the / / buttons to select the preferred item, then press OK to display the setup page where you can Cleaning Dirty Discs...
  • Page 46 General Setup Page Preference Setup Page TV Display: This setting is for selecting the TV output TV Type: Select the TV system. mode. Available options: Audio: Use this item to select the desired audio Normal/PS (Pan & Scan mode), Normal/ LB (Letter Box language, if your disc contains multiple audio languages.

  • Page 47: Troubleshooting

    Troubleshooting If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution Check the power outlet is turned on. If using a multi-outlet, check if it is working properly. To check whether a power strip is working properly, plug the No power TV’s power plug directly to a wall outlet and make sure the white indicator light on the TV is lit.
  • Page 48 Problem Solution Ensure all equipment is connected properly. Ensure the input setting for the TV is correct. Ensure source input and audio settings on the external device are set correctly. Ensure the volume is not muted. If it is, press the /MUTE button to restore the sound.
  • Page 49 Problems relating to your USB media storage device Problem Solution First, refer to the instructions describing how to use USB devices with this TV. If the problem still occurs, your USB device may not be compatible. Some USB storage devices may not be compatible with this TV. My TV does not This TV has been tested with the majority of Flash memory-based devices and hard disks (media players recognise my USB...

  • Page 50: Specifications

    Specifications With stand: 732 x 192 x Active screen size 80cm (diagonal) 480 mm Dimensions (W x D x H) Resolution Without stand: 732 x 70 1366 x 768 x 434 mm Refresh rate 60Hz 4.15 kg HDMI version 1.4a Weight Gross 5.60 kg...

  • Page 51: Compliance And Responsible Disposal

    Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can National Television and Computer Recycling be a suffocation hazard for babies and young children, please ensure all packaging materials are out of Scheme reach and are safely disposed of.
