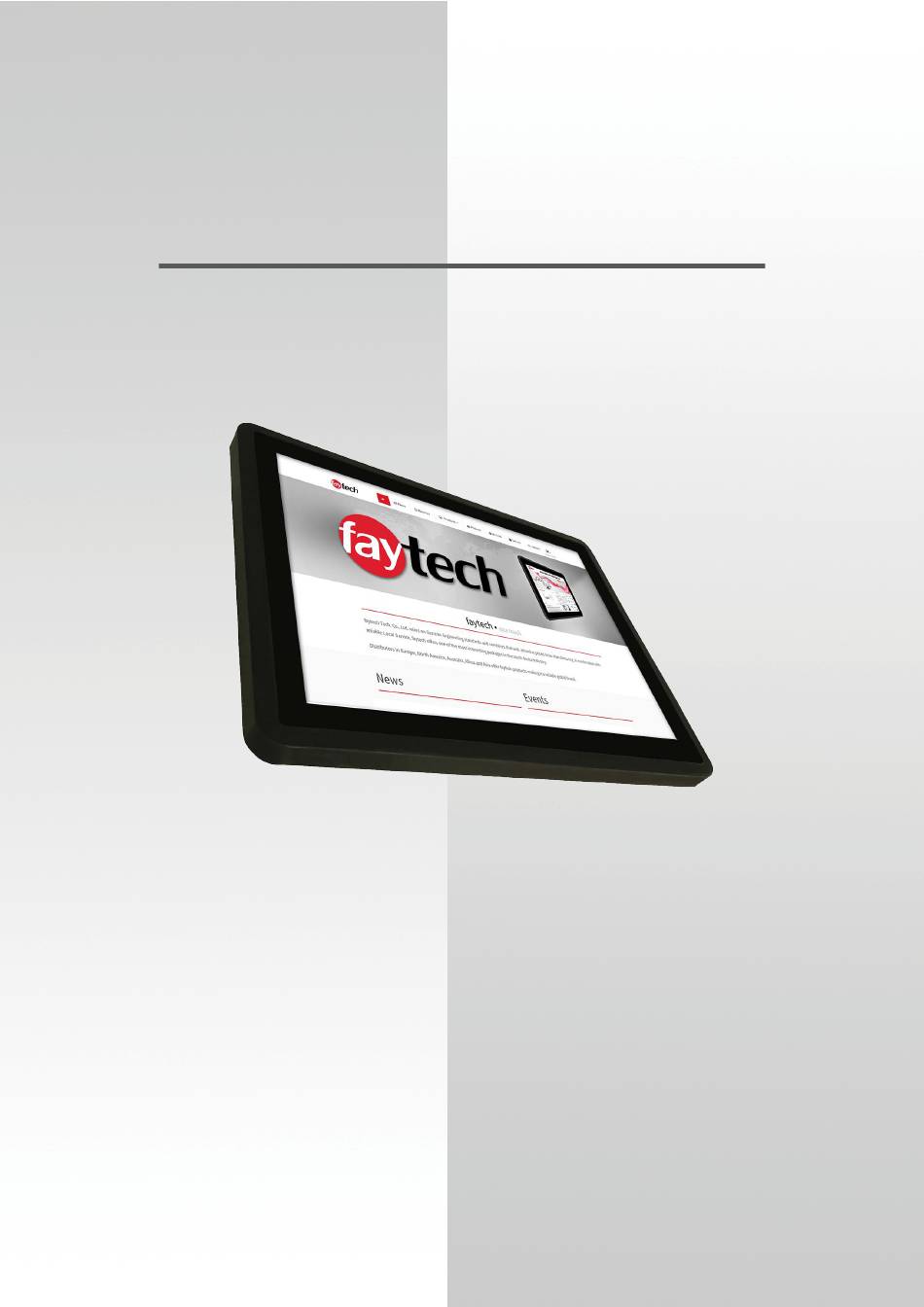

- Page 1 Instruction Manual Please read this manual carefully prior to use of the product, and keep it properly. Capacitive Touch PC (Rubber Frame) Series Apollo Lake (N4200 / N3350)
-
Page 2: Table Of Contents
Table of contents Table of contents Foreword Notes of Documentation Disclaimer Copyright State of Delivery Explanation of the safety symbols Basic security measures Duty of care for the operator Requirements for the operating personnel General warning Warranty Product description Appropriate use Interfaces Status LEDs Scope of delivery... -
Page 3: Foreword
All components are delivered in specific hardware and software configurations depending on the application requirements. Changes to the hardware or software configuration, which go beyond the documented possibilities are not permitted and result in the exclusion of liability of faytech AG. English - 3... -
Page 4: Explanation Of The Safety Symbols
Foreword Explanation of the safety symbols The following safety symbols are used in these operating instructions. These symbols are primarily intended to draw the reader's attention to the text of the adjacent safety instructions. Acute danger of injury! If the safety instruction next to this symbol is not observed, there is an DANGER immediate danger to life and health of persons. -
Page 5: Basic Security Measures
Foreword Basic security measures Before the Touch PC may be switched off, the running software must be closed as usual. Otherwise data on the hard disk may be lost. Please read the section Switching the Touch PC on and off. Switch off all system components, then disconnect the fieldbus Before opening the Touch PC housing and whenever the Touch PC is not Attention... -
Page 6: Duty Of Care For The Operator
Foreword Duty of care for the operator The operator must ensure that: • The Touch PC is only used for its intended purpose (see chapter Product Description). • The Touch PC is only operated in a faultless, fully functional condition. •... -
Page 7: Warranty
24 months as measured from the date of original shipment. faytech's obligation under the Warranty contained herein is limited to the repair or replacement... - Page 8 If your device does have a defect within the warranty period, please contact faytech directly. The warranty period is 24 months from the date of purchase under the following conditions: •...
-
Page 9: Product Description
Product description Product description Appropriate use The faytech Capacitive Touch PC series are used in many different application areas (in industrial or retail applications). Front of the Capacitive Touch PC (15" as example) Right side of the Capacitive Touch PC (15" as example) -
Page 10: Interfaces
Product description Interfaces Interfaces of the Capacitive Touch PC COM1 - 12V/5V/RI options Pin definition for COM1 / COM2 can be selected by the jumper of the mainboard COM1 / COM2 (DCD1) (DSR1) (RXD1) (RTS1) +12V (TXD1) (Default) (CTS1) (DTR1) (RI1_F_VCC) D_SUB_9P Right side of the... - Page 11 Product description 8 9 10 Pin definition for COM3 / COM4 1 2 3 4 5 6 1. RS-485 A+ 2. RS-232 TX 3. GND 4. NC 1. DIO_GP42 2. DIO_GP41 5. RS-232 RX 3. DIO_GP40 4. DIO_GP37 6. RS-485 B- 5.
-
Page 12: Status Leds
Product description Status LEDs No LED There is no power supply. Green LED The touch PC is switched on. Red LED The Touch PC is connected to a power source, but it is currently switched off. Moving or cleaning the device Make sure that you only clean or move the device when the LED light is off. -
Page 13: Installation Instructions
5. Check the package contents for visible transport damage. 6. If you notice transport damage or discrepancies between the contents of the package and your order, please inform the faytech service. English - 13... -
Page 14: Mounting Options
Installation instructions Mounting options There are several ways to mount the device: 1. use the VESA-75 or VESA-100 holes on the back to mount the unit on a wall or stand. VESA 75/100 Wall Mount VESA Holes VESA 75/100 Metal Stand 2. - Page 15 Clamp Support documentation - available on each separate product specification sheet (www.faytech.com/products/products-overview/) Own mounting solution Of course it is also possible to use your own mounting solutions. faytech is not responsible for the proper use of the mountings. Note English - 15...
-
Page 16: Connecting The Device
Driver installations In order to fully utilize all functions of the faytech touch PCs, it is recommended to download the required drivers from the faytech website in the download section (www.faytech.com/downloads/). Drivers available on our website for this product series: - Apollo Lake Mainboard Drivers (N4200 / N3350) - Windows 10 All drivers packed together, related to this product series with Windows 10 OS. -
Page 17: Operating Instructions
To get the most out of your device, you must download the correct drivers for your device. You can find these drivers on the website under Downloads: www.faytech.com/downloads. This series uses the Apollo Lake mainboard and therefore requires the appropriate drivers. -
Page 18: Troubleshooting
4. If none of the above points leads to success, please contact our direct Manufacturer service, under the contact details given below. Touch function is not accurate www.faytech.com 1. Please download the latest touch drivers from our website and perform a recalibration to recalibrate the touch screen. -
Page 19: Service And Support
Anything shipped with postage due will be rejected. Within the first 30 days after the purchase of a new faytech product, we will refund the shipping costs for returned defective products. For the rest of the warranty period, we will only cover shipping costs for repaired or replaced items that we ship back to you (one way). -
Page 20: Appendix
Appendix CE Declaration of Conformity Hereby faytech AG declares that the equipment is in compliance with the essential requirements and other relevant regulations of the directives 2014/53/EU and 2011/65/EU. The long version of the CE Declaration of Conformity can be found in English at: www.faytech.com/ce...
