INSTRUCTIONS FOR USE OF PROFESSIONAL PNEUMATIC GUN MOD. RC120N
ATTENTION
This symbol will draw your attention to the points concerning safety.Carrefully read and observe the instructions within.
Before using the gun, read and observe the instructions for use.
Before performing any repair, mantenance or replacing operations, disconnect the gun from the air supply.
Before performing any repair or maintenance operations, consult the gun supplier or specialised staff so as not to annul the warranty
due to voluntary misuse of the gun.
When choosing the product and before using the product to be delivered from the gun, check the safety instructions of the product to see
that it is compatible with the work environment and with each protection device used.
Never point the pistol at yourself, other persons or animals, but only at the object being treated.
When in use, wear protective garments such as gloves, goggles, mascks, overalls, etc.., according to the safety instructions of the product
used.We do recommed, however, wearing protection goggles al the time.

3-PACKING AND STORING

The gun is supplied in separate white keb cardboard boxes, low wave thickness 2.8-3 mm; the gun is in a polythene bag.The net weight is around 1050
grams for mod.RC120N.
Setting AT WORK

4.1 AIR SUPPLY SYSTEM

The gun is to be connected a compressed air sistem
having specific features.The gun is equipped with a
1/4 male connector to be connected according to spe-
cific requirements.
*Air consumption is reduced and proportional to the
number of times the product delivery lever is released.

4.2 REPLACING BAG

When the bag is being replaced or whenever the back ring nut in unsrew from the tube, disconnect the gun from the air supply, taking care that the bag is
not violently exspelled by accidental pressure on the lever, which may injure the operator or the persons around him.

PRODUCT IDENTIFICATION

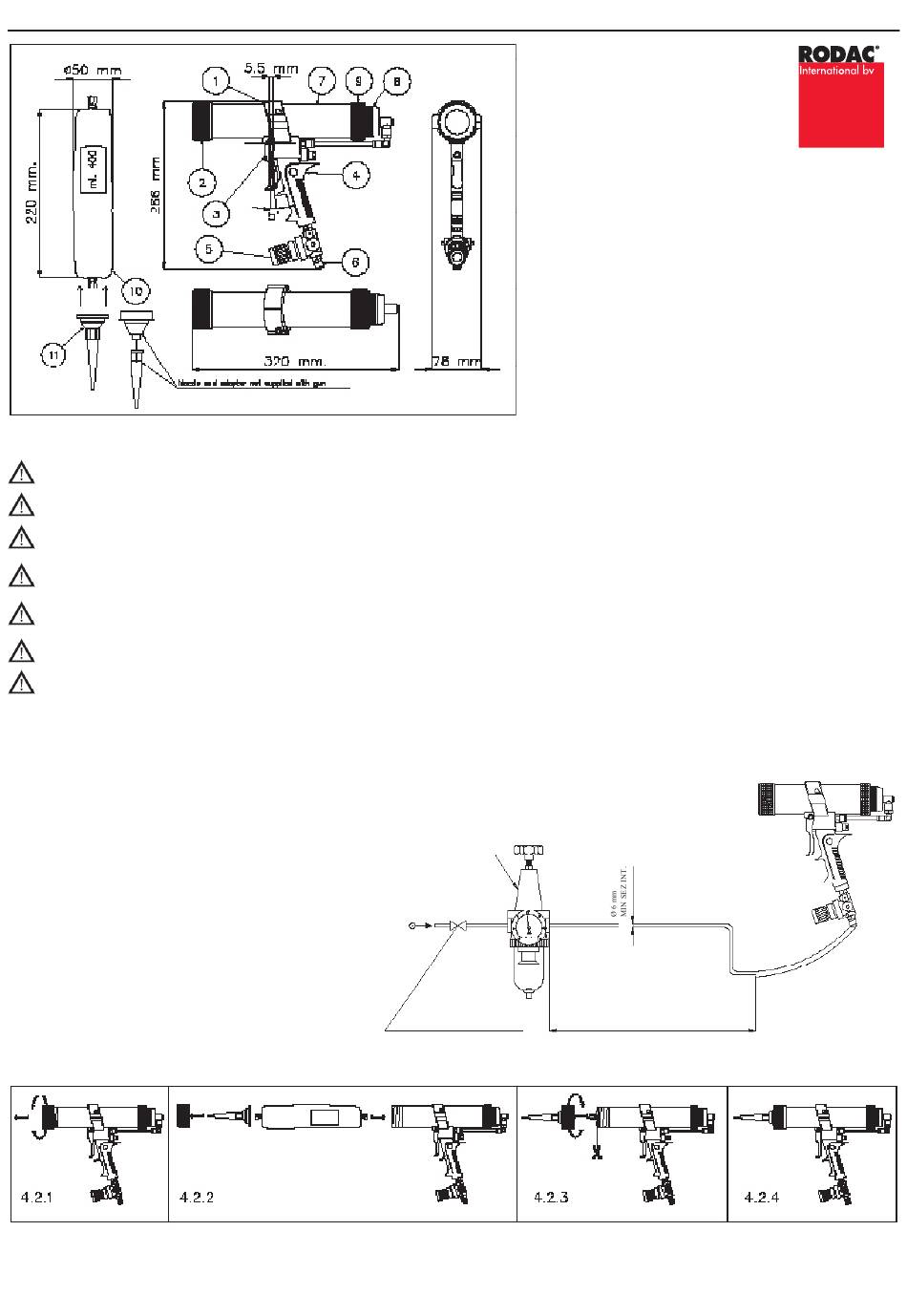

1-GUN BODY
2-FRONT RING NUT
3-CONTROL LEVER
4-GRIP
5-PRESSURE REGULATOR
6-1/4 GAS SUPPLY
7-MATERIAL HOLDER TUBE
8-RAPID OUTLET VALVE
9-BACK RING NUT
10-STANDARD BAG IN COMMERCE(300-
400-600ml)
11-NOZZLE SUPPLIED
FILTER REDUCER
MIN FLOW RATE
200lt/min.
SUPPLY TAP
WORKING PRESSURE 5-8 bar
MAX PRESSURE 10 bar
MAX LENGHT DELIVERY TUBE 10 mt
