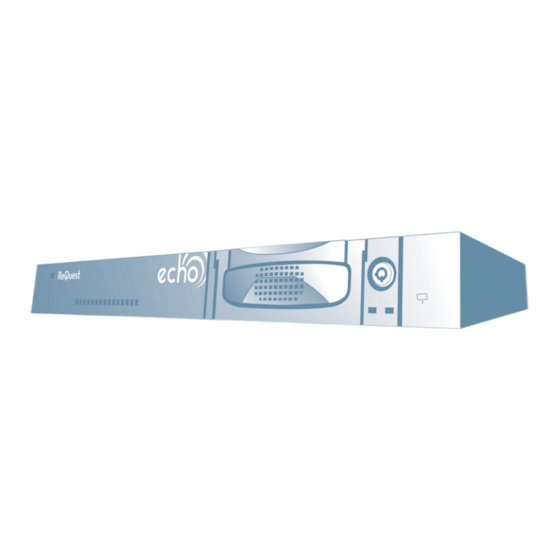

Manual for the
echo
Backup System
Connecting the echo
to an iQ or AudioReQuest
1.
Power off the iQ.IMS or AudioReQuest.
2.
Connect the
echo
to power and to one of the rear USB ports of the IMS or
AudioReQuest.
3.
Insert a ReQuest hard drive into the
Make sure to lock the hard drive with the supplied key to engage the drive (Turning
key in lock 90º clockwise).
4.
Power on the
echo
with the power switch on the back of the unit, and then
power on the iQ.IMS or AudioReQuest.
Note: After booting with an
echo
start its initial synchronization backup.
To check on the iQ.IMS or AudioReQuest:
a.
Go to the "Menu" (flash movie or LCD)
b.
Select "Advanced"
c.
Select "Sync echo Now"
d.
Select "Yes"
The
echo
should now be syncing.
In case of failure of an iQ.IMS or
AudioReQuest drive:
1.
Power off the iQ.IMS or AudioReQuest by pressing the front power button (under
the faceplate of the AudioReQuest) and wait until the unit is powered down.
2.
Power off the
echo
with the power switch on the back of the
3.
Remove the failed hard drive from the iQ.IMS or AudioReQuest. (Turning key in
lock 90º counter-clockwise)
4.
Remove the working hard drive from the echo. (Turning key in lock 90º counter-
clockwise)
5.
Insert
echo
hard drive into the iQ.IMS or AudioReQuest, and lock it. (Turning key
in lock 90º clockwise)
6.
Power up the iQ.IMS or AudioReQuest.
7.
Call ReQuest Customer Service and arrange an RMA for the failed hard drive.
When you receive an
replacement hard drive from ReQuest:
echo
1.
Power off the iQ.IMS or AudioReQuest by pressing the front power button (under the face plate of the
AudioReQuest) and wait until the unit is completely off.
2.
Power off the
echo
with the power switch on the back of the
3.
Insert replacement hard drive in the echo, and lock it. (Turning key in lock 90º counter-clockwise)
4.
Power on the iQ.IMS or AudioReQuest and the echo.
5.
When the AudioReQuest is booted:
a.
Go to the "Menu" (flash movie or LCD)
b.
Select "Advanced"
c.
Select "Sync echo Now"
d.
Select "Yes"
The
echo
should now be syncing.
echo
with version 4.1.1 or later installed.
attached for the first time, the
echo
should automatically
echo
unit.
echo
unit.
Hard Drive Lock
Power Button
(back of echo)
© 2007 ReQuest Inc.
100 Saratoga Village Blvd
Suite 44
Ballston Spa, NY 12020
www.request.com/support
1-800-236-2812
