ACR- 4 Dash Control Installation
Placement and Mounting – The dash control may be mounted under the
dash using its own bracket or through a custom hole in the dash. It
should be within reach of the driver and in a spot where the LED is
plainly visible.
Dash Bracket Installation – The dash control mounts with four screws which
attach to the underside of the dashboard. Slide under the dash and place
the dash control in its mounting position, mark the four mounting holes,
drill pilot holes, and secure with four screws.
Custom Installation – For that custom, finished look, the dash control can be
flush mounted directly on the dash board (or anywhere else).
Start by removing the two knob set screws and removing the knobs.
Remove the two screws securing the enclosure to the bracket and
remove the enclosure. Loosen and remove the nut and washer securing
the potentiometer to the bracket. Remove the circuit board assembly
(potentiometer, LED, phone jack) from the bracket.
Drill a 9/32" hole in the dashboard for the potentiometer along with a
1/8" hole for the lock tab, and a 1/8" hole for the LED. Reassemble the
dash control components on the dashboard.

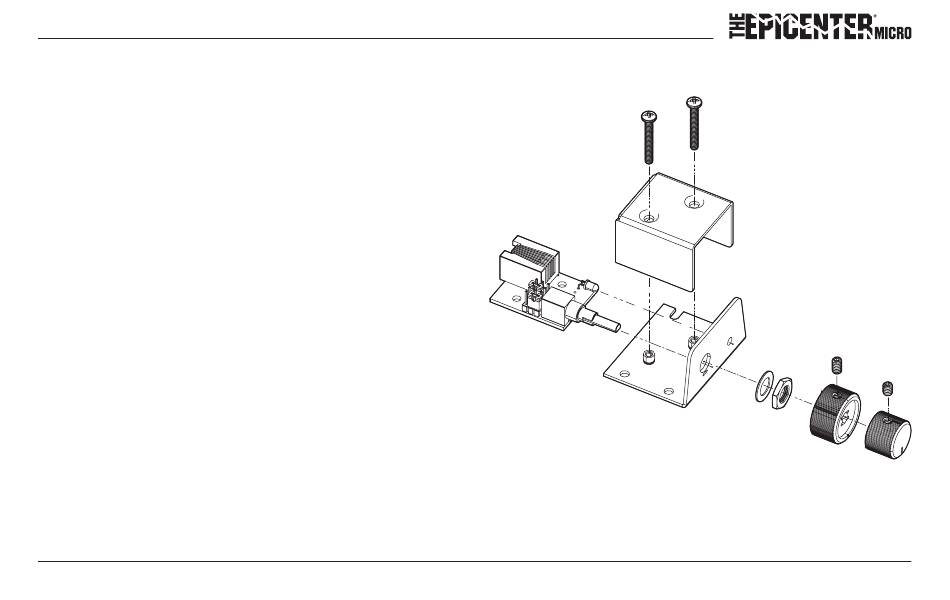

All the bits broken out for you!
