- Page 1 Hardware Installation Manual Edition 2c May 2008...
-
Page 2: Required Tools
Please follow the instructions in this manual to mount the vipPAQ on a press. This manual assumes that on both sides of the press, the area to mount vipPAQ is prepared. The 4 holes (2 on each side) do not need to be drilled yet. - Page 3 Hardware Installation Manual (Ed. 2c) 4 Cut the Mounting Bar If the mounting bar is not already precut to the correct length, proceed as followed: 1. Measure the exact distance (+/- 0.5 mm) between the foreseen mounting areas. 2. Subtract 82mm (3.23“) from the measured distance 3.
-
Page 4: Mounting Preparation
If these 2 holes are not yet drilled, proceed as followed: 1. Mount the 2 vipPAQ distance holders at the outer limits of the mounting bar. 2. Mount the bushings at both vipPAQ mounting plates 3. - Page 5 Hardware Installation Manual (Ed. 2c) Figure 1...
- Page 6 Hardware Installation Manual (Ed. 2c) 6 Mount the Mounting Plates Two M10 screws are used to fix each mounting plate in the correct position (see image below). Do not fully tighten up the screws, because the position will later be...
- Page 7 Hardware Installation Manual (Ed. 2c) 7 Mount the Mounting Bar 1. Insert the measurement head retainers at the lower small side of the mounting bar (Number of retainers is depending on amount of measurement heads, but at least 2 need to be inserted for the installation).
- Page 8 Hardware Installation Manual (Ed. 2c) 4. Insert the upper parts of the bushings and screwed them firmly in place. 5. The distance between the mounting bar and the mounting plates must be equal on both sides. The sideward movement of the bat needs also to be minimal and may not be too tight.
- Page 9 Hardware Installation Manual (Ed. 2c) 8 Position the Mounting Bar 1. Mount the distance holders (both sides) 2. Put the mounting bar in the measuring position and insert the measuring bolts (both sides). The mounting bar is in the correct position when the measuring bolts and distance holders touch the roller (both sides).

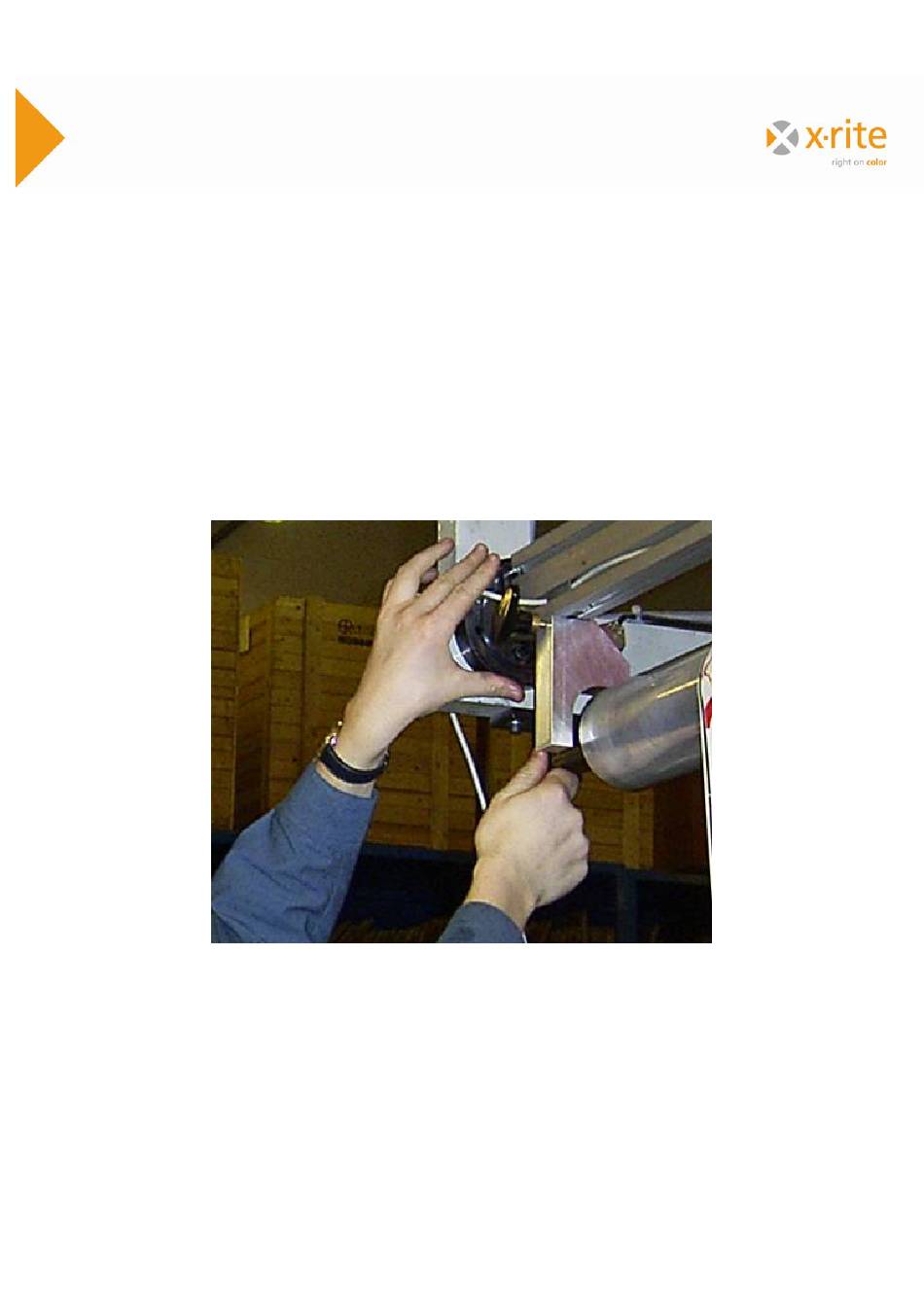

- Page 10 Hardware Installation Manual (Ed. 2c) 9 Completion 1. Mount the measuring heads 2. Adjust the position screws on the measurement head(s). With this the switch to lock/unlock the head upon the tilting of the measurement head gets adjusted). a. Loose slightly the screw beside the position screw (red arrow) b.
