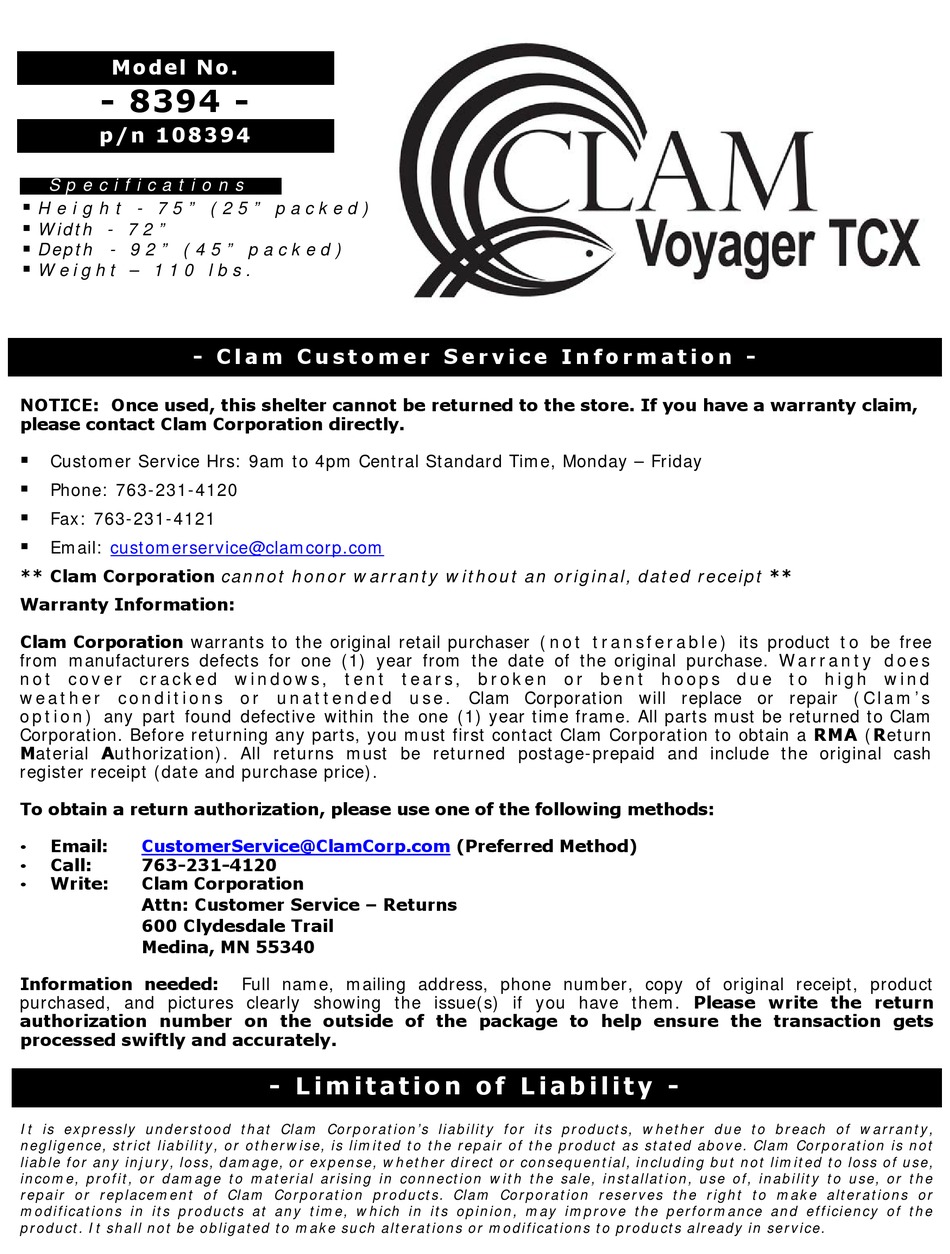

Model No.
- 8394 -
p/n 108394
S p e c i f i c a t i o n s
H e i g h t - 7 5 " ( 2 5 " p a c k e d )
Width - 7 2 "
Depth - 9 2 " ( 4 5 " p a c k e d )
W e i g h t – 1 1 0 l b s .
- C l a m C u s t o m e r S e r v i c e I n f o r m a t i o n -
NOTICE: Once used, this shelter cannot be returned to the store. If you have a warranty claim,
please contact Clam Corporation directly.
Customer Service Hrs: 9am to 4pm Central Standard Time, Monday – Friday
Phone: 763-231-4120
Fax: 763-231-4121
Email:
customerservice@clamcorp.com
** Clam Corporation cannot honor warranty without an original, dated receipt **
Warranty Information:
Clam Corporation warrants to the original retail purchaser ( n o t t r a n s f e r a b l e ) its product t o be free
from manufacturers defects for one (1) year from the date of the original purchase. W a r r a n t y d o e s
n o t c o v e r c r a c k e d w i n d o w s , t e n t t e a r s , b r o k e n o r b e n t h o o p s d u e t o h i g h w i n d
w e a t h e r c o n d i t i o n s o r u n a t t e n d e d u s e . Clam Corporation will replace or repair ( C l a m ' s
o p t i o n ) any part found defective within the one (1) year time frame. All parts must be returned to Clam
Corporation. Before returning any parts, you must first contact Clam Corporation to obtain a RMA (Return
Material Authorization). All returns must be returned postage-prepaid and include the original cash
register receipt (date and purchase price).
To obtain a return authorization, please use one of the following methods:
Email:
CustomerService@ClamCorp.com
Call:
763-231-4120
Write:
Clam Corporation
Attn: Customer Service – Returns
600 Clydesdale Trail
Medina, MN 55340
Information needed:
purchased, and pictures clearly showing the issue(s) if you have them. Please write the return
authorization number on the outside of the package to help ensure the transaction gets
processed swiftly and accurately.
It is expressly understood that Clam Corporation's liability for its products, whether due to breach of warranty,
negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam Corporation is not
liable for any injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss of use,
income, profit, or damage to material arising in connection with the sale, installation, use of, inability to use, or the
repair or replacement of Clam Corporation products. Clam Corporation reserves the right to make alterations or
modifications in its products at any time, which in its opinion, may improve the performance and efficiency of the
product. It shall not be obligated to make such alterations or modifications to products already in service.
Full name, mailing address, phone number, copy of original receipt, product
- L i m i t a t i o n o f L i a b i l i t y -
(Preferred Method)

Advertisement

loading

Summary of Contents for Clam 8394

  • Page 1 . Clam Corporation will replace or repair ( C l a m ’...
  • Page 2 - P a r t s L i s t - ITEM NO. PART NUMBER DESCRIPTION QTY. 102738 BASE, VOYAGER TCX 102739 HOOP POLES 101810 HOOP BRACKET 101081 WASHER, 1/4 FLAT 101082 NUT, 1/4-20 THIN NYLOCK 101906 SCREW, 1/4-20 X 2.50 101088 SCREW, 1/4-20 X 0.75 101208...
  • Page 4 Install rail hanger brackets Install right & left canopy (Item #13) brackets (Item #3) Assemble seat mount tubes (Item 11). Rail hanger brackets were installed to the base in step 1.
  • Page 5 Seat mount tube assemblies and seat swivel now mounts to rail hanger brackets installed on base. Install seat swivel (item 18) to seat mount tubes. Install seat mount tubes to rail hanger brackets Rotate swivel as shown for ease of installation. Install seat assemblies (item 19) to the swivel.
  • Page 6 Install straight & bent hoop support poles(items 15 & 16). The push buttons face forward on the straight poles and upward on the bent poles. Install RPS (Rapid Pole System) push buttons (item snapping them in the correct position as shown.
  • Page 7 Install hoop poles (item 2). Install back slip cover Install bottom slip cover Seat covers installed (item 22). (item 21).
  • Page 8 Extend the hoop poles until the spring buttons engage the holes near the ends of each hoop support pole. The poles will be fully extended. Support the hoop poles as pictured with the spreader poles to create a skeleton of the shelter.
  • Page 9 Rear adjustable spreader pole (item 25) Front adjustable spreader pole (item 26) Front hoop sleeves Front hoop Velcro Drape the tent over the supported hoops, then go inside and attach the roof Velcro straps. Remove the front adjustable spreader pole (item 26) and remove the front hoop pole. Turn the front hoop pole so that the holes face upward and then feed the length of the pole through the hoop sleeves sewn on the tent.
  • Page 10 - S t e p E l e v e n - To “set” the tent, grasp the tent material at the rear of the shelter and pull it downward. Observe the front fishing area of the tent lifting accordingly as you pull. When the V-Channel molding is correctly installed, the porch hoop pole will lightly touch the floor.
  • Page 11 - T i p s f o r U s e - Folding and transporting your Clam Ice Fishing shelter is easy: ▪ Unsnap all of the spreader poles and lay them in the bottom of the base. ▪ Push the Rapid Pole System push buttons and retract each hoop, starting with the two floor hoops and working towards the middle.
