- Page 1 STEREO AMPLIFIER USER MANUAL Revision 0, September 2021...
- Page 3 This manual comprises introducing information on the use and performance of this device. For more information, please visit https://www.audialonline.com/a20/, or send your questions to info@audialonline.com. IMPORTANT! 1. This manual is a guide only. 2. Do not expose this device to rain or moisture, excessive heat, or mechanical force.
- Page 4 The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
-
Page 5: Warranty

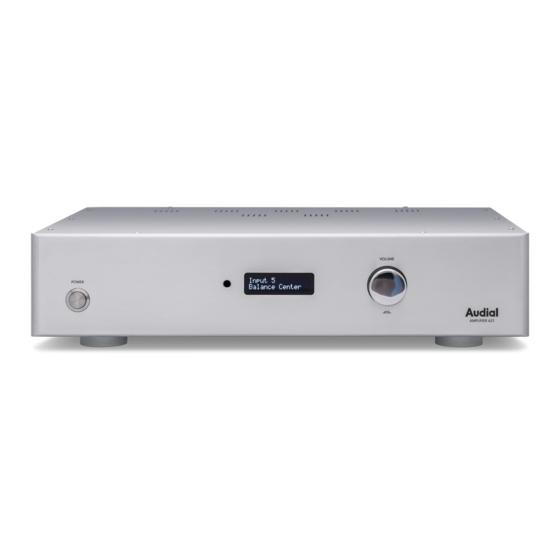

There are five RCA line input connectors, and its unit with the new one. impedance is 45 kOhm, so the A20 is a friendly load for the majority of sources. For the units sold directly by Audial, the invoice is also a guarantee certificate. - Page 6 VOLUME POWER AMPLIFIER A20 A20 front plate From left to right: Power switch, display, control knob. SPEAKERS INPUTS 0-2 0VAC 50-60Hz PRE-OUT AMPLIFIER A20 # A01-xx21 MADE IN SERBIA DO NOT OPEN! FUSE T3 A20 back plate From left to right: Pre-out, line inputs, loudspeakers outputs, mains connector.
-
Page 7: Specifications
Correct, for both the loudspeakers and pre-out MAINS VOLTAGE: 220-240VAC/50-60Hz, or 110-120VAC/50-60Hz, or 100 VAC/50-60Hz DIMENSIONS (W x D x H): 426 x 280 x 92 mm, including feet, but excluding the knob and connectors WEIGHT: Approx. 6Kg Audial A20... - Page 8 Copyright © 2021...
