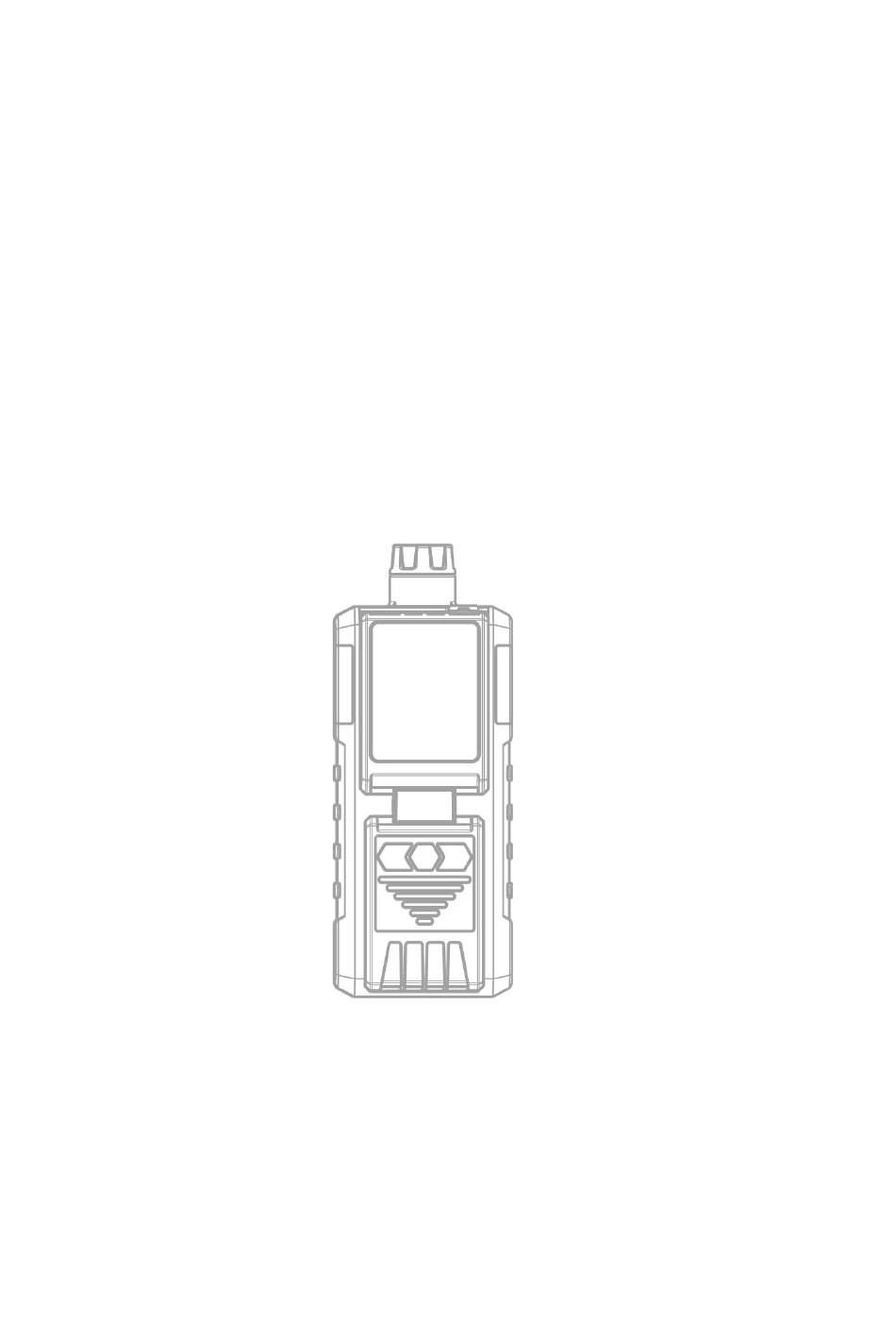

- Page 1 K-600 Portable Multi-gas Detector with Built-in Pump User Manual Ver： BSA20180501001 Bosean Electronic Technology Co.,Ltd ISO9001-2008...
- Page 2 Bosean Electronic Technology Co.,Ltd www.bosean.com Brief Introduction K-600 portable multi-gas detector with built-in pump is a new intelligent gas detector, which adopts an advanced integrated circuit, with standard intelligent level design technology, and proprietary digital analog hybrid communication technology. The detector is of excellent sensitivity and repeatability, which makes it very easy to use and maintain.

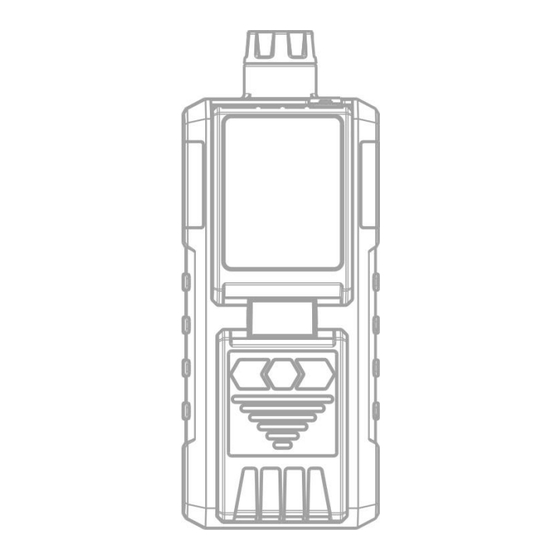

- Page 3 Bosean Electronic Technology Co.,Ltd www.bosean.com 2. Structure & Function 2.1 Appearance Built-in pump gas inlet Button Buzzer LCD screen 2.2 Detector structure: the main shell, circuit boards, batteries, display, sensors, chargers of the components. 2.3 Principle: Electrochemical or Catalytic or PID’s or infrared sensor or VOC’s sensor.
- Page 4 Bosean Electronic Technology Co.,Ltd www.bosean.com Gas sampling method: Gas pump sampling Detecting gas: Combustible gas, H2S, CO, O2 Accuracy: ≤±5% F.S. Response Time: ≤30s Indication: LCD displays real-time and system status; LED, audio and vibration alert for gas leakage, fault and low voltage, pump working state.
- Page 5 Bosean Electronic Technology Co.,Ltd www.bosean.com 4.2 Turn off Under the detector is in the normal detection state, press button, the LCD screen will prompt the user to shut down the interface as shown in Figure 2. The user selects whether to shut down through button.
- Page 6 Bosean Electronic Technology Co.,Ltd www.bosean.com 4.3.1when gas detector detects the gas less than the low alarm ( Mark: for oxygen, between the low alarm and high alarm value), g as detector is under normal detecting state, no alarm at this time.
- Page 7 Bosean Electronic Technology Co.,Ltd www.bosean.com time the buzzer emits “beep,beep,… every 0.25s” . the red indicator light flashes synchronously, and the color of the gas concentration value changes to red on the screen. The backlight and the vibrator also open at the same time, indicating the high alarm;...
- Page 8 Bosean Electronic Technology Co.,Ltd www.bosean.com types, battery power, current date. Note: The above alarm sounds can be manually cleared by pressing the key. After clearing, the alarm information is still displayed normally; if the detector triggers the alarm again, the corresponding alarm sound information can be sent again.
- Page 9 Bosean Electronic Technology Co.,Ltd www.bosean.com alarm record interface, the record content includes the type of alarm sensor, enter the corresponding sensor to display the alarm value, alarm time, as shown in Figure 7: This function can view the gas alarm history.
- Page 10 Bosean Electronic Technology Co.,Ltd www.bosean.com 4.4.2 Detector menu settings In the normal detection mode, press to enter the menu, then press to select the shut down setting,alarm point, alarm record calibration zero, calibration, time setting and system reset. These function menus can be displayed cyclically and can be selected by cursor movement.
- Page 11 Bosean Electronic Technology Co.,Ltd www.bosean.com Enter the calibration interface to calibrate the four Calibration sensors. Date time Set the current date and time setting System Enter the password "1111" for factory reset reset The menu function is as follows: Alarm Settings Select alarm settings under the menu interface，...
- Page 12 Bosean Electronic Technology Co.,Ltd www.bosean.com Zero calibration and calibration Select Zero calibration under the menu interface, press the button ,Take the natural gas for example, as the picture 11 shows,press the button to edit, after finishing it, press the fig11 to save it.press the button...
- Page 13 Bosean Electronic Technology Co.,Ltd www.bosean.com 1. Press the button enter the feature menu, moves the cursor to system settings by pressing , as the picture 8 shows. Enter system settings by pressing , as the picture 14 shows fig14 fig15 2.
- Page 14 Bosean Electronic Technology Co.,Ltd www.bosean.com 3. Clear record Use the to clear record, press to enter the input password interface, like picture 18 shows, the password is “1111”, enter the clear password judgment, as picture 19 shows. fig18 fig19 4. System information...
- Page 15 Bosean Electronic Technology Co.,Ltd www.bosean.com 6. backlight settings press the select backlight settings, and press the enter the backlight settings interface. As the picture 22 shows. fig 22 7.Air pump setting fig23 4.4.4. Alarm information The following table shows the details of each alarm:...
- Page 16 Bosean Electronic Technology Co.,Ltd www.bosean.com 4.5. Charging Please charge the detector when it shows low battery or the detector can’t be turned on due to low battery. Before charging, please turn off the detector. After you connect the charger correctly between the detector and AC power source, the detector will be turned on automatically.
- Page 17 Bosean Electronic Technology Co.,Ltd www.bosean.com Inaccurate Sensor is overdue Please contact the indication manufacturer or dealer to replace the gas senor Uncalibrated for long Please calibrate it in time time Fault indication Battery voltage is Please charge it and reset...
- Page 18 Bosean Electronic Technology Co.,Ltd www.bosean.com sunshine. 6.5 If there is dust on the surface of the detector after a long-term use, please clean it lightly with clean soft cloth. The surface may be scraped or destroyed with caustic solvent or hard things.
- Page 19 Bosean Electronic Technology Co.,Ltd www.bosean.com Appendix Range L-alarm H-alarm 0-100%LEL 20%LEL 50%LEL C3H8 0-100%LEL 20%LEL 50%LEL 0-100%LEL 20%LEL 50%LEL 0-1000ppm 35ppm 250 ppm 0-100ppm 10ppm 15ppm 0-100ppm 10ppm 20ppm 0-1000ppm 35ppm 200ppm 0-1000ppm 30ppm 60ppm C2H4O 0-20ppm 10ppm 15ppm C2H4...
