Summary of Contents for Kill Shot Tree-Hoist

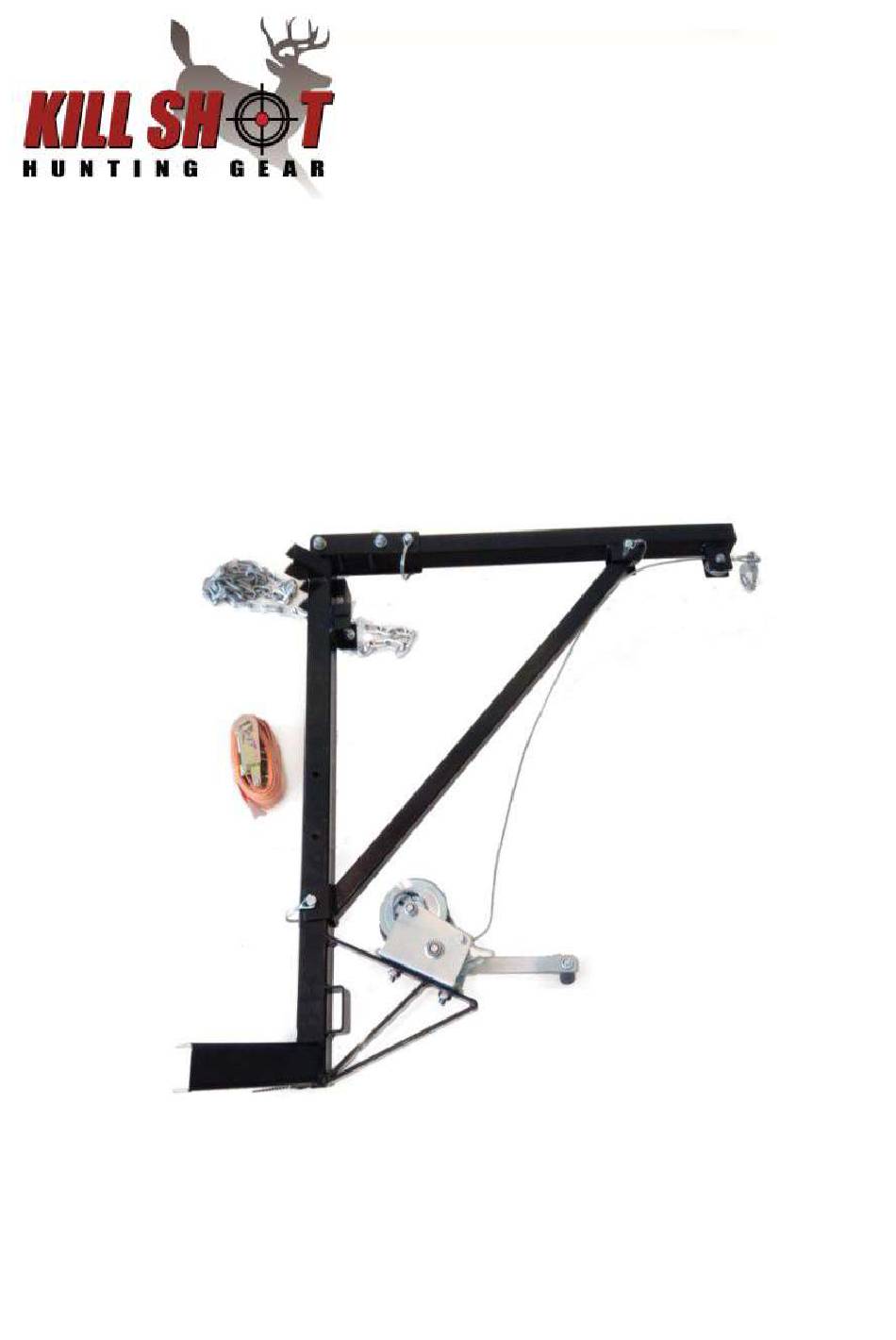

- Page 1 Tree Mounted Game Hoist Item #: Tree-Hoist...
- Page 2 Parts List Part Description Part Description Arm Support D-Shape Pin Clip Center Support(with Pulley Chain) Diagonal Support M8 Bolt, Washer, Locknut 1 set Winch M10 Bolt, Washer, Locknut 2 sets Belt Stretcher CAUTIONS AND WARNINGS Confirm all parts are present before assembly. If any part is missing, cracked or damaged, please contact Sportsman’s Guide customer service before assembly Read and understand all warnings, cautions, assembly, installation and use instructions prior to assembling, installing or using this product.
- Page 3 • Do not exceed the working load limit of 300 pounds (136 kg). The manual crack is rated to 660 pounds (299 kg). Be aware of dynamic loading! Sudden load movement may briefly create excess load causing product failure. • Do not install in a location that could pose a safety hazard. •...
- Page 4 Step 3 Install the Winch (D) to the bottom of the Center Support (B), use the two bolt sets (I). Assembly Tip: Unwind all of the winch cable from the spool when installing the winch. This will provide additional clearance for your hand and/or wrench making installation easier.
