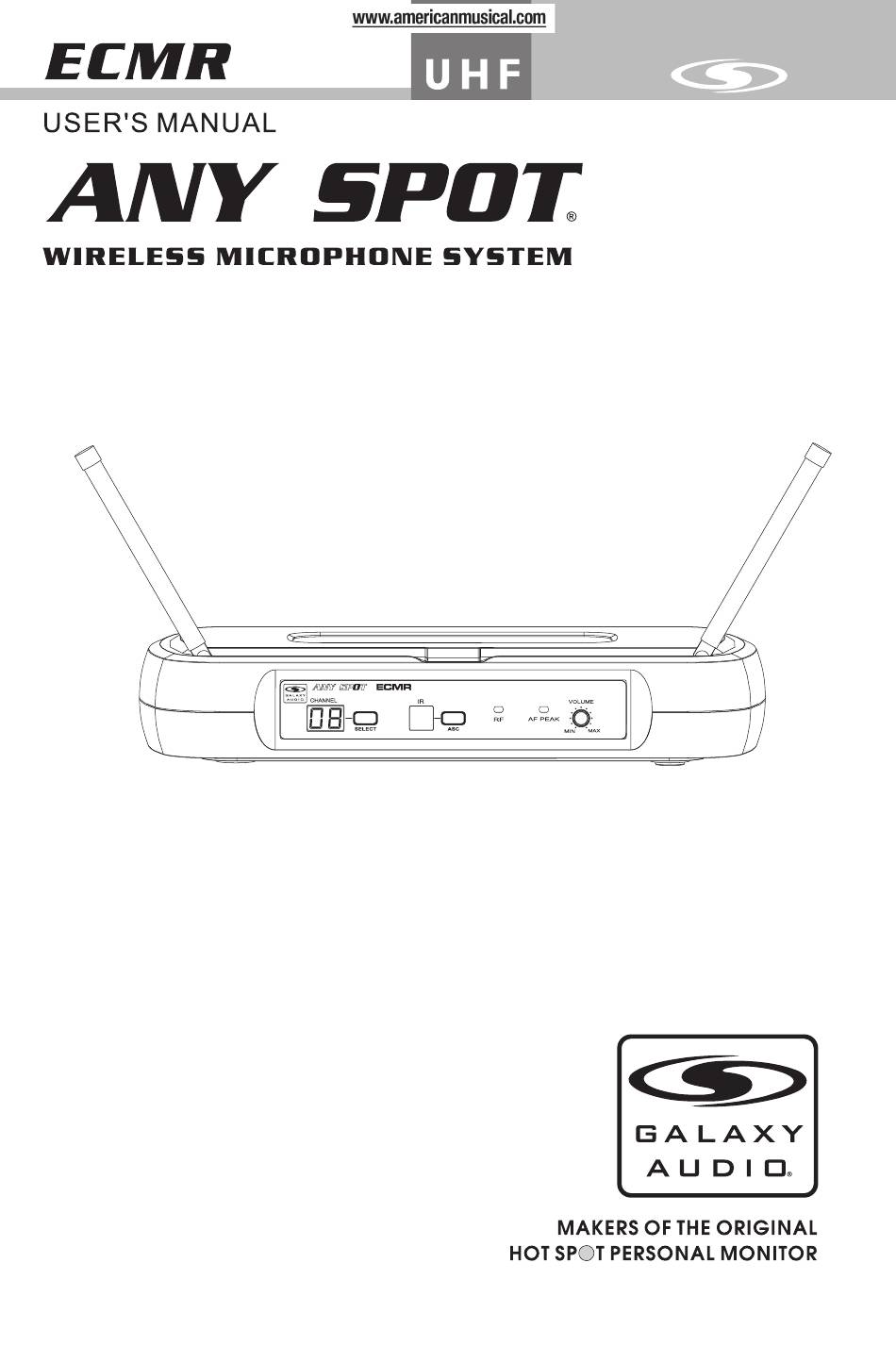

American Musical ANY SPOT ECMR User Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ANY SPOT ECMR and is the answer not in the manual?

Questions and answers

Summary of Contents for American Musical ANY SPOT ECMR

  • Page 3 Channel Display. RF Signal LED Displays selected Channel. Audio LED. Indicates a peak Channel select button Audio Signal. IR Window. Audio Output Level Control. Unit sends Infrared Signal to the Transmitter Left turn for Output Level Decrease, through this Window for Frequency right turn for Output Level Increase.
  • Page 4 Microphone Head. Gain (Sensitivity) Control. Turn Left to Decrease Sensitivity. Turn Right to Increase Sensitivity. RF Power Level Switch. H for High Level RF Power. L for Low Level RF Power. IR Window. Receives Infrared signal to synchronize frequencies between Receiver and Transmitter. Battery Tray.
  • Page 5 Antenna. Input Gain Switch. There are three Gain settings. Select the setting most suitable to your application. Mic.: Microphone Level. 0: Guitar Level. -10dB: Line Level. Power/Low Battery/IR Transmission LED. Green: Power On, Batteries OK. Flashing Red: Low Batteries. Flashing Green: IR transmission in Progress. 3-pin Input Jack.

  • Page 6: Receiver Volume Control

    ECMR Receiver Setup: Channel Selection Press channel Selector button to select desired Channel. When switching Channels, wait for the Channel number display to stop blinking before using the ASC function. For best results when operating multiple systems, set every channel to achieve the maximum distance between channels.

  • Page 7: Handheld Transmitter

    System Handheld Transmitter: Available Channels: 16 Max Audio input level: 0dBV Frequency Range: 655 - 679 MHZ Transmitter Output level 10 dBm Gain (Sensitivity): Control High/Low RF power switch. Band: UHF Dimensions: 9.8" x 2.1" dia. (250mm x 53mm dia.) Weight: 9.5oz (270 g) (without batteries) Operating Range Under Typical Conditions: 150' (50m)
  • Page 8 A RETURN AUTHORIZATION (RA) NUMBER MUST BE OBTAINED from Galaxy Audio prior to any items being returned to Galaxy Audio for return or repair. Contact customer service @ (800)369-7768. Galaxy Audio warrants the materials and workmanship of its products as follows: A limited THREE YEAR Warranty applies to the following products: Galaxy Audio warrants the materials and workmanship of its products as follows: A limited THREE YEAR Warranty applies to the following products:...
