GPX PJS709 User Manual

Please read through this user guide before utilizing the screen.
Correct usage and maintenance will ensure a long product life.
Care & User Instructions
• Please be sure to distinguish between the front and back of the screen fabric when setting up the
projection screen. CineWhite (front projection) has a black backing and Wraith Veil (rear projection)
TM
is labeled front, back.
• Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the
points below to prevent that from occurring:
1. Do not touch the projection surface with your hands
2. Do not write or draw on the projection surface
3. Do not use fingers or sharp objects to point on the projection surface; this will damage the screen
material.
4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or alcohol.
5. Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.
• After using the screen, disassemble it and store it in the carrying bag provided.
• To avoid damage and injury, the screen should only be operated by adults.

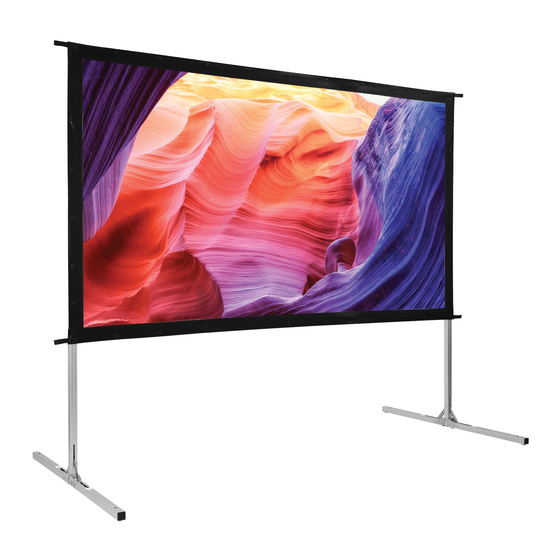

Product Description

Design: The aluminum frame is designed to be light weight and easily operated making it easy to carry,
assemble and disassemble.
Screen Fabric: The screen fabric is attached to the rectangular frame and held in place by several press
studs, which ensure an evenly stretched and flat surface. The CineWhite TM (front projection) and
WraithVeil (rear projection) screen materials are durable and can be folded many times without causing
damage or distortion to the surface.

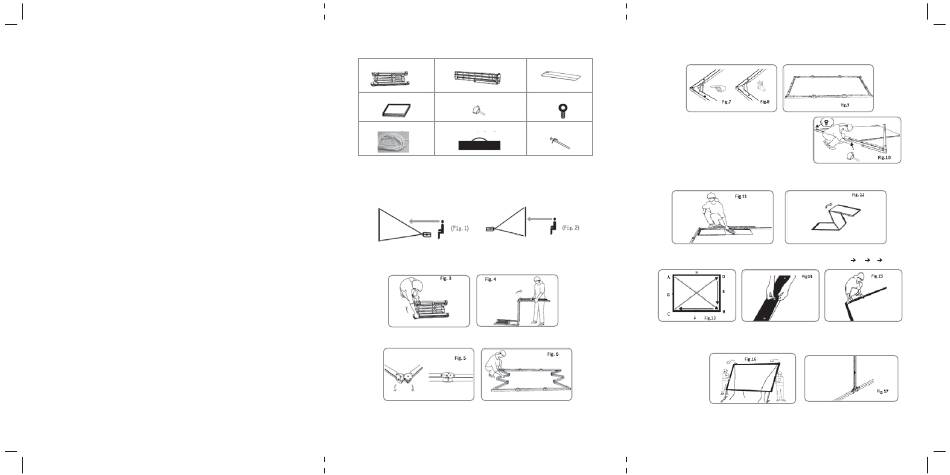

Parts Diagram

A. Folding frame x 1 B. Left and right folding legs x 2
D. Projection screen material x 1 E. Knob screw x 2
G. Rope x 2 H. Carrying Bag x 1
Note: The parts list above is subject to change without notice.
Correct usage of the projection screen will ensure better viewing results.
For front projection, assemble and view the screen as indicated in Fig. 1
For rear projection, assemble and view the screen as indicated in Fig. 2

Frame Assembly and Screen Material Attachment

1. Take the folding frame (A) out of the carrying bag (H) and place it on a flat surface. Unfold the longer
sections first as shown in Fig. 3-4.
2. Unfold the frame until the latch on the hinge " clicks" into place. Repeat the procedure for the shorter
sections. (Fig. 5-6)
1
3. Make sure all 4 corners of the frame are at a 90° angle and the hinged support bar is straight and not
bending. (Fig. 7-9)
C. Screen material bag x 1
F. Eye bolt x 2
4. Insert the frame legs (B) into the openings locted at the left and
I. Stake x 4
right bottom sides of the folding frame (A). Secure them by
fastening the knob screw (E) into the adjacent hole. Next, screw
the eye bolts (F) into the openings located at the top of the
frame (Fig. 10).
5. Take the screen material (D) out of the screen material bag (C) and align the corners of the screen
material with the inside corners of the frame. Unfold as shown in the diagram (Fig. 11-12)
6. Once the screen material (D) is fully extended, secure the material by snapping the buttons onto the
frame studs as shown in Fig. 13-15. Fasten the buttons in the following order AB CD EF GH.
7. Tie 2 pieces of rope (1 on the left and 1 on the right) to the eye bolts (F) that are located at the top of the
frame. Next, lift the screen up while simultaneously opening the frame legs. Two people are needed for
this step. Fig. 16-17
2 3
